RT7285 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

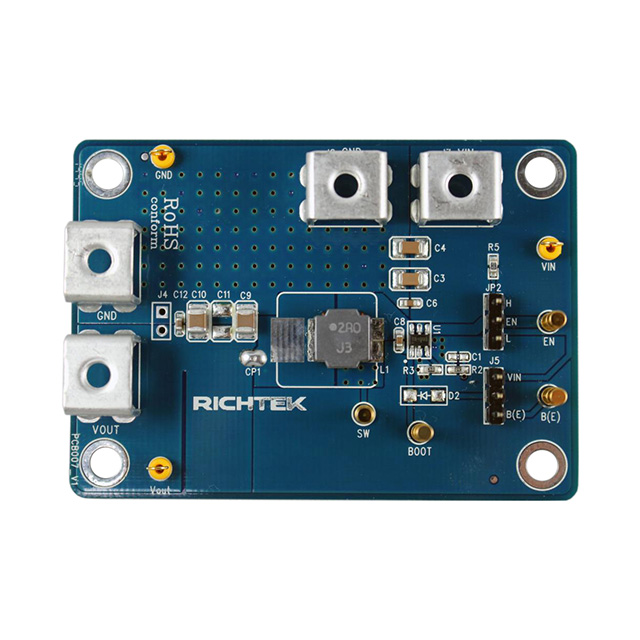

EVAL MODULE FOR RT7285CGJ6
| Part | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Utilized IC / Part | Main Purpose | Current - Output | Voltage - Input [Max] | Voltage - Input [Min] | Regulator Topology | Voltage - Output | Frequency - Switching | Contents | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Min/Fixed) | Voltage - Output (Max) [Max] | Output Configuration | Function | Voltage - Input (Max) [Max] | Supplier Device Package | Mounting Type | Output Type | Synchronous Rectifier | Package / Case | Number of Outputs | Topology | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Fully Populated | RT7285C | DC/DC Step Down | 1.5 A | 18 V | 4.3 V | Buck | 1.2 V | 500 kHz | Board(s) | |||||||||||||||
 Richtek USA Inc. | 1.5 A | 500 kHz | 85 C | -40 ¯C | 0.6 V | 8 V | Positive | Step-Down | 18 V | TSOT-23-6 | Surface Mount | Adjustable | SOT-23-6 Thin TSOT-23-6 | 1 | Buck | 4.3 V |
