AMP MR Series
Manufacturer: TE Connectivity AMP Connectors
Catalog
HIGH CURRENT HSG 9 POS ROHS COMPLIANT: YES
| Part | Note | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Card Thickness | Card Thickness | Color | Material - Insulation | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Card Type | Features | Pitch | Pitch | Mounting Type | Contact Finish | Type | Height [z] | Height [z] | Gender | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Voltage Rating | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Thickness [Min] | Connector Type | Connector Usage | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Contacts Not Included | -40 C | 95 °C | UL94 V-0 | 1.57 mm | 0.062 in | Natural | Polyester Thermoplastic Glass Filled | 0.156 " | 3.96 mm | 18 | Non Specified - Dual Edge | Flange | 0.312 in | 7.92 mm | Panel Mount | ||||||||||||||||||
TE Connectivity AMP Connectors | 1.57 mm | 0.062 in | Natural | Polyester Thermoplastic Glass Filled | 0.156 " | 3.96 mm | 8 | Non Specified - Dual Edge | Flange | 0.312 in | 7.92 mm | Panel Mount | ||||||||||||||||||||||
 TE Connectivity AMP Connectors | UL94 V-0 | Black | 0.1 " | 2.54 mm | Gold | Open Top | 0.247 in | 6.27 mm | Female Sockets | 1 x 2 | 2 | Polyester Glass Filled | 0.38 µm | 15 µin | 250 VAC | |||||||||||||||||||
TE Connectivity AMP Connectors | Black | Polyester Thermoplastic Glass Filled | 0.128 " | 3.25 mm | 20 | Non Specified - Dual Edge | Flange | 0.156 in | 3.96 mm | Panel Mount | 1.4 mm | 0.07 in | 1.78 mm | 0.055 in | ||||||||||||||||||||
 TE Connectivity AMP Connectors | ||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | UL94 V-0 | Yellow | 0.1 " | 2.54 mm | Gold | Open Top | 0.247 in | 6.27 mm | Female Sockets | 1 x 2 | 2 | Polyester Glass Filled | 0.76 Ám | 30 Áin | 250 VAC | |||||||||||||||||||

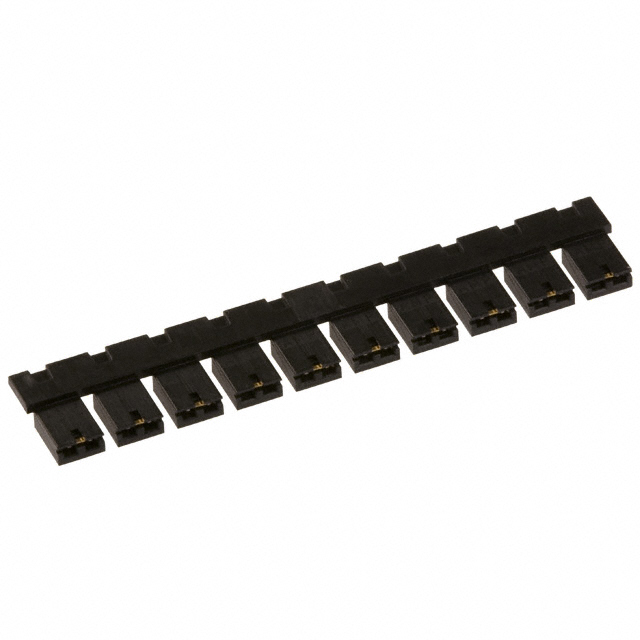

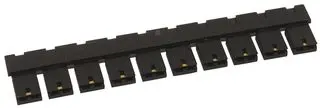

TE Connectivity AMP Connectors | UL94 V-0 | Black | 0.1 " | 2.54 mm | Gold | Open Top | 0.247 in | 6.27 mm | Female Sockets | 1 x 2 | 2 | Polyester Glass Filled | 0.38 µm | 15 µin | 250 VAC | |||||||||||||||||||
 TE Connectivity AMP Connectors | UL94 V-0 | Black | 0.1 " | 2.54 mm | Gold | Open Top | 0.247 in | 6.27 mm | Female Sockets | 1 x 2 | 2 | Polyester Glass Filled | 0.76 Ám | 30 Áin | 250 VAC | |||||||||||||||||||

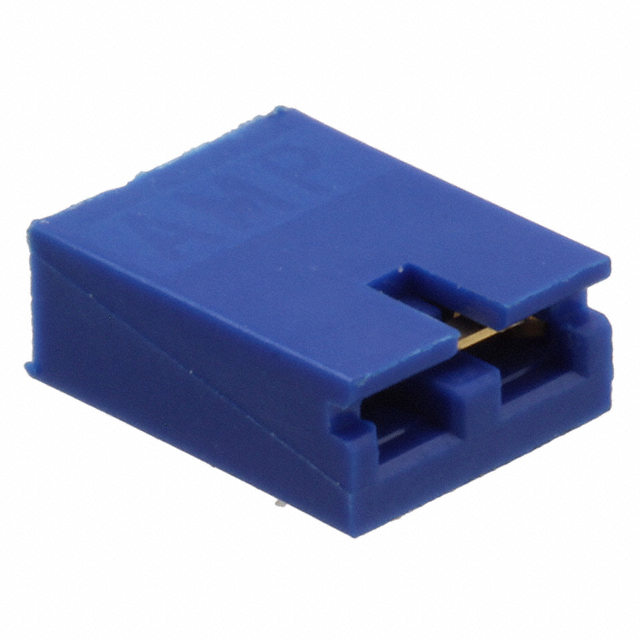

 TE Connectivity AMP Connectors | UL94 V-0 | Blue | 0.1 " | 2.54 mm | Gold | Open Top | 0.247 in | 6.27 mm | Female Sockets | 1 x 2 | 2 | Polyester Glass Filled | 0.76 Ám | 30 Áin | 250 VAC | |||||||||||||||||||
TE Connectivity AMP Connectors | Contacts Not Included | Black | 10 | Housing for Female Sockets | Receptacle | 1 |
