TR9CI1500 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 36W

Part	Approval Agency	No Load Power Consumption	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Input Connector	Region Utilized	Cord Length	Cord Length	Power (Watts)	Polarization	Input Type	Output Connector	Standard Number	Form	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Output	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Output Connector [diameter]	Output Connector [x]

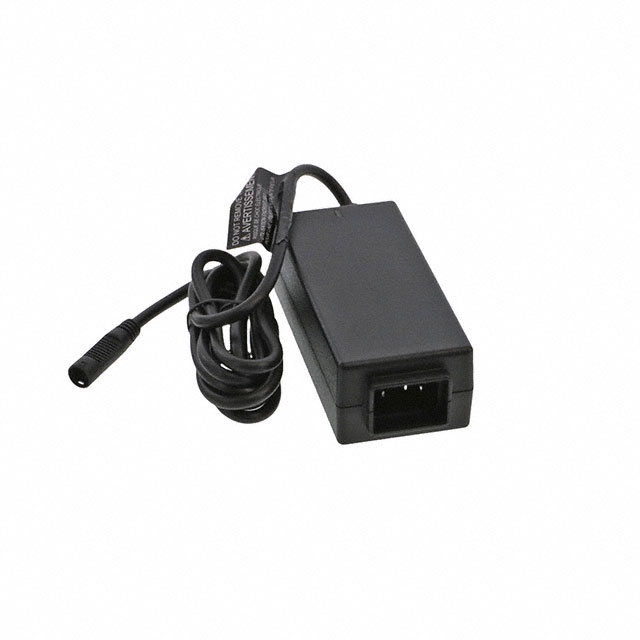

GlobTek, Inc. TR9CI1500T00-IMR6B	CB CCC CE EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	75 mW	CoC Tier 2 Level VI	264 VAC	90 VAC	Household Appliances ITE (Commercial) Medical	IEC 320-C14	International	1.5 m	59 in	36 W	Negative Center	Cord (Sold Separately)	Barrel Plug Kit (1.3mm x 3.5mm	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Desktop (Class I)	40 °C	-10 °C	1.5 A	24 V	1.4 "	1.97 in	113.3 mm	50 mm	4.46 in	35.5 mm

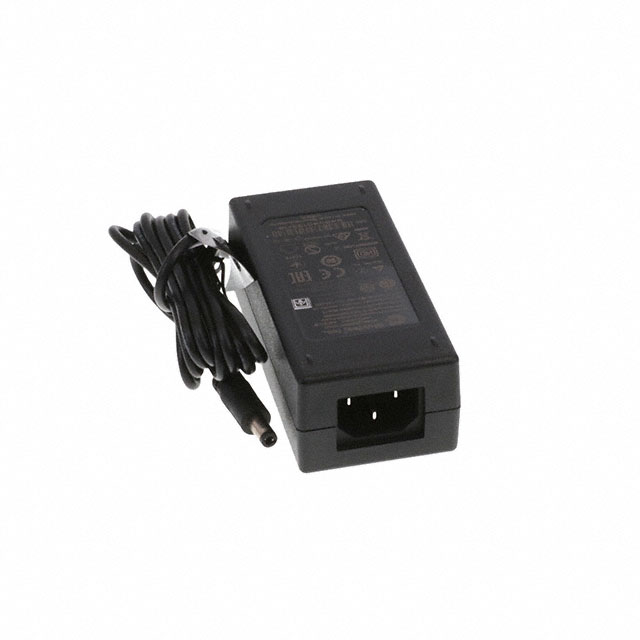

GlobTek, Inc. TR9CI1500LCPIMR6B	CB CCC CE EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	75 mW	CoC Tier 2 Level VI	264 VAC	90 VAC	Household Appliances ITE (Commercial) Medical	IEC 320-C14	International	1.53 m	60.2 in	36 W	Positive Center	Cord (Sold Separately)	Barrel Plug	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Desktop (Class I)	40 °C	-10 °C	1.5 A	24 V	1.4 "	1.97 in	113.3 mm	50 mm	4.46 in	35.5 mm	2.5 mm 5.5 mm	11 mm

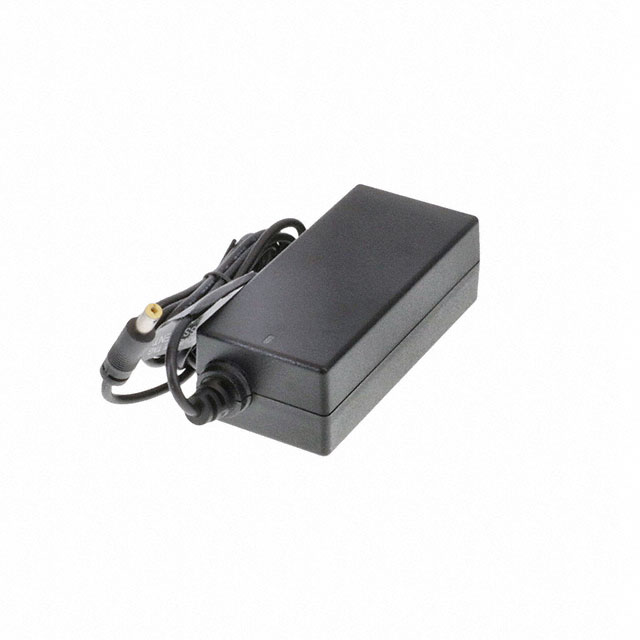

GlobTek, Inc. TR9CI1500CCPIMR6B	CB CCC CE EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	75 mW	CoC Tier 2 Level VI	264 VAC	90 VAC	Household Appliances ITE (Commercial) Medical	IEC 320-C14	International	1.5 m	59 in	36 W	Positive Center	Cord (Sold Separately)	Barrel Plug	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Desktop (Class I)	40 °C	-10 °C	1.5 A	24 V	1.4 "	1.97 in	113.3 mm	50 mm	4.46 in	35.5 mm	2.1 mm 5.5 mm	11 mm
