9L26016 Series
Manufacturer: Belden Inc.
Beta
⌘K

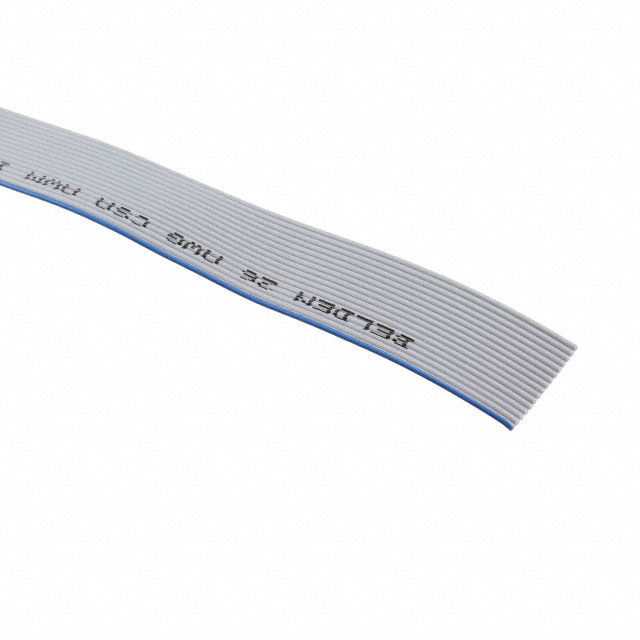

CBL RIBN 16COND 0.05 GRAY 100'
| Part | Current Rating (Amps) | Conductor Material | First Conductor Mark | Insulation Resistance | Wire Gauge | Ribbon Thickness | Ribbon Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Shielding | Ratings | Length | Length | Number of Conductors | Jacket (Insulation) Material | Pitch | Pitch | Ribbon Width [custom] | Ribbon Width [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 1.5 A | Copper Tinned | Blue | 10 GOhm | 26 AWG | 0.039 in | 0.99 mm | 7 | 34 AWG | 300 VDC | Unshielded | UL Style 2651 | 100 ' | 30.48 m | 16 | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | 20.32 mm | 0.8 in | -40 C | 105 ░C | Gray | Flat Cable |
