717-024 Series
Manufacturer: EDAC Inc.
Beta
⌘K

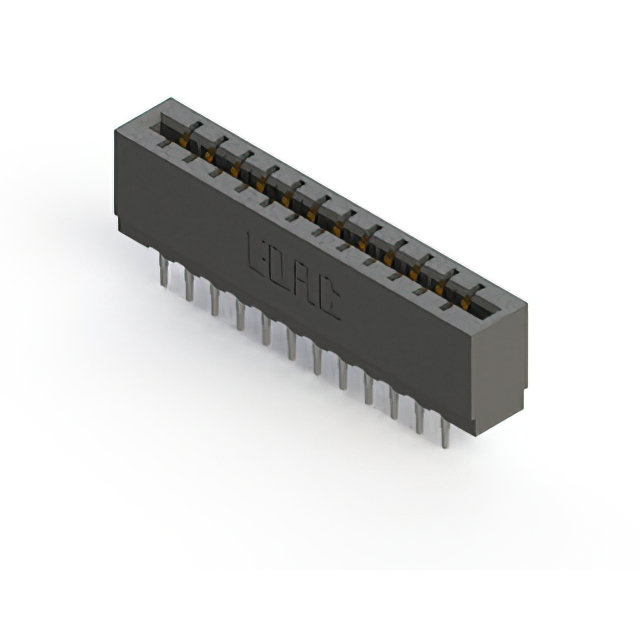

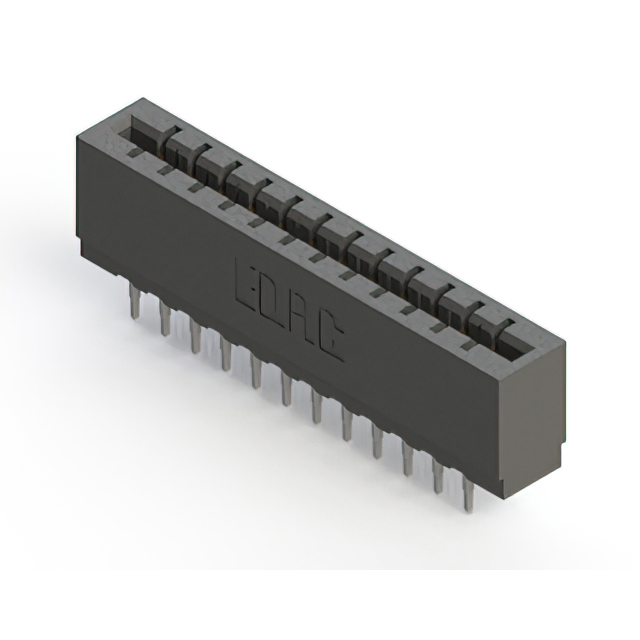

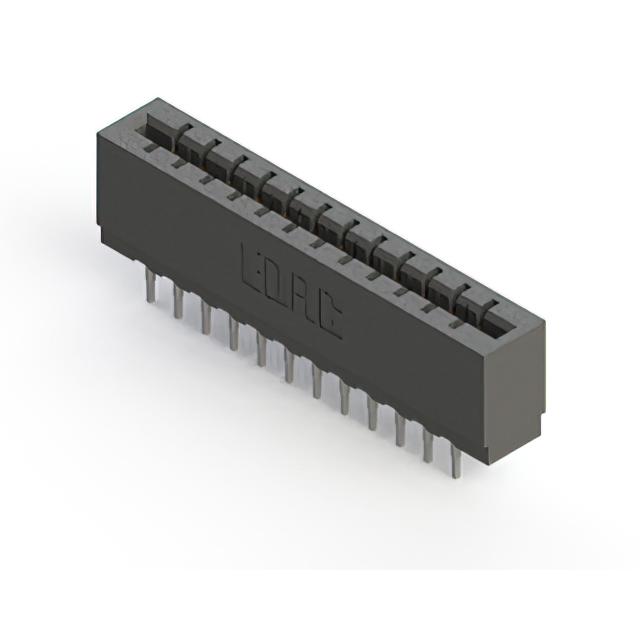

CONN EDGE DUAL FMALE 24POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Termination | Number of Positions/Bay/Row | Contact Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Color | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Read Out | Number of Rows [custom] | Number of Positions | Contact Material | Pitch | Pitch | Mounting Type | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Press-Fit | 12 | Cantilever | Female | 30 Áin | 0.76 Ám | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Dual | 2 | 24 | Copper Alloy | 3.96 mm | 0.156 in | Through Hole | Non Specified - Dual Edge | -40 C | 105 ░C | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Press-Fit Wire Wrap | 12 | Cantilever | Female | 30 Áin | 0.76 Ám | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Dual | 2 | 24 | Copper Alloy | 3.96 mm | 0.156 in | Through Hole | Non Specified - Dual Edge | -40 C | 105 ░C | ||
 EDAC Inc. | Polyester Thermoplastic | Press-Fit Wire Wrap | 24 | Cantilever | Female | 30 Áin | 0.76 Ám | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | 24 | Copper Alloy | 3.96 mm | 0.156 in | Through Hole | Non Specified - Single Edge | -40 C | 105 ░C | 1 | 1 | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Press-Fit | 12 | Cantilever Make Before Break | Female | 30 Áin | 0.76 Ám | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Dual | 2 | 24 | Copper Alloy | 3.96 mm | 0.156 in | Through Hole | Non Specified - Dual Edge | -40 C | 105 ░C | ||
 EDAC Inc. | Polyester Thermoplastic | Press-Fit Wire Wrap | 24 | Cantilever | Female | 30 Áin | 0.76 Ám | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | 24 | Copper Alloy | 3.96 mm | 0.156 in | Through Hole | Non Specified - Single Edge | -40 C | 105 ░C | 1 | 1 | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Press-Fit | 12 | Cantilever | Female | 30 Áin | 0.76 Ám | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Dual | 2 | 24 | Copper Alloy | 3.96 mm | 0.156 in | Through Hole | Non Specified - Dual Edge | -40 C | 105 ░C | ||
 EDAC Inc. | Polyester Thermoplastic | Press-Fit Wire Wrap | 24 | Cantilever | Female | 30 Áin | 0.76 Ám | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | 24 | Copper Alloy | 3.96 mm | 0.156 in | Through Hole | Non Specified - Single Edge | -40 C | 105 ░C | 1 | 1 | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Press-Fit Wire Wrap | 12 | Cantilever | Female | 30 Áin | 0.76 Ám | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Dual | 2 | 24 | Copper Alloy | 3.96 mm | 0.156 in | Through Hole | Non Specified - Dual Edge | -40 C | 105 ░C | ||
 EDAC Inc. | Polyester Thermoplastic | Press-Fit | 24 | Cantilever | Female | 30 Áin | 0.76 Ám | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | 24 | Copper Alloy | 3.96 mm | 0.156 in | Through Hole | Non Specified - Single Edge | -40 C | 105 ░C | 1 | 1 | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Press-Fit | 12 | Cantilever | Female | 30 Áin | 0.76 Ám | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Dual | 2 | 24 | Copper Alloy | 3.96 mm | 0.156 in | Through Hole | Non Specified - Dual Edge | -40 C | 105 ░C |
