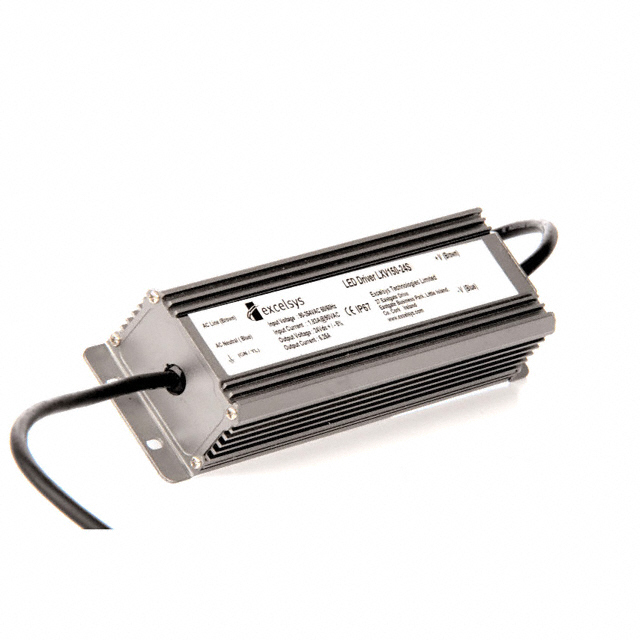

LXV150 Series

Catalog

LED DRIVER CV AC/DC 12V 12.5A

Part	Mounting Type	Weight [custom]	Weight [custom]	Voltage - Input (Max) [Max]	Topology	Voltage - Output	Voltage - Input (Min) [Min]	Number of Outputs	Current - Output (Max) [Max]	Power (Watts)	Type	Voltage - Isolation	Approval Agency	Features	Termination Style	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]
EXCELSYS / Advanced Energy LXV150-012SW	Chassis Mount	2.3 lbs	1 kg	305 VAC	AC DC Converter	12 V	90 VAC	1	12.5 A	150 W	Constant Voltage	3750 VDC	CE cULus EN	OCP OTP OVP SCP	Wire Leads	IP67	2.66 in	199 mm	1.58 in	7.84 in	67.5 mm	40 mm	92 %	-35 °C	70 °C
EXCELSYS / Advanced Energy LXV150-024S	Chassis Mount	2.3 lbs	1 kg	264 VAC	AC DC Converter	24 V	90 VAC	1	6.25 A	150 W	Constant Voltage	3750 VDC	CE cULus EN	OCP OTP OVP SCP	Wire Leads	IP67	2.66 in	199 mm	1.58 in	7.84 in	67.5 mm	40 mm	93 %	-35 °C	70 °C
EXCELSYS / Advanced Energy LXV150-048S	Chassis Mount	2.3 lbs	1 kg	264 VAC	AC DC Converter	48 V	90 VAC	1	3.13 A	150 W	Constant Voltage	3750 VDC	CE cULus EN	OCP OTP OVP SCP	Wire Leads	IP67	2.66 in	199 mm	1.58 in	7.84 in	67.5 mm	40 mm	93 %	-35 °C	70 °C
