8467 Series
Manufacturer: Belden Inc.
Beta
⌘K

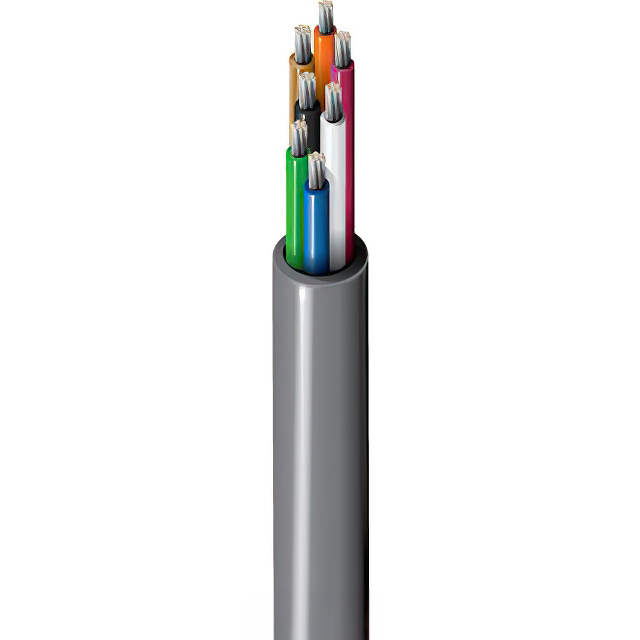

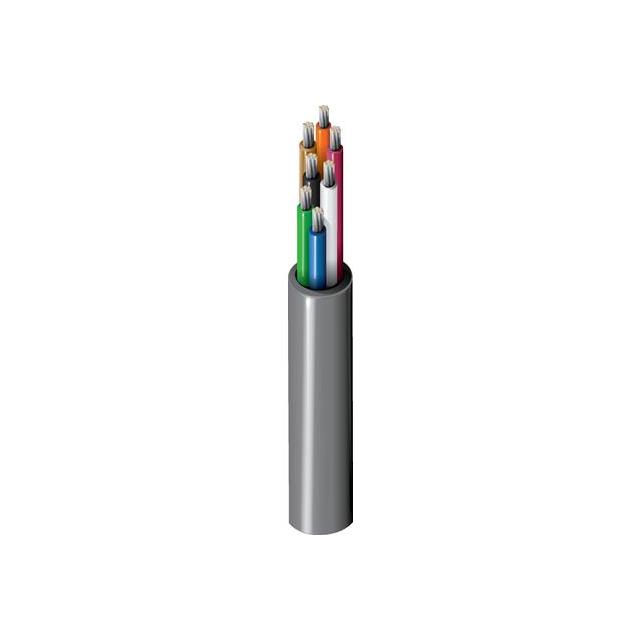

CABLE 7COND 18AWG CHROME
| Part | Number of Conductors | Conductor Insulation | Ratings | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Usage | Jacket (Insulation) Material | Cable Type | Conductor Material | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 7 | Poly-Vinyl Chloride (PVC) | UL Style 2598 | 18 AWG | 0.94 mm | 0.037 in | Chrome | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Copper Tinned | 100 ft | 30.5 m | 7.85 mm | 0.309 in | 30 AWG | 19 | -20 ░C | 60 °C | |||
Belden Inc. | 7 | Poly-Vinyl Chloride (PVC) | 18 AWG | 0.94 mm | 0.037 in | Chrome | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Copper Tinned | 7.85 mm | 0.309 in | 30 AWG | 19 | -20 ░C | 60 °C | 15.24 m 152.4 m | 50 ft 500 ft | ||||
 Belden Inc. | 7 | Poly-Vinyl Chloride (PVC) | UL Style 2598 | 18 AWG | 0.94 mm | 0.037 in | Chrome | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Copper Tinned | 7.85 mm | 0.309 in | 30 AWG | 19 | -20 ░C | 60 °C | 3048 m | 10000 ft | 300 VDC | ||
 Belden Inc. | 7 | Poly-Vinyl Chloride (PVC) | UL Style 2598 | 18 AWG | 0.94 mm | 0.037 in | Chrome | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Copper Tinned | 7.85 mm | 0.309 in | 30 AWG | 19 | -20 ░C | 60 °C | 304.8 m | 1000 ft | 300 VDC | ||
Belden Inc. | 7 | Poly-Vinyl Chloride (PVC) | UL Style 2598 | 18 AWG | 0.94 mm | 0.037 in | Chrome | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Copper Tinned | 7.85 mm | 0.309 in | 30 AWG | 19 | -20 ░C | 60 °C | 76.2 m | 250 ft | 300 VDC |
