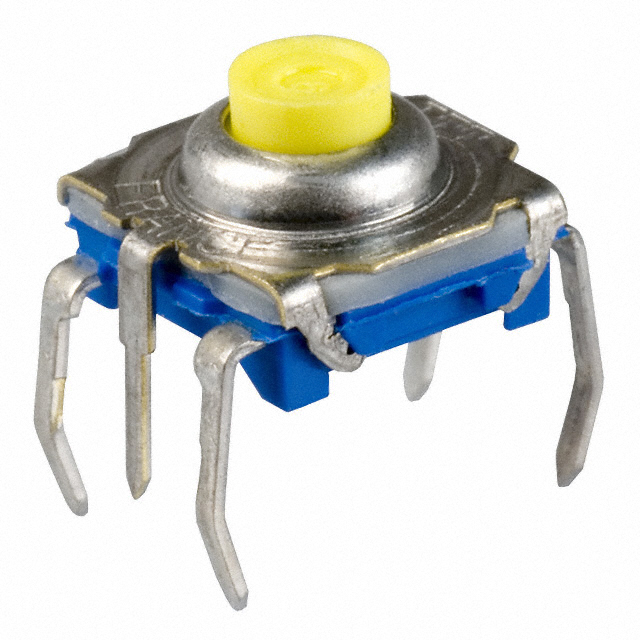

KSA1M5 Series

Catalog

SWITCH TACTILE SPST-NO 0.01A 32V

Part	Outline [x]	Outline [y]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]	Mechanical Life	Features	Actuator Orientation	Operating Force	Mounting Type	Termination Style	Illumination	Contact Rating @ Voltage	Actuator Type	Switch Travel	Ingress Protection	Switch Function	Circuit
Littelfuse/Commercial Vehicle Products KSA1M531LFT	7.4 mm	7.4 mm	125 °C	-40 °C	4.7 mm	100000 Cycles	Grounding Pin	Top Actuated	0.5 kgf	Through Hole	PC Pin	Non-Illuminated	0.01 A 32 VDC	Standard	0.7 mm	IP60	Off-Mom	SPST-NO
Littelfuse/Commercial Vehicle Products KSA1M511LFT	7.4 mm	7.4 mm	90 °C	-40 °C	4.7 mm	100000 Cycles	Grounding Pin	Top Actuated	0.5 kgf	Through Hole	PC Pin	Non-Illuminated	0.05 A	Standard	0.7 mm	IP60	Off-Mom	SPST-NO
Littelfuse/Commercial Vehicle Products KSA1M511 LFTR	7.4 mm	7.4 mm	85 °C	-40 °C	4.7 mm	100000 Cycles	Grounding Pin	Top Actuated	0.5 kgf	Through Hole	PC Pin	Non-Illuminated	0.05 A	Standard	0.7 mm	IP60	Off-Mom	SPST-NO
Littelfuse/Commercial Vehicle Products KSA1M531 LFTR	7.4 mm	7.4 mm	125 °C	-40 °C	4.7 mm	100000 Cycles	Grounding Pin	Top Actuated	0.5 kgf	Through Hole	PC Pin	Non-Illuminated	0.01 A 32 VDC	Standard	0.7 mm	IP60	Off-Mom	SPST-NO
