USB1015 Series
Manufacturer: GCT
Beta
⌘K

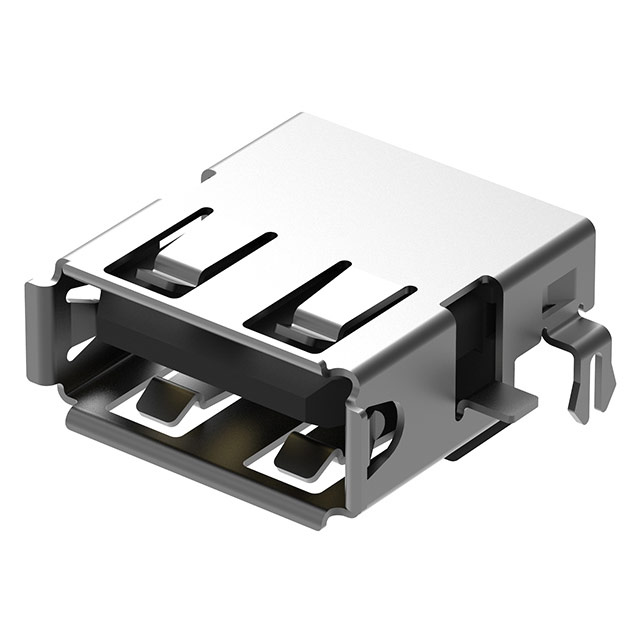

USB A SKT, MID-TH, R/A, GF, OFFS
| Part | Shell/Shielding Material | Material Flammability Rating | Contact Finish | Insulation Color | Mounting Feature | Mounting Type | Features | Termination | Mating Cycles | Voltage - Rated | Gender | Number of Ports | Number of Contacts | Current Rating (Amps) | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Specifications | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass | UL94 V-0 | Gold | Black | Horizontal Mid Mount | Board Edge Cutout Through Hole Right Angle | Board Lock Solder Retention | Solder | 1500 | 30 V | Receptacle | 1 | 4 | 1.5 A | USB-A (USB TYPE-A) | 85 °C | -40 C | USB 2.0 | Shielded |
