R5BBLKRE Series
Manufacturer: E-Switch
Beta
⌘K
ROCKER SWITCHES 15A 250V DPST ON-OFFINCANDESCENT
| Part | Mechanical Life | Electrical Life | Actuator Type | Color - Actuator/Cap | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating (Amps) | Illumination Type, Color | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage Rating - AC | Termination Style | Actuator Marking | Approval Agency | Circuit | Switch Function | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 30000 Steps | 10000 Cycles | Concave (Curved) - Illuminated | Red | 30 mm | 22.2 mm | 20 A | Neon Red | 55 °C | -20 ░C | Panel Mount Snap-In | 125 V | Quick Connect - 0.250" (6.3mm) | Dot | CSA UL | DPST | On-Off | 250 VAC |
 E-Switch | 30000 Steps | 10000 Cycles | Concave (Curved) - Illuminated | Red | 30 mm | 22.2 mm | 20 A | Neon Red | 55 °C | -20 ░C | Panel Mount Snap-In | 125 V | Quick Connect - 0.250" (6.3mm) | O - | CSA UL | DPST | On-Off | 125 VAC |

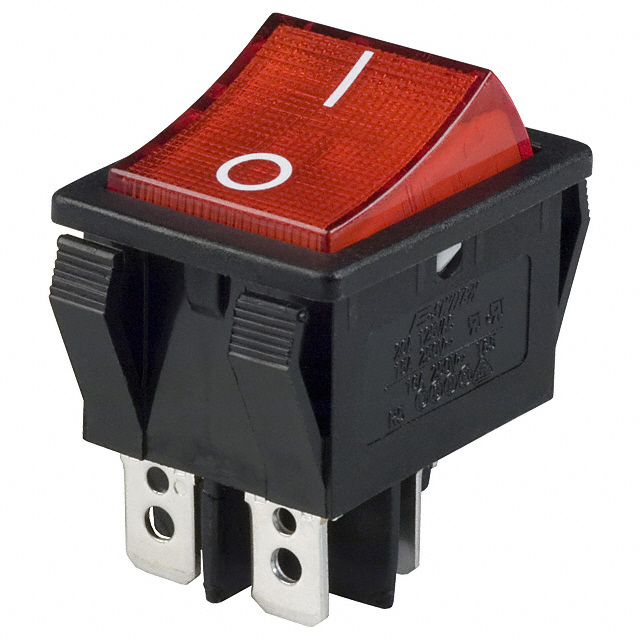

 E-Switch | 30000 Steps | 10000 Cycles | Concave (Curved) - Illuminated | Red | 30 mm | 22.2 mm | 20 A | Neon Red | 55 °C | -20 ░C | Panel Mount Snap-In | 125 V | Quick Connect - 0.250" (6.3mm) | O I | CSA UL | DPST | On-Off | 250 VAC |
E-Switch | 30000 Steps | 10000 Cycles | Concave (Curved) - Illuminated | Red | 30 mm | 22.2 mm | 20 A | Neon Red | 55 °C | -20 ░C | Panel Mount Snap-In | 125 V | Quick Connect - 0.250" (6.3mm) | - O = | CSA UL | DPST | On-Off | 125 VAC |
E-Switch | 30000 Steps | 10000 Cycles | Concave (Curved) - Illuminated | Red | 30 mm | 22.2 mm | 20 A | Neon Red | 55 °C | -20 ░C | Panel Mount Snap-In | 125 V | Quick Connect - 0.250" (6.3mm) | Triangular Arrows with O | CSA UL | DPST | On-Off | 125 VAC |

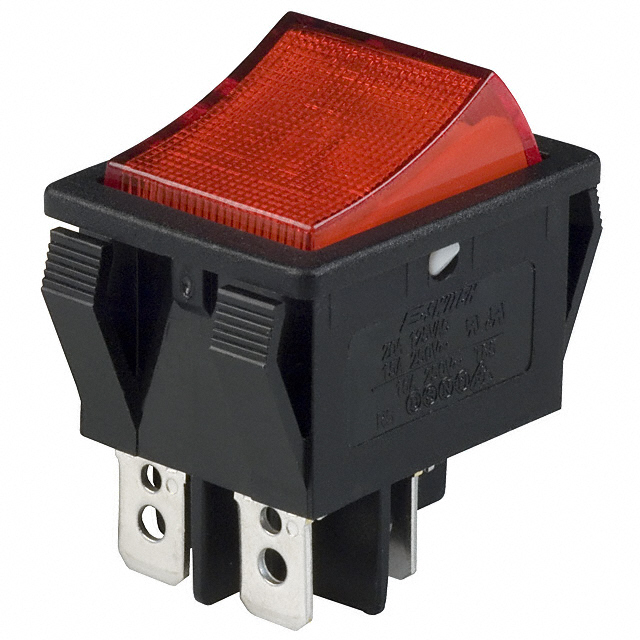

 E-Switch | 30000 Steps | 10000 Cycles | Concave (Curved) - Illuminated | Red | 30 mm | 22.2 mm | 20 A | Neon Red | 55 °C | -20 ░C | Panel Mount Snap-In | 125 V | Quick Connect - 0.250" (6.3mm) | No Marking | CSA UL | DPST | On-Off | 125 VAC |
 E-Switch | 30000 Steps | 10000 Cycles | Concave (Curved) - Illuminated | Red | 30 mm | 22.2 mm | 20 A | Neon Red | 55 °C | -20 ░C | Panel Mount Snap-In | 125 V | Quick Connect - 0.250" (6.3mm) | O - | CSA UL | DPST | On-Off | 250 VAC |
 E-Switch | 30000 Steps | 10000 Cycles | Concave (Curved) - Illuminated | Red | 30 mm | 22.2 mm | 20 A | Neon Red | 55 °C | -20 ░C | Panel Mount Snap-In | 125 V | Quick Connect - 0.250" (6.3mm) | ON OFF | CSA UL | DPST | On-Off | 125 VAC |
E-Switch | 30000 Steps | 10000 Cycles | Concave (Curved) - Illuminated | Red | 30 mm | 22.2 mm | 20 A | LED Red | 55 °C | -20 ░C | Panel Mount Snap-In | 125 V | Quick Connect - 0.250" (6.3mm) | ON OFF | CSA UL | DPST | On-Off | 12 VDC |
