GS Series
Manufacturer: E-Switch
Beta
⌘K
PUSHBUTTON SWITCHES 50MA 50VDC SPST
| Part | Outline [x] | Outline [y] | Contact Rating @ Voltage | Mounting Type | Actuator Type | Termination Style | Actuator Orientation | Operating Force | Circuit | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Actuator Length, Right Angle [x] | Actuator Material | Mechanical Life | Switch Travel | Actuator Height off PCB, Vertical [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 8 mm | 8.54 mm | 0.05 A 50 VDC | Right Angle Through Hole | Standard | PC Pin | Side Actuated | 130 gf | SPST-NO | Off-Mom | 80 °C | -40 C | Non-Illuminated | 3.8 mm | ||||

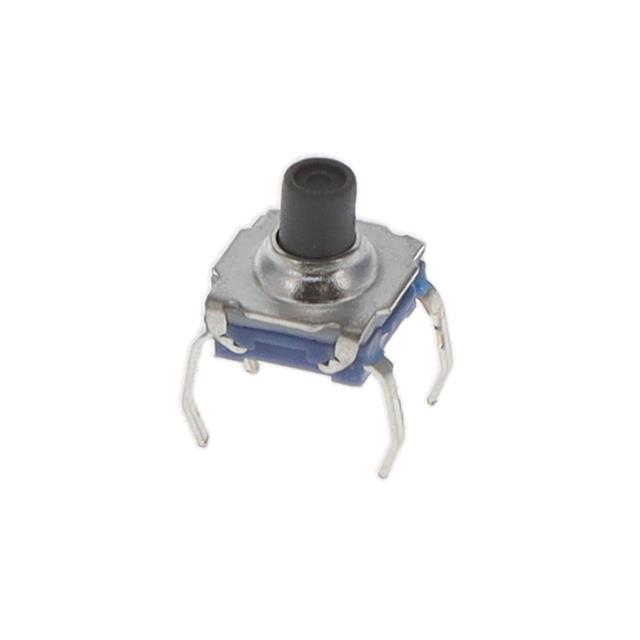

 E-Switch | 7.2 mm | 7.2 mm | 0.05 A 50 VDC | Through Hole | Standard | PC Pin | Top Actuated | 300 gf | SPST-NO | Off-Mom | 85 °C | -40 C | Non-Illuminated | Liquid Crystal Polymer (LCP) | 1000000 Cycles | 0.3 mm | 6.9 mm |
