796689 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

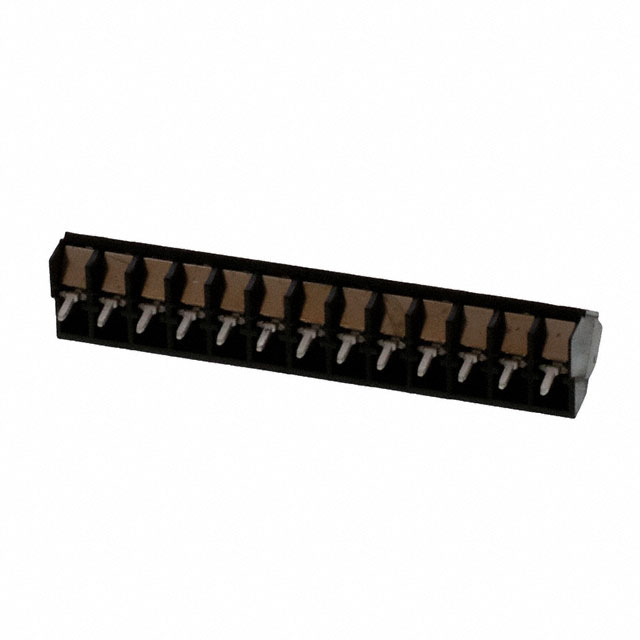

TERM BLOCK 13POS 35DEG 5MM PCB
| Part | Torque - Screw | Torque - Screw | Screw Thread | Clamp Material - Plating [custom] | Clamp Material - Plating [custom] | Contact Material - Plating | Screw Material - Plating | Positions Per Level | Mating Orientation | Wire Termination | Features | Current | Color | Voltage | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Number of Levels | Pitch | Pitch | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 7 Lb-In | 0.79 Nm | M3 | Brass | Tin Plated | Brass - Tin Plated | Brass - Nickel Plated | 13 | 35° (145°) Angle with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 17.5 A | Black | 300 VDC | 30 AWG | 12 AWG | Through Hole | 1 | 0.197 in | 5 mm | |

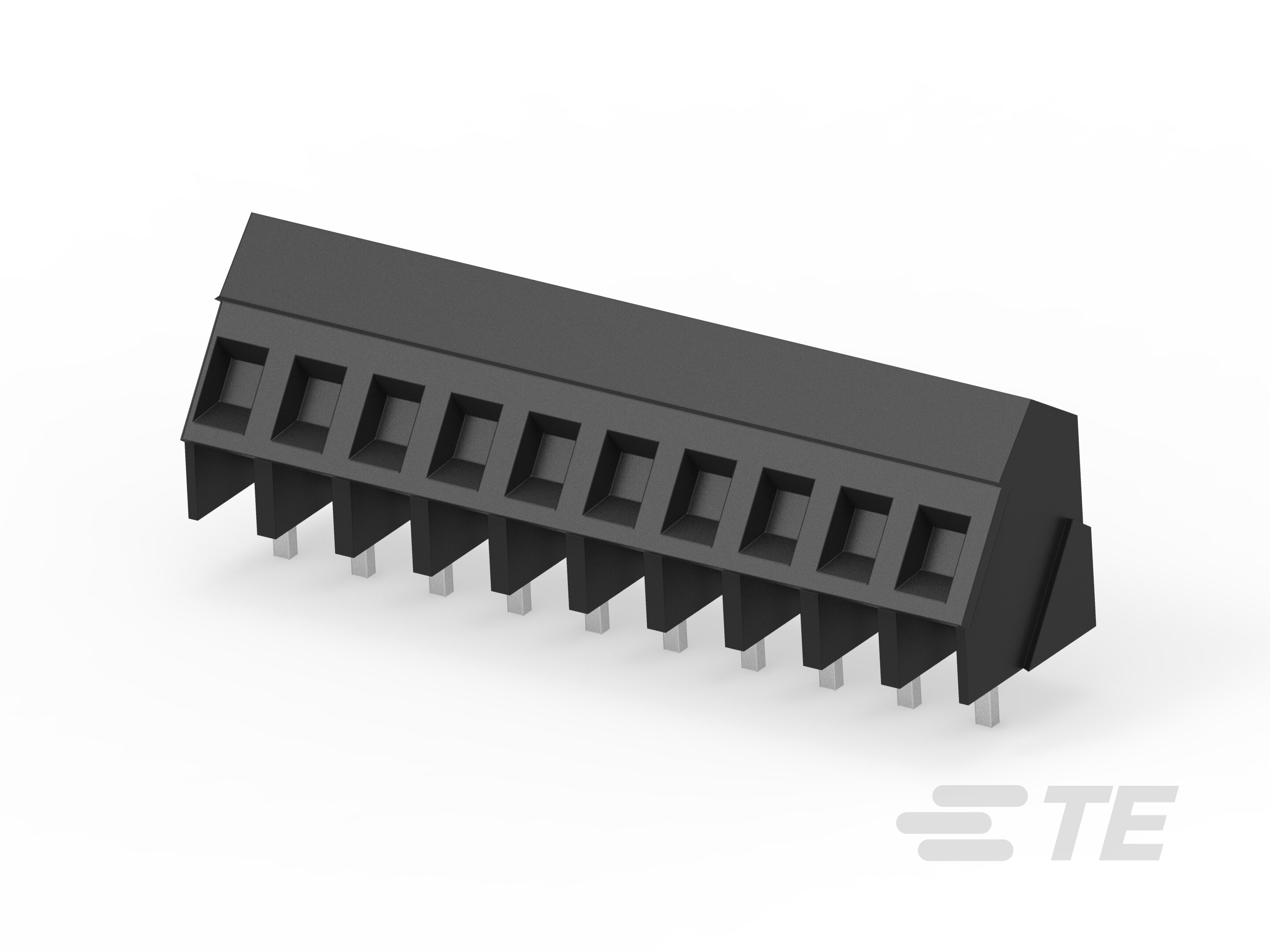

 TE Connectivity AMP Connectors | 7 Lb-In | 0.79 Nm | M3 | Brass | Tin Plated | Brass - Tin Plated | Brass - Nickel Plated | 10 | 35° (145°) Angle with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 17.5 A | Black | 300 VDC | 30 AWG | 12 AWG | Through Hole | 1 | 0.197 in | 5 mm | |

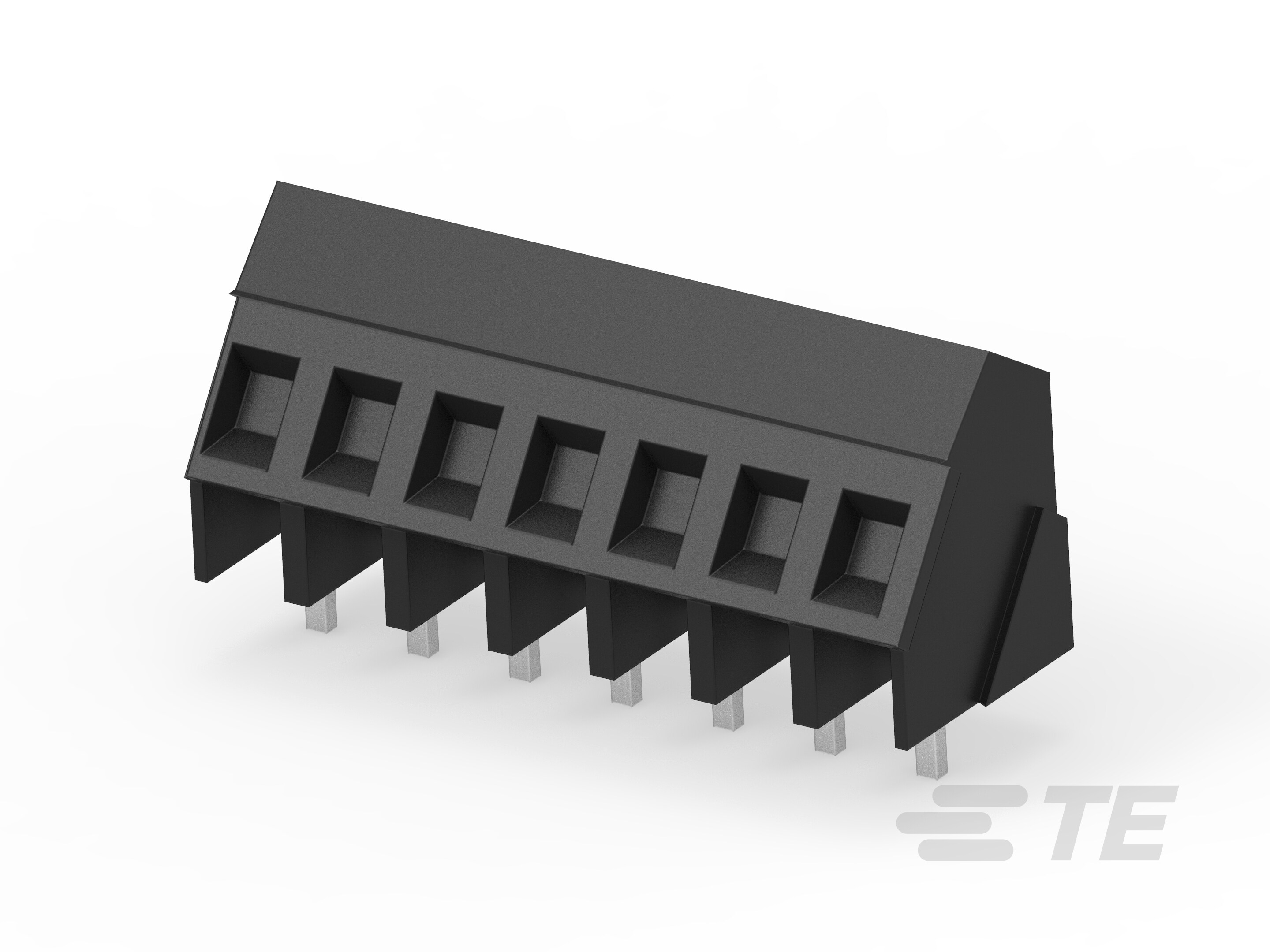

 TE Connectivity AMP Connectors | 7 Lb-In | 0.79 Nm | M3 | Brass | Tin Plated | Brass - Tin Plated | Brass - Nickel Plated | 35° (145°) Angle with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 17.5 A | Black | 300 VDC | 30 AWG | 12 AWG | Through Hole | 1 | 0.197 in | 5 mm | 7 | |

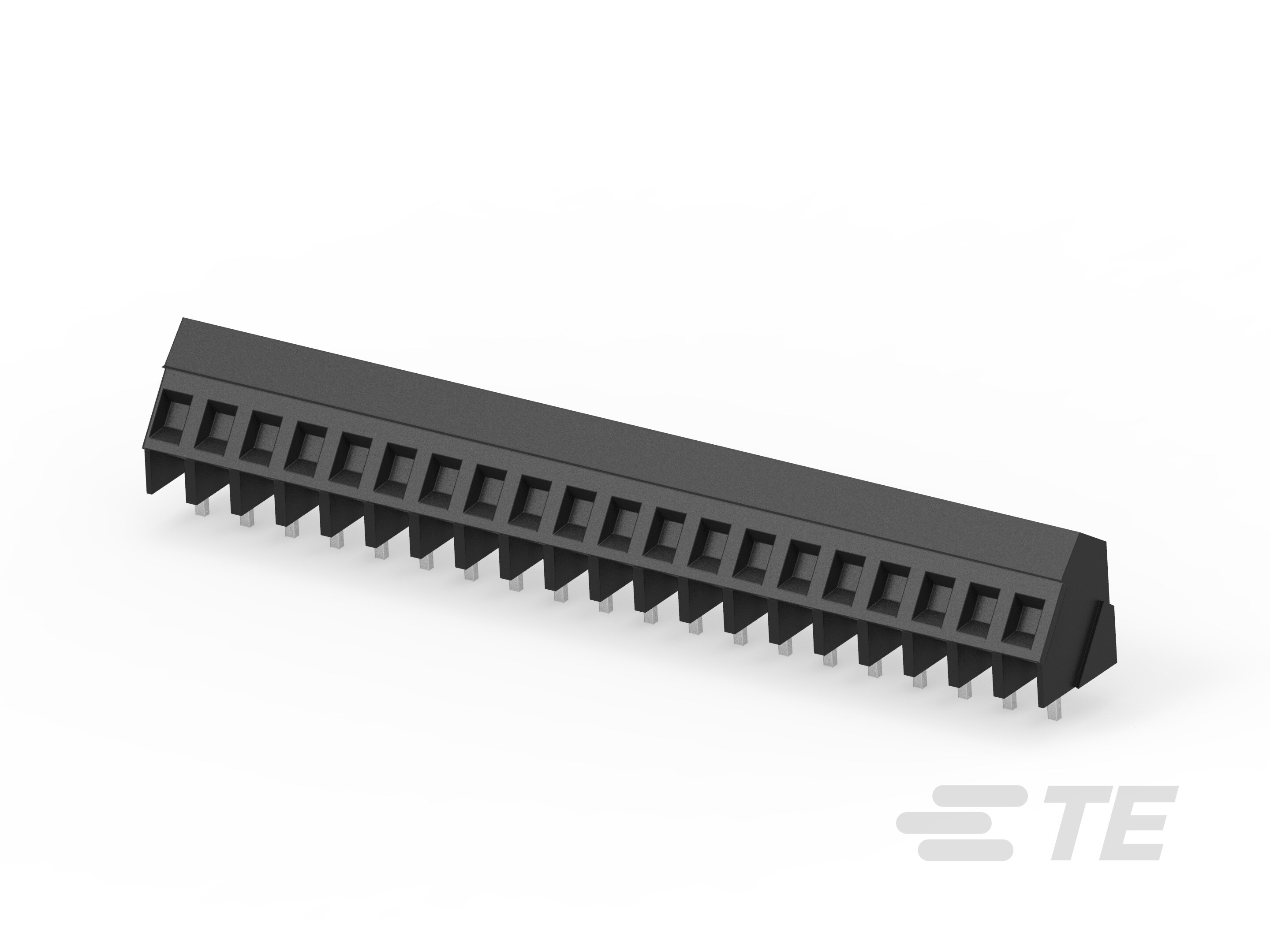

 TE Connectivity AMP Connectors | 7 Lb-In | 0.79 Nm | M3 | Brass | Tin Plated | Brass - Tin Plated | Brass - Nickel Plated | 20 | 35° (145°) Angle with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 17.5 A | Black | 300 VDC | 30 AWG | 12 AWG | Through Hole | 1 | 0.197 in | 5 mm | |
 TE Connectivity AMP Connectors | 7 Lb-In | 0.79 Nm | M3 | Brass | Tin Plated | Brass - Tin Plated | Brass - Nickel Plated | 11 | 35° (145°) Angle with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 17.5 A | Black | 300 VDC | 30 AWG | 12 AWG | Through Hole | 1 | 0.197 in | 5 mm | |

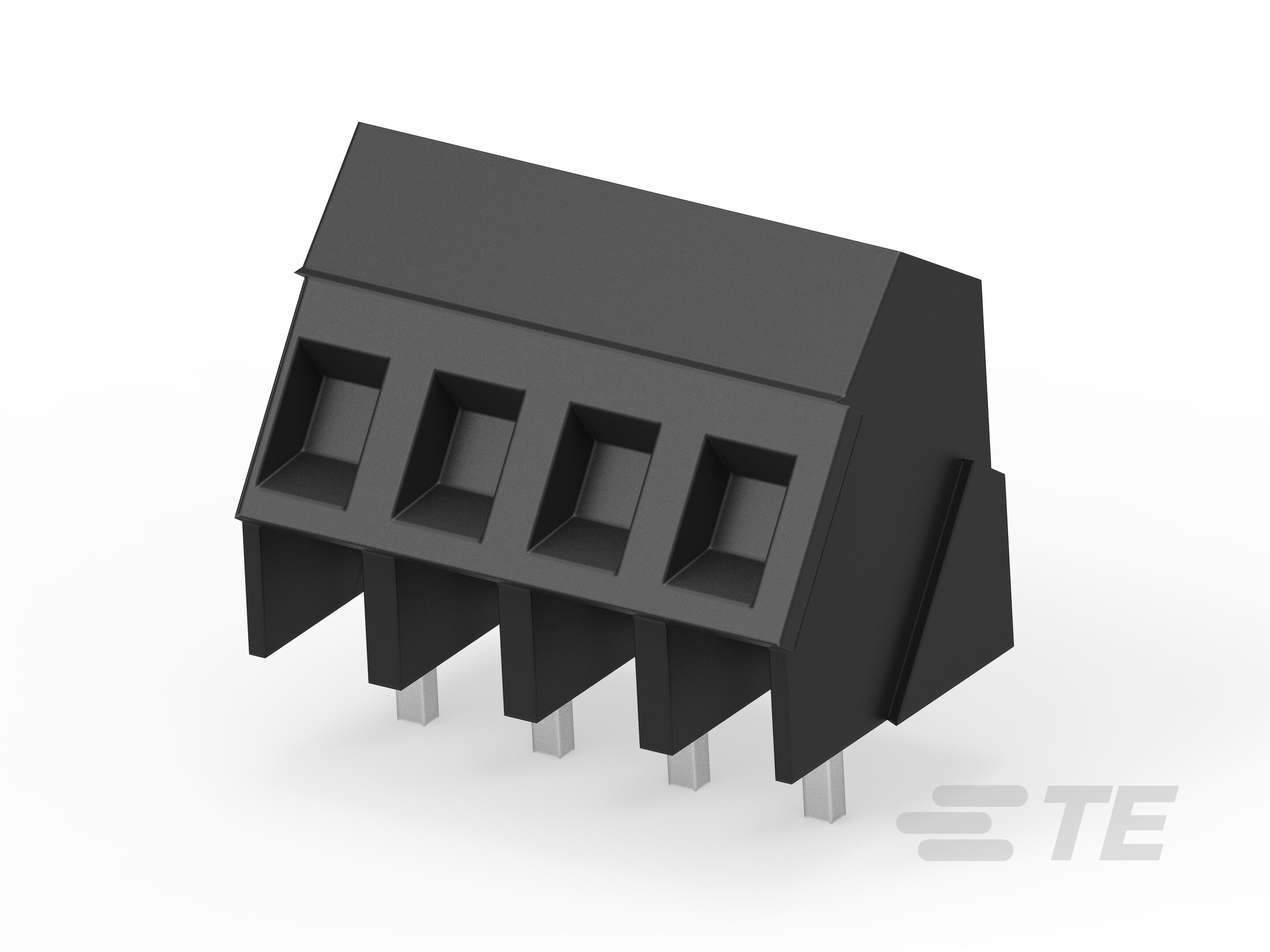

 TE Connectivity AMP Connectors | 7 Lb-In | 0.79 Nm | M3 | Brass | Tin Plated | Brass - Tin Plated | Brass - Nickel Plated | 4 | 35° (145°) Angle with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 17.5 A | Black | 300 VDC | 30 AWG | 12 AWG | Through Hole | 1 | 0.197 in | 5 mm | |

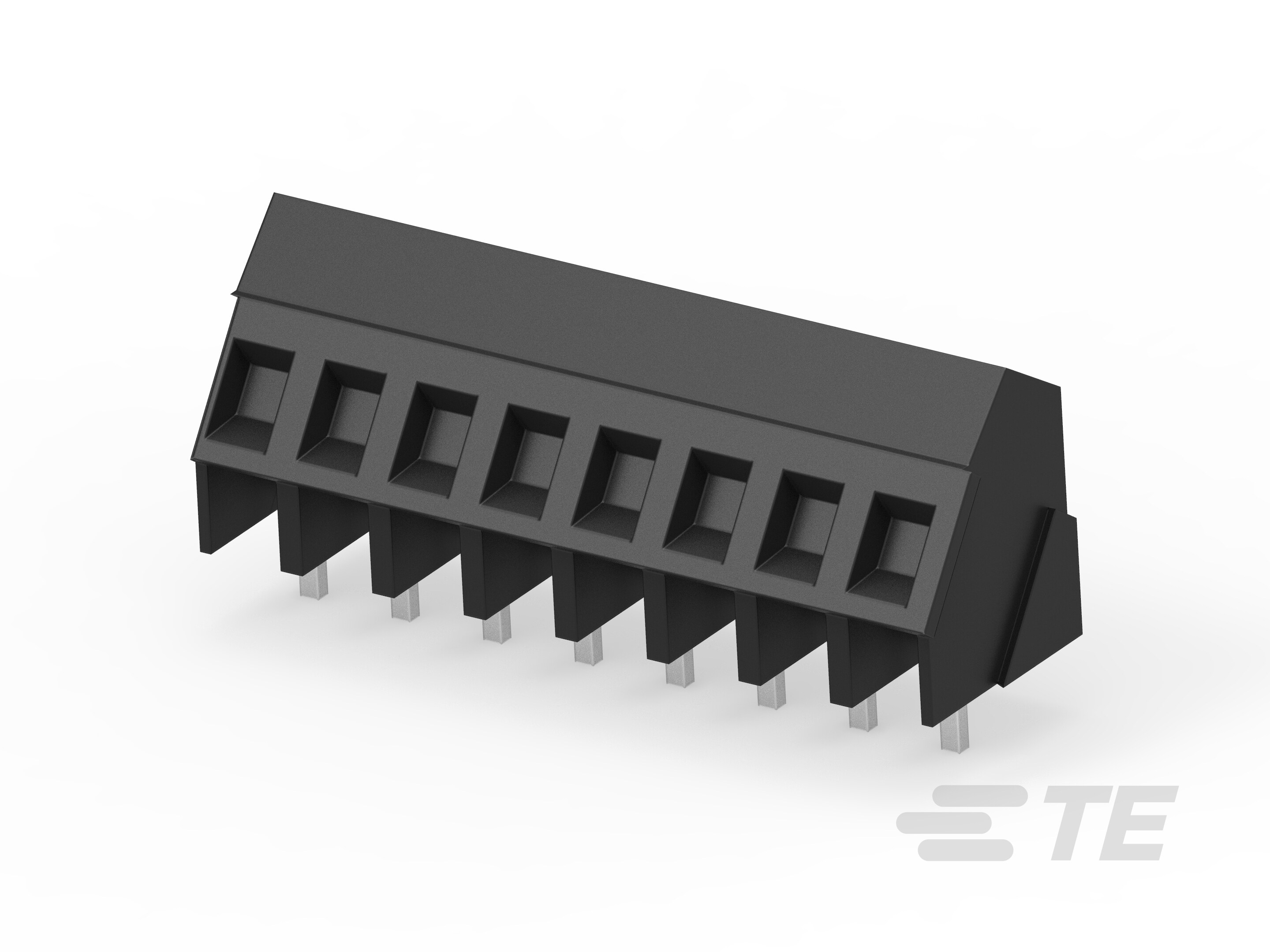

 TE Connectivity AMP Connectors | 7 Lb-In | 0.79 Nm | M3 | Brass | Tin Plated | Brass - Tin Plated | Brass - Nickel Plated | 8 | 35° (145°) Angle with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 17.5 A | Black | 300 VDC | 30 AWG | 12 AWG | Through Hole | 1 | 0.197 in | 5 mm | |
 TE Connectivity AMP Connectors | 7 Lb-In | 0.79 Nm | M3 | Brass | Tin Plated | Brass - Tin Plated | Brass - Nickel Plated | 2 | 35° (145°) Angle with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 17.5 A | Black | 300 VDC | 30 AWG | 12 AWG | Through Hole | 1 | 0.197 in | 5 mm | |
 TE Connectivity AMP Connectors | 7 Lb-In | 0.79 Nm | M3 | Brass | Tin Plated | Brass - Tin Plated | Brass - Nickel Plated | 18 | 35° (145°) Angle with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 17.5 A | Black | 300 VDC | 30 AWG | 12 AWG | Through Hole | 1 | 0.197 in | 5 mm | |

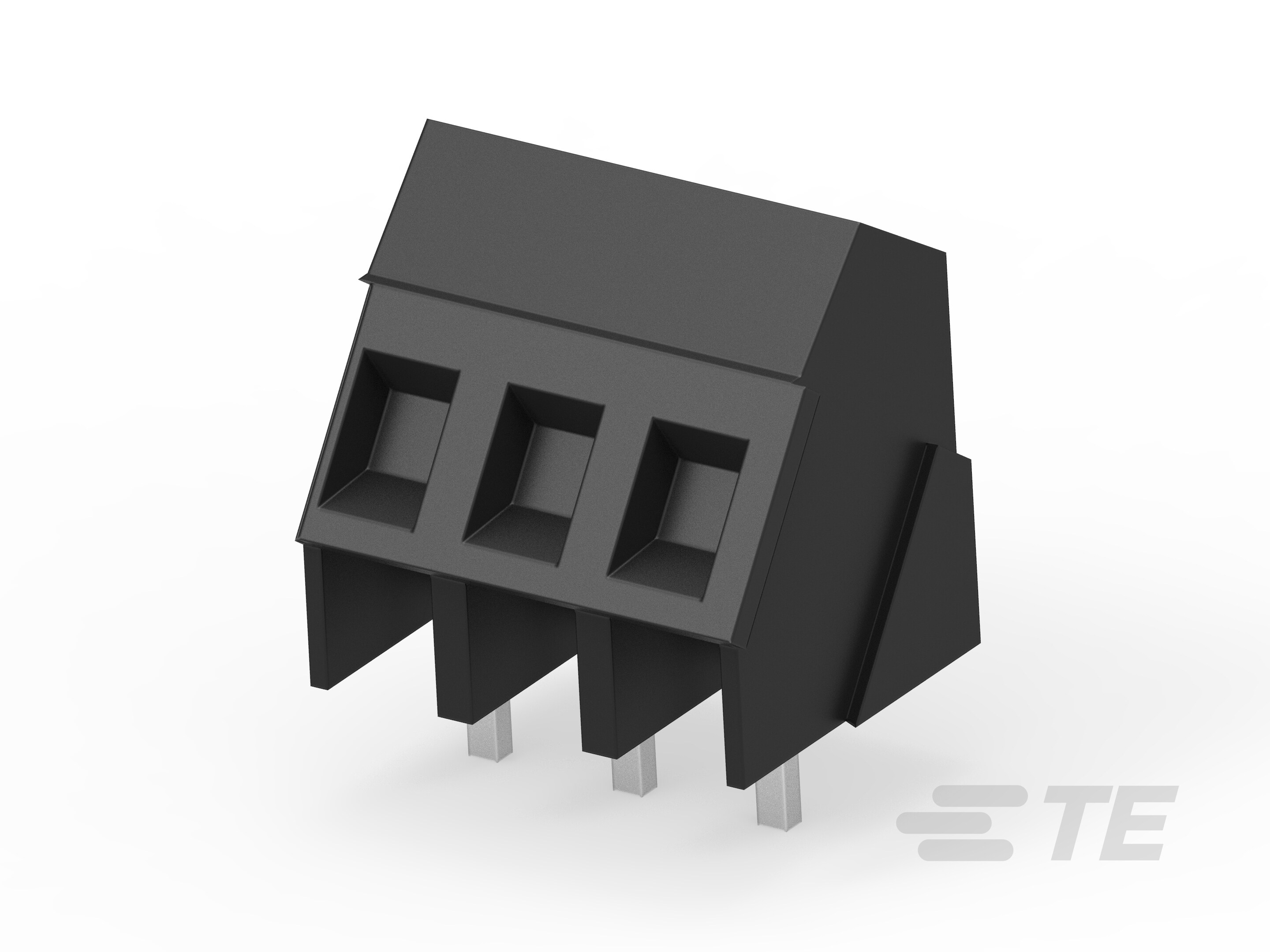

 TE Connectivity AMP Connectors | 7 Lb-In | 0.79 Nm | M3 | Brass | Tin Plated | Brass - Tin Plated | Brass - Nickel Plated | 3 | 35° (145°) Angle with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 17.5 A | Black | 300 VDC | 30 AWG | 12 AWG | Through Hole | 1 | 0.197 in | 5 mm |
