5162C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

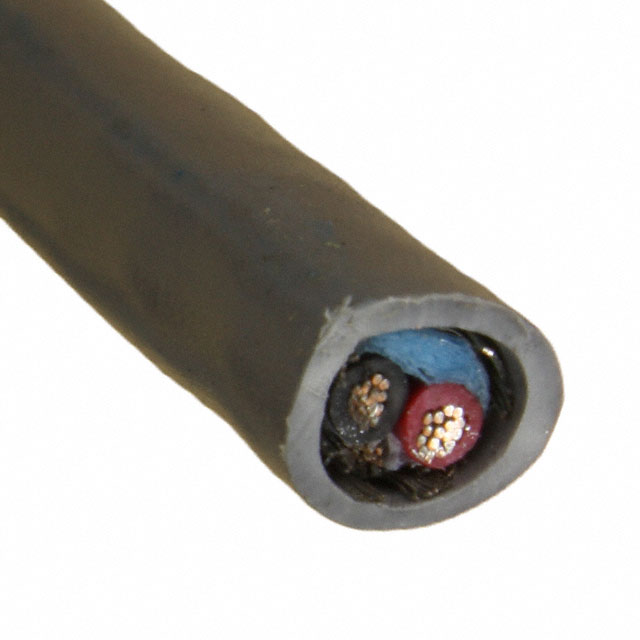

CABLE 2CON 18AWG SLATE SHLD 100'
| Part | Jacket Color | Jacket (Insulation) Material | Features | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Conductor Material | Ratings | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Shield Coverage | Length [x] | Length [x] | Shield Type | Usage | Cable Type | Spool Size | Spool Size | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | 18 AWG | 6.45 mm | 0.254 in | Poly-Vinyl Chloride (PVC) | Copper Tinned | ISO 10993 | Copper Tinned Suprashield® | 16 | 30 AWG | 2 | 300 V | -35 °C | 105 ░C | 70 % 100 % | 30.5 m | 100 ft | Braid Foil | Communication Control | Multi-Conductor | |||
ALPHA WIRE | Slate | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | 18 AWG | 6.45 mm | 0.254 in | Poly-Vinyl Chloride (PVC) | Copper Tinned | ISO 10993 | Copper Tinned Suprashield® | 16 | 30 AWG | 2 | 300 V | -35 °C | 105 ░C | 70 % 100 % | Braid Foil | Communication Control | Multi-Conductor | 1000 ft | 304.8 m | Enter Number of Feet in Order Quantity | ||
ALPHA WIRE | Slate | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | 18 AWG | 6.45 mm | 0.254 in | Poly-Vinyl Chloride (PVC) | Copper Tinned | ISO 10993 | Copper Tinned Suprashield® | 16 | 30 AWG | 2 | 300 V | -35 °C | 105 ░C | 70 % 100 % | 152.4 m | 500 ' | Braid Foil | Communication Control | Multi-Conductor |
