2362375 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PCIE GEN4, 164POS ,G/F ,DIP ,3.1MM TAIL

Part	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Material	Features	Contact Type	Contact Finish	Read Out	Pitch [x]	Pitch [x]	Color	Card Type	Gender	Termination	Number of Rows	Termination Rows	Mounting Type	Contact Finish Thickness	Material - Insulation	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row

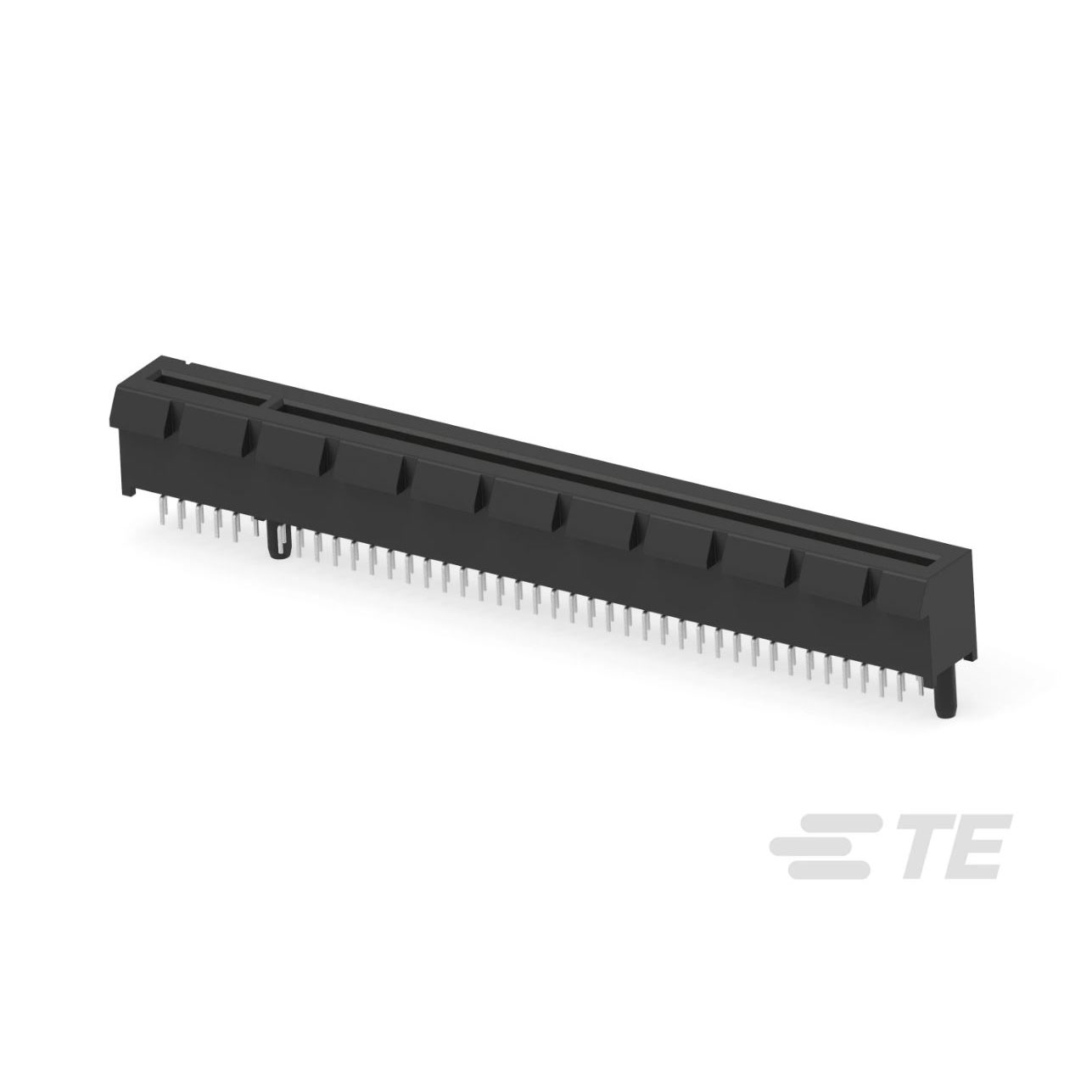

TE Connectivity Raychem Cable Protection 3-2362375-4	164	85 °C	-40 °C	71	11	Phosphor Bronze	Board Guide Locking Ramp	Cantilever	Gold	Dual	0.039 in	1 mm	Black	PCI Express™	Female	Solder	2	2	Through Hole	Flash	Thermoplastic	0.062 in	1.57 mm
TE Connectivity Raychem Cable Protection 4-2362375-4	164	85 °C	-40 °C	71	11	Phosphor Bronze	Board Guide Locking Ramp	Cantilever	Gold	Dual	0.039 in	1 mm	Black	Non Specified - Dual Edge	Female	Solder	2	2	Through Hole		Thermoplastic	0.062 in	1.57 mm	15 µin	0.38 µm
TE Connectivity Raychem Cable Protection 4-2362375-2	64	85 °C	-40 °C			Phosphor Bronze	Board Guide Locking Ramp	Cantilever	Gold	Dual	0.039 in	1 mm	Black	PCI Express™	Female	Solder	2	2	Through Hole		Thermoplastic	0.062 in	1.57 mm	15 µin	0.38 µm	21	11
TE Connectivity Raychem Cable Protection 2362375-4	164	85 °C	-40 °C	71	11	Phosphor Bronze	Board Guide Locking Ramp	Cantilever	Gold	Dual	0.039 in	1 mm	Black	PCI Express™	Female	Solder	2	2	Through Hole	Flash	Thermoplastic	0.062 in	1.57 mm

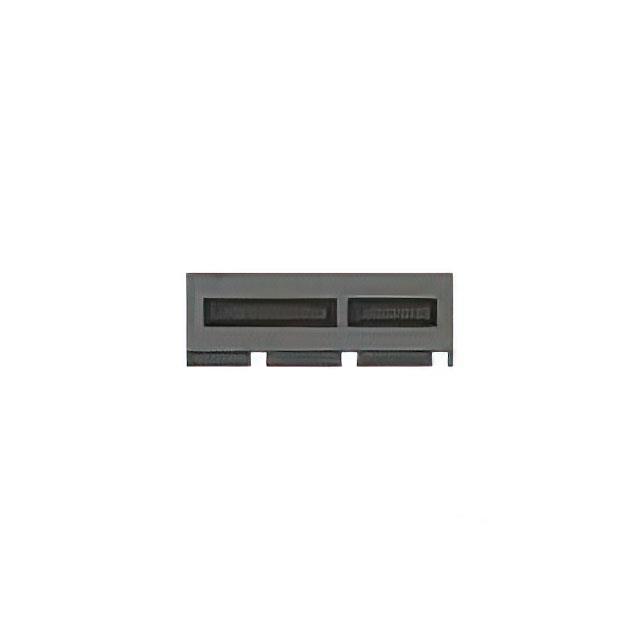

TE Connectivity Raychem Cable Protection 2-2362375-1	36	85 °C	-40 °C			Phosphor Bronze	Board Guide Locking Ramp	Cantilever	Gold	Dual	0.039 in	1 mm	Black	PCI Express™	Female	Solder	2	2	Through Hole		Thermoplastic	0.062 in	1.57 mm	30 Áin	0.76 Ám			7 11

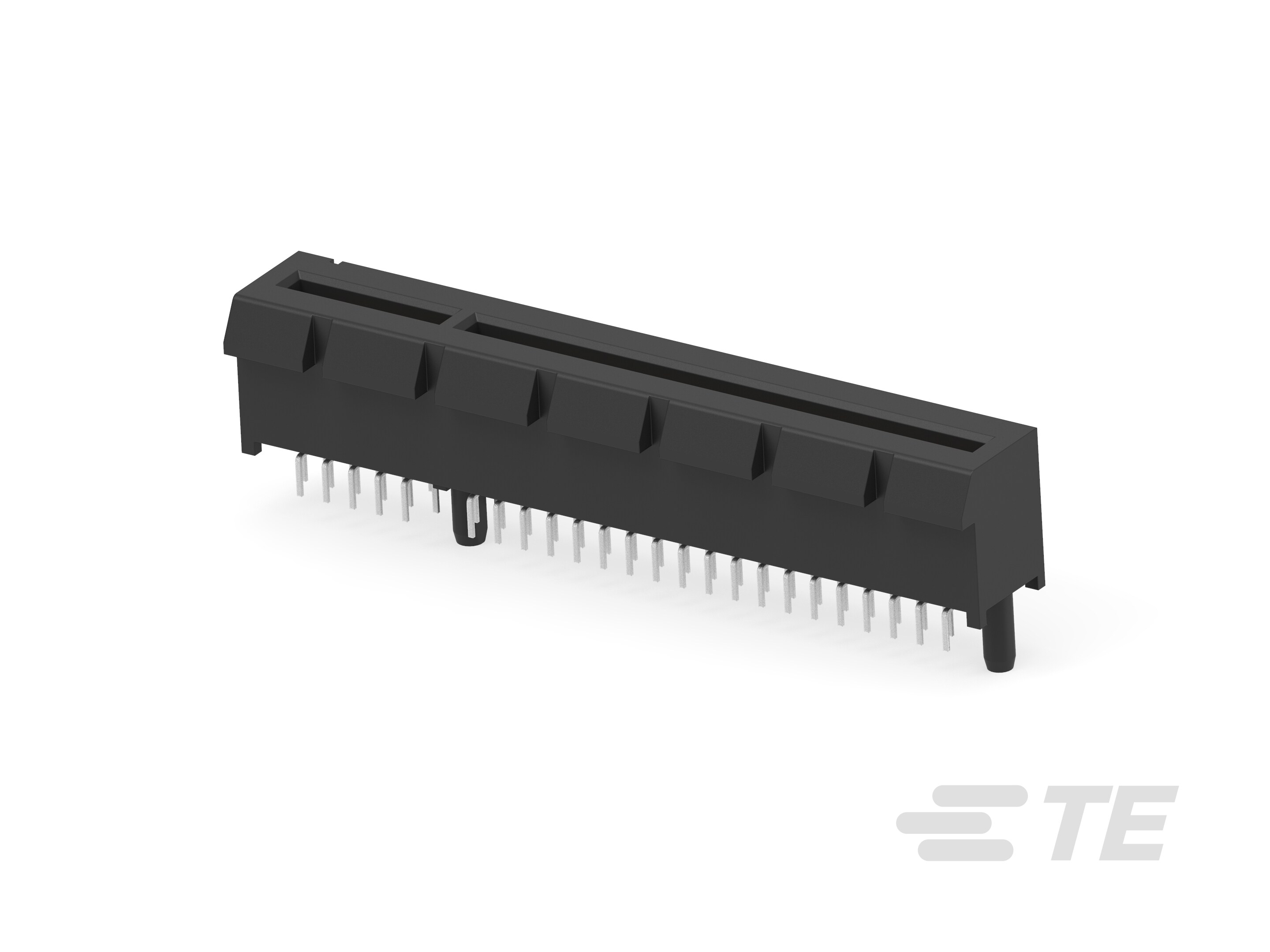

TE Connectivity Raychem Cable Protection 2362375-3	98	85 °C	-40 °C			Phosphor Bronze	Board Guide Locking Ramp	Cantilever	Gold	Dual	0.039 in	1 mm	Black	PCI Express™	Female	Solder	2	2	Through Hole	Flash	Thermoplastic	0.062 in	1.57 mm			38	11

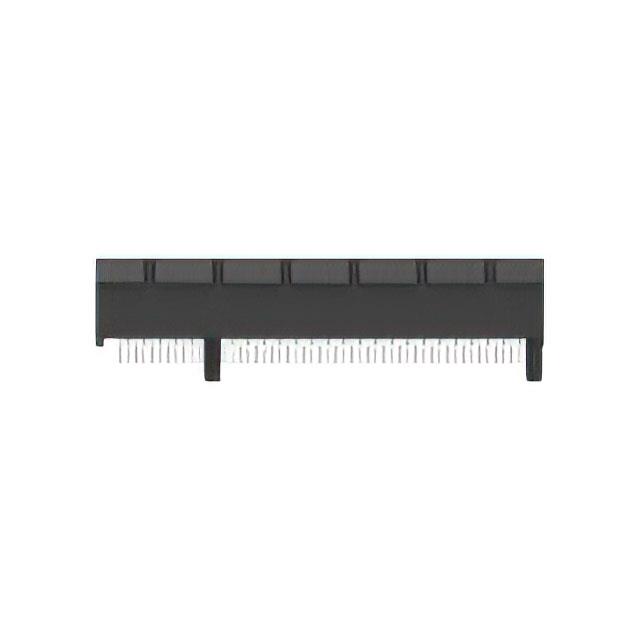

TE Connectivity Raychem Cable Protection 2-2362375-3	98	85 °C	-40 °C			Phosphor Bronze	Board Guide Locking Ramp	Cantilever	Gold	Dual	0.039 in	1 mm	Black	PCI Express™	Female	Solder	2	2	Through Hole		Thermoplastic	0.062 in	1.57 mm	30 Áin	0.76 Ám	38	11

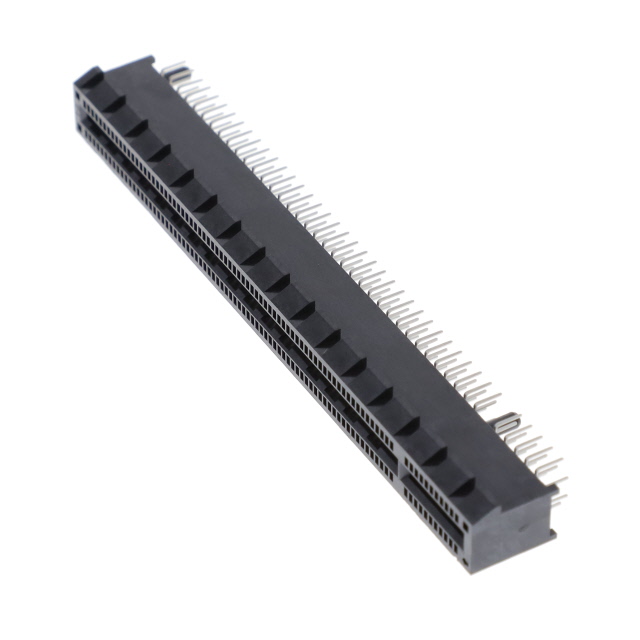

TE Connectivity Raychem Cable Protection 5-2362375-4	164	85 °C	-40 °C	71	11	Phosphor Bronze	Board Guide Locking Ramp	Cantilever	Gold	Dual	0.039 in	1 mm	Black	PCI Express™	Female	Solder	2	2	Through Hole		Thermoplastic	0.062 in	1.57 mm	30 Áin	0.76 Ám
TE Connectivity Raychem Cable Protection 2362375-2	64	85 °C	-40 °C			Phosphor Bronze	Board Guide Locking Ramp	Cantilever	Gold	Dual	0.039 in	1 mm	Black	PCI Express™	Female	Solder	2	2	Through Hole	Flash	Thermoplastic	0.062 in	1.57 mm			21	11
TE Connectivity Raychem Cable Protection 1-2362375-2
