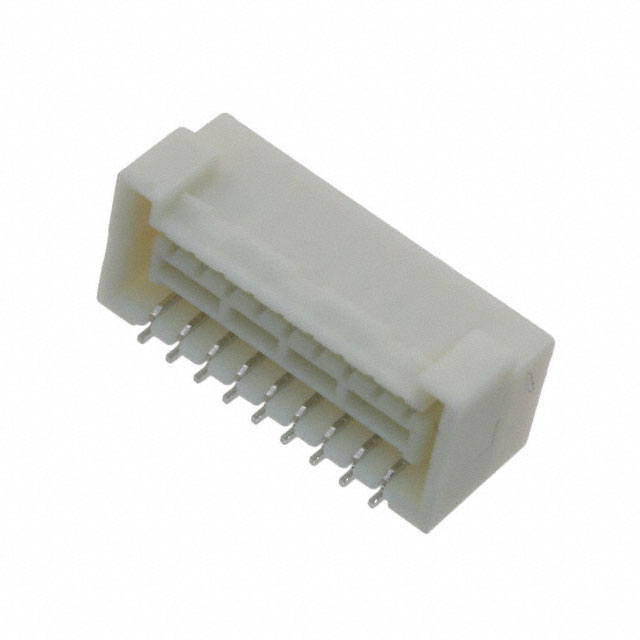

SM18B-ZP Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 18POS 1.5MM
| Part | Termination | Style | Contact Material | Mounting Type | Current Rating (Amps) | Shrouding | Number of Positions | Voltage Rating | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Contact Shape | Contact Finish - Post | Insulation Height | Insulation Height | Connector Type | Number of Rows [custom] | Insulation Material | Contact Type | Insulation Color | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Solder | Board to Cable/Wire | Copper Alloy | Right Angle Surface Mount | 2 A | Shrouded - 4 Wall | 18 | 100 V | UL94 V-0 | 85 °C | -25 °C | All | Rectangular | Tin | 7.85 mm | 0.309 in | Header | 2 | Nylon Polyamide (PA) | Outer Shroud Contact | Natural | Locking Ramp |
