C2RXG-1 Series

Catalog

DIP CABLE - CDP16G/AE16M/X

Part	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Usage	Number of Positions	Shielding	Pitch - Cable	Pitch - Cable	Length	Length	Length	Contact Finish	Number of Rows [custom]	Pitch - Connector	Pitch - Connector	Color	Features	Connector Type	Length [x]	Length [x]
CW Industries C2RXG-1606M	0.25 Ám	10 Áin	IDC	Board In Socket (0.3")	16	Unshielded	0.05 in	1.27 mm	152.4 mm	0.5 '	6 "	Gold	2	0.1 in	2.54 mm	Multiple Ribbon	Strain Relief	DIP to Cable
CW Industries C2RXG-1418M	0.25 Ám	10 Áin	IDC	Board In Socket (0.3")	14	Unshielded	0.05 in	1.27 mm				Gold	2	0.1 in	2.54 mm	Multiple Ribbon	Strain Relief	DIP to Cable	457.2 mm	1.5 ft

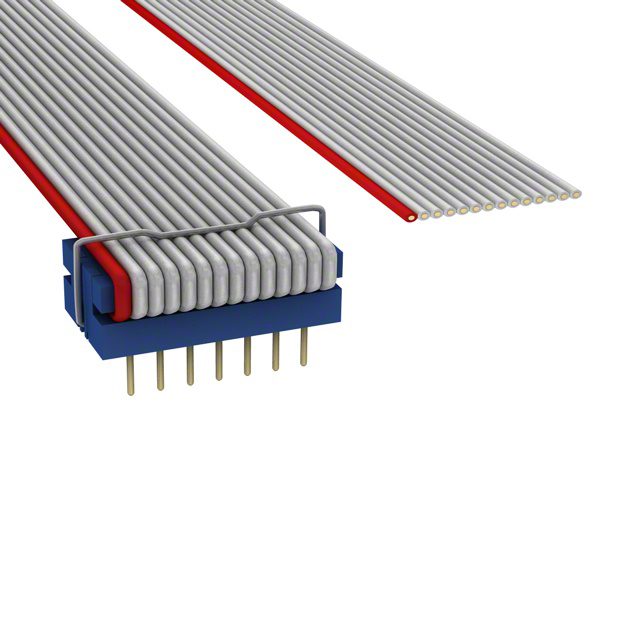

CW Industries C2RXG-1406G	0.25 Ám	10 Áin	IDC	Board In Socket (0.3")	14	Unshielded	0.05 in	1.27 mm	152.4 mm	0.5 '	6 "	Gold	2	0.1 in	2.54 mm		Strain Relief	DIP to Cable
CW Industries C2RXG-1618G	0.25 Ám	10 Áin	IDC	Board In Socket (0.3")	16	Unshielded	0.05 in	1.27 mm				Gold	2	0.1 in	2.54 mm		Strain Relief	DIP to Cable	457.2 mm	1.5 ft

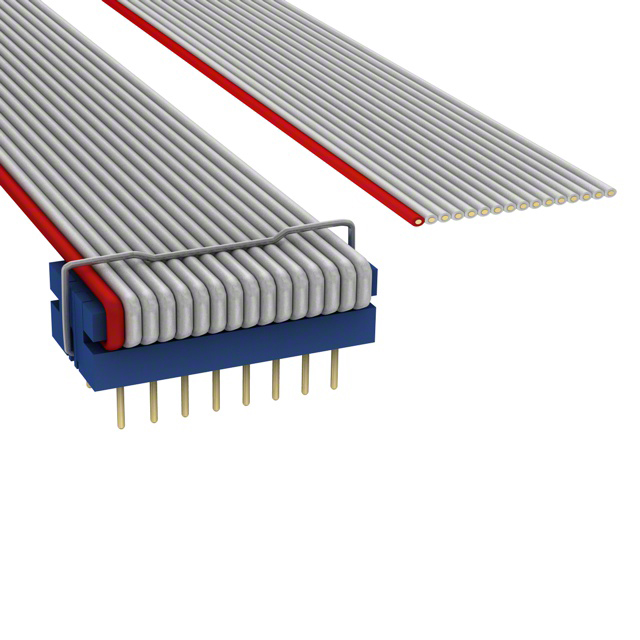

CW Industries C2RXG-1606G	0.25 Ám	10 Áin	IDC	Board In Socket (0.3")	16	Unshielded	0.05 in	1.27 mm	152.4 mm	0.5 '	6 "	Gold	2	0.1 in	2.54 mm		Strain Relief	DIP to Cable
CW Industries C2RXG-1618M	0.25 Ám	10 Áin	IDC	Board In Socket (0.3")	16	Unshielded	0.05 in	1.27 mm				Gold	2	0.1 in	2.54 mm	Multiple Ribbon	Strain Relief	DIP to Cable	457.2 mm	1.5 ft
CW Industries C2RXG-1636M	0.25 Ám	10 Áin	IDC	Board In Socket (0.3")	16	Unshielded	0.05 in	1.27 mm	91.44 cm	3 ft		Gold	2	0.1 in	2.54 mm	Multiple Ribbon	Strain Relief	DIP to Cable
CW Industries C2RXG-1436G	0.25 Ám	10 Áin	IDC	Board In Socket (0.3")	14	Unshielded	0.05 in	1.27 mm	91.44 cm	3 ft		Gold	2	0.1 in	2.54 mm		Strain Relief	DIP to Cable
CW Industries C2RXG-1636G	0.25 Ám	10 Áin	IDC	Board In Socket (0.3")	16	Unshielded	0.05 in	1.27 mm	91.44 cm	3 ft		Gold	2	0.1 in	2.54 mm		Strain Relief	DIP to Cable

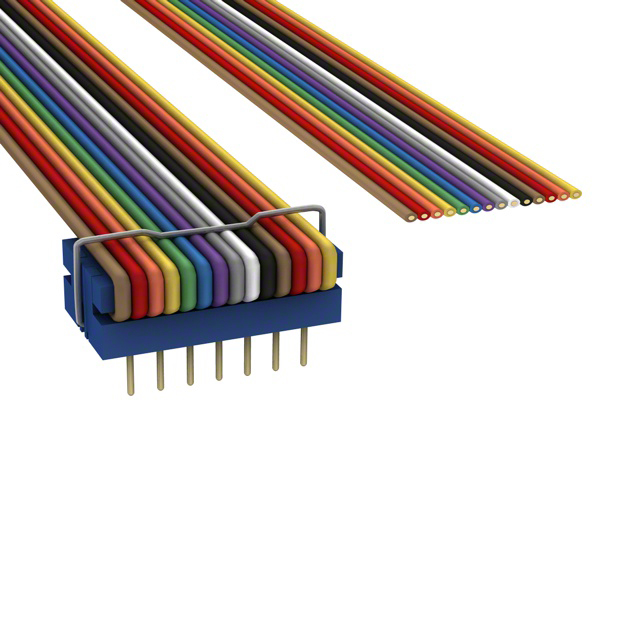

CW Industries C2RXG-1406M	0.25 Ám	10 Áin	IDC	Board In Socket (0.3")	14	Unshielded	0.05 in	1.27 mm	152.4 mm	0.5 '	6 "	Gold	2	0.1 in	2.54 mm	Multiple Ribbon	Strain Relief	DIP to Cable
