77154 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

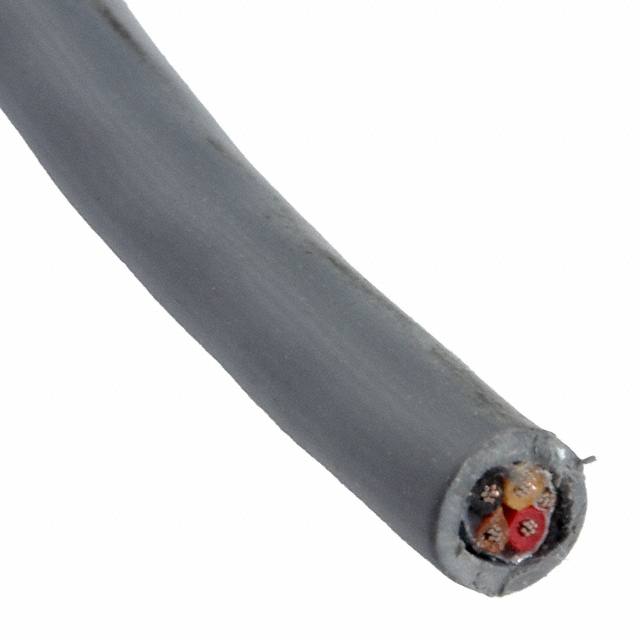

ECOGEN ECOCABLE 28AWG 4COND FOIL MPPE 77154 SL 199 BULK FT
| Part | Shield Material | Shield Coverage | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Cable Type | Conductor Material | Voltage | Jacket Color | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Polyphenylene Ether Modified (mPPE) | 0.157 in | 3.99 mm | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 21915 | 7 | 36 AWG | Foil | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C | 4 | Multi-Conductor | Copper Tinned | 600 V | Slate | 28 AWG | 0.813 mm | 0.032 in |
