PPTC112 Series

Catalog

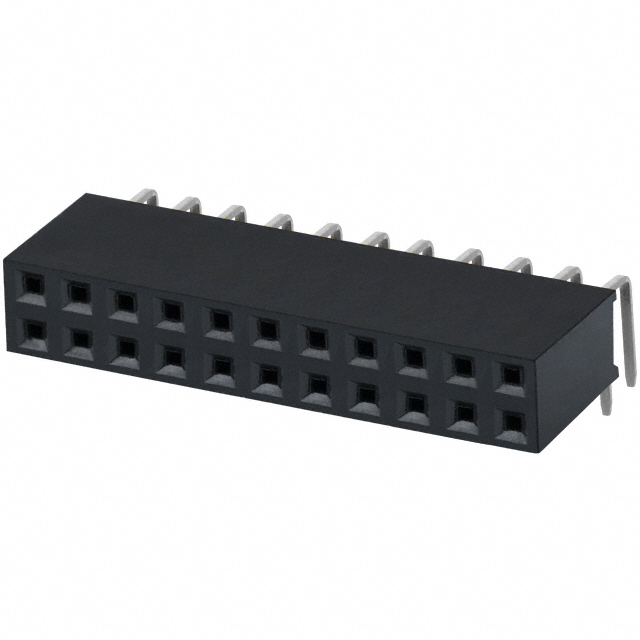

CONN HDR 22POS 0.1 TIN PCB R/A

Part	Contact Shape	Contact Material	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Mounting Type	Contact Length - Post	Contact Length - Post	Connector Type	Contact Type	Number of Rows [custom]	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Termination	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Fastening Type	Contact Finish - Post	Voltage Rating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Height
Sullins Connector Solutions PPTC112LJBN	Square	Phosphor Bronze	Polyester	-40 C	105 ░C	All	Right Angle Through Hole	0.124 in	3.15 mm	Header	Female Socket	2	22	0.1 in	2.54 mm	Black	Solder	0.2 in	5.08 mm	UL94 V-0	Push-Pull	Tin	250 V	3 A	0.1 "	2.54 mm
Sullins Connector Solutions PPTC112KFMS	Square	Phosphor Bronze	Polyester	-40 C	125 °C	All	Surface Mount			Header	Female Socket	2	22	0.1 in	2.54 mm	Black	Solder	0.299 "		UL94 V-0	Push-Pull	Tin	250 V	3 A	0.1 "	2.54 mm	7.6 mm
