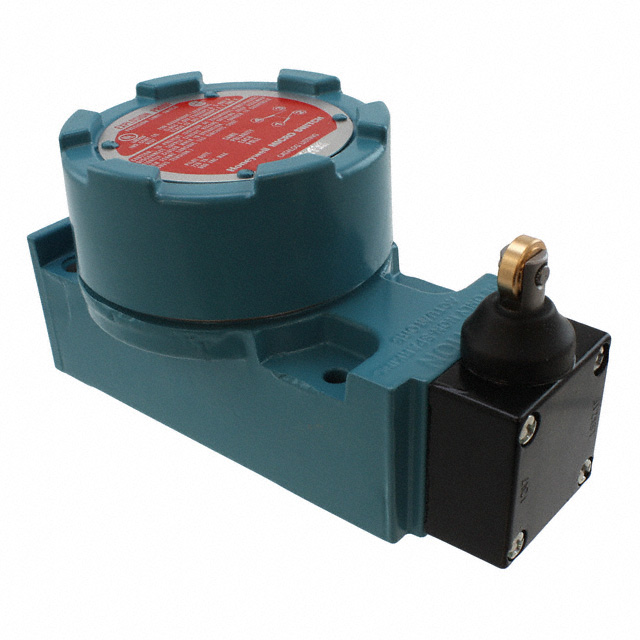

LSXF3 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 10A 120V
| Part | Operating Force | Voltage Rating - AC | Operating Position | Operating Position | Overtravel | Overtravel | Features | Mounting Type | Voltage Rating - DC | Pretravel | Pretravel | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Actuator Type | Current Rating (Amps) | Differential Travel | Differential Travel | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 2720 gf | 120 V | 1.735 in | 44.1 mm | 4.8 mm | 0.19 in | Explosion Proof | Chassis Mount | 115 V | 0.1 in | 2.5 mm | SPDT (DB/DM) | 93 °C | -12 °C | On-Mom | Side Roller Plunger | 10 A 800 mA | 1.1 mm | 0.045 in | Screw Terminal |
Honeywell Sensing and Productivity Solutions | 2720 gf | 120 V | 1.735 in | 44.1 mm | 4.8 mm | 0.19 in | Chassis Mount | 115 V | 0.1 in | 2.5 mm | SPDT (DB/DM) | 93 °C | -12 °C | On-Mom | Side Roller Plunger | 10 A 800 mA | 1.1 mm | 0.045 in | Screw Terminal |
