ID09S33 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

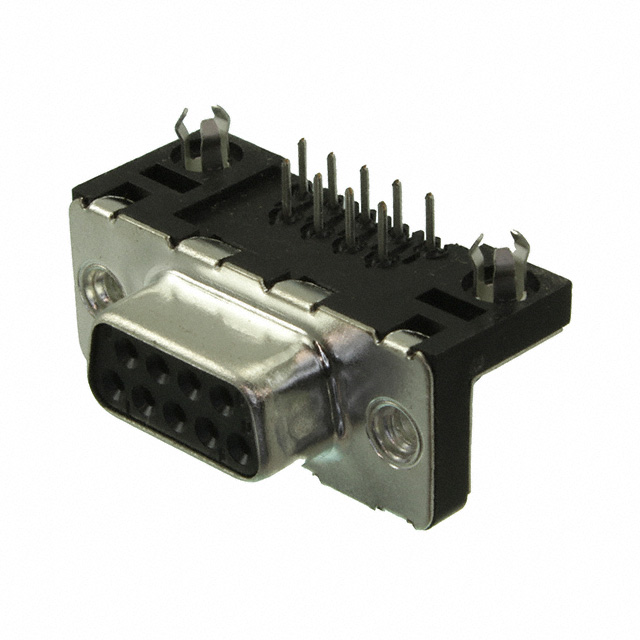

CONN D-SUB RCPT 9POS R/A SLDR
| Part | Dielectric Material | Color | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Termination | Material Flammability Rating | Contact Finish Thickness | Connector Style | Number of Rows [custom] | Features | Current Rating (Amps) | Number of Positions | Contact Type | Backset Spacing | Backset Spacing | Flange Feature | Flange Feature | Contact Finish | Connector Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Polyester | Black | Copper Alloy | 300 VDC | -55 C | 125 °C | 1 | DE E | Right Angle Through Hole | Solder | UL94 V-0 | Flash | D-Sub | 2 | Board Lock Mounting Brackets | 5 A | 9 | Signal | 8.08 mm | 0.318 " | Housing/Shell | 4-40 | Gold | Receptacle Female Sockets | ||
Amphenol ICC (FCI) | Polyester | Black | Copper Alloy | 300 VDC | -55 C | 125 °C | 1 | DE E | Right Angle Through Hole | Solder | UL94 V-0 | Flash | D-Sub | 2 | Board Lock Mounting Brackets | 5 A | 9 | Signal | 8.08 mm | 0.318 " | 4-40 Mating Side Female Screwlock | Gold | Receptacle Female Sockets | |||
Amphenol ICC (FCI) | Polyester | Black | 300 VDC | -55 C | 125 °C | 1 | DE E | Right Angle Through Hole | Solder | Flash | D-Sub | 2 | 5 A | 9 | Signal | 4-40 Mating Side Female Screwlock | Gold | Receptacle Female Sockets | ||||||||
Amphenol ICC (FCI) | Polyester | Black | Copper Alloy | 300 VDC | -55 C | 125 °C | 1 | DE E | Right Angle Through Hole | Solder | UL94 V-0 | Flash | D-Sub | 2 | 5 A | 9 | Signal | 8.08 mm | 0.318 " | 4-40 Mating Side Female Screwlock | Gold | Receptacle Female Sockets | ||||
Amphenol ICC (FCI) | Polyester | Black | Copper Alloy | 300 VDC | -55 C | 125 °C | 1 | DE E | Right Angle Through Hole | Solder | UL94 V-0 | Flash | D-Sub | 2 | Board Lock Mounting Brackets | 5 A | 9 | Signal | 8.08 mm | 0.318 " | 4-40 Mating Side Female Screwlock | Gold | Receptacle Female Sockets | |||
 Amphenol ICC (FCI) | Polyester | Black | Copper Alloy | 300 VDC | -55 C | 125 °C | 1 | DE E | Right Angle Through Hole | Solder | UL94 V-0 | Flash | D-Sub | 2 | Board Lock Mounting Brackets | 5 A | 9 | Signal | 8.08 mm | 0.318 " | Housing/Shell | 4-40 | Gold | Receptacle Female Sockets | ||
Amphenol ICC (FCI) | Polyester | Black | Copper Alloy | 300 VDC | -55 C | 125 °C | 1 | DE E | Right Angle Through Hole | Solder | UL94 V-0 | D-Sub | 2 | Board Lock Mounting Brackets | 5 A | 9 | Signal | 8.08 mm | 0.318 " | 4-40 Mating Side Female Screwlock | Gold | Receptacle Female Sockets | 30 Áin | 0.76 Ám | ||
Amphenol ICC (FCI) | Polyester | Black | 300 VDC | -55 C | 125 °C | 1 | DE E | Right Angle Through Hole | Solder | D-Sub | 2 | Board Lock | 5 A | 9 | Signal | Housing/Shell | 4-40 | Gold | Receptacle Female Sockets | 30 Áin | 0.76 Ám | |||||
Amphenol ICC (FCI) | Polyester | Black | Copper Alloy | 300 VDC | -55 C | 125 °C | 1 | DE E | Right Angle Through Hole | Solder | UL94 V-0 | D-Sub | 2 | Board Lock Mounting Brackets | 5 A | 9 | Signal | 8.08 mm | 0.318 " | Housing/Shell | 4-40 | Gold | Receptacle Female Sockets | 30 Áin | 0.76 Ám | |
Amphenol ICC (FCI) | Polyester | Black | Copper Alloy | 300 VDC | -55 C | 125 °C | 1 | DE E | Right Angle Through Hole | Solder | UL94 V-0 | Flash | D-Sub | 2 | Board Lock Mounting Brackets | 5 A | 9 | Signal | 8.08 mm | 0.318 " | Housing/Shell | 4-40 | Gold | Receptacle Female Sockets |
