19398060 Series
Manufacturer: HARTING
Beta
⌘K

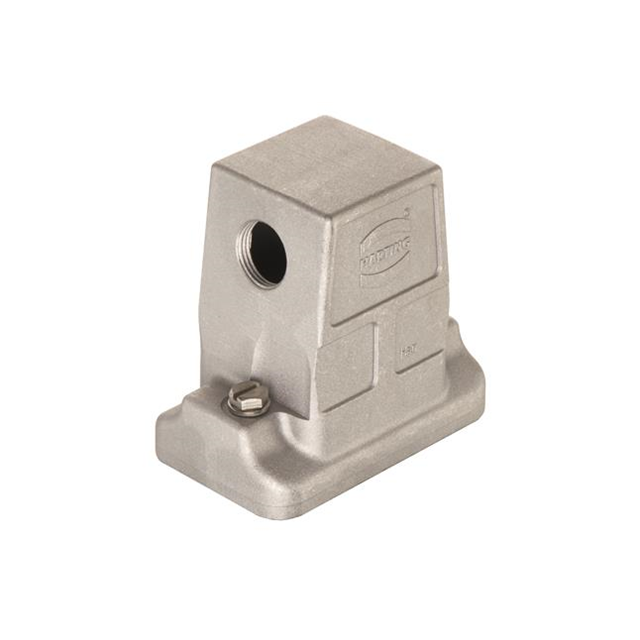

HAN 6 HP DIRECT EMC HOOD, SIDE ENTRY, M40
| Part | Size | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Style | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Lock Location | Ingress Protection | Connector Type | Housing Finish | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 6B | 2.244 " | 93 mm | 3.583 in | 57 mm | 3.661 " | 91 mm | Side Entry | Aluminum Die Cast | 125 °C | -40 C | Screw Locks on Hood | IP66 IP68 IP69K | Hood | EMC Coating | |
HARTING | 6B | 2.244 " | 93 mm | 3.583 in | 57 mm | 3.661 " | 91 mm | Side Entry | Aluminum Die Cast | 125 °C | -40 C | Screw Locks on Hood | IP66 IP68 IP69K | Hood | EMC Coating | M20 |
HARTING | 6B | 2.244 " | 93 mm | 3.583 in | 57 mm | 3.661 " | 91 mm | Side Entry | Aluminum Die Cast | 125 °C | -40 C | Screw Locks on Hood | IP66 IP68 IP69K | Hood | EMC Coating | M32 |

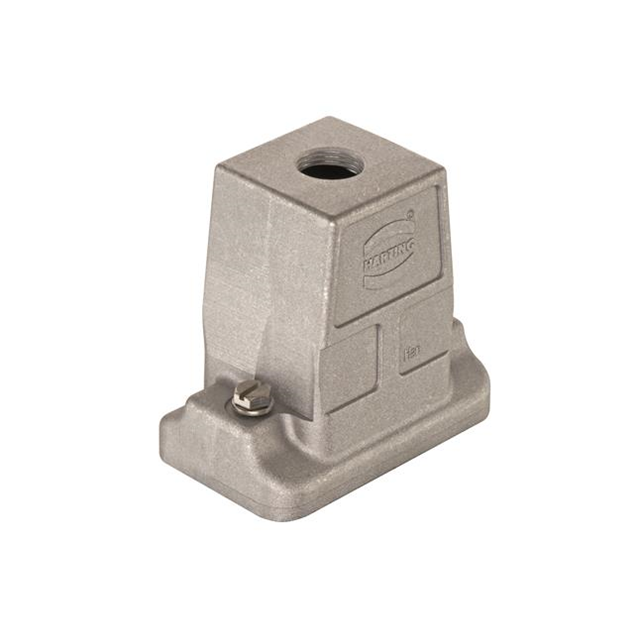

 HARTING | 6B | 2.244 " | 93 mm | 3.543 " | 57 mm | 3.661 " | 90 mm | Top Entry | Aluminum Die Cast | 125 °C | -40 C | Screw Locks on Hood | IP66 IP68 IP69K | Hood | EMC Coating | M25 |
