CHS-04T Series

Catalog

DIP SWITCH, 4POS, SPST, SLIDE, SMD

Part	Electrical Life	Length	Length	Body Material	Actuator Level	Circuit	Termination Style	Features	Voltage Rating	Mounting Type	Contact Material	Actuator Type	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Pitch	Number of Positions	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)

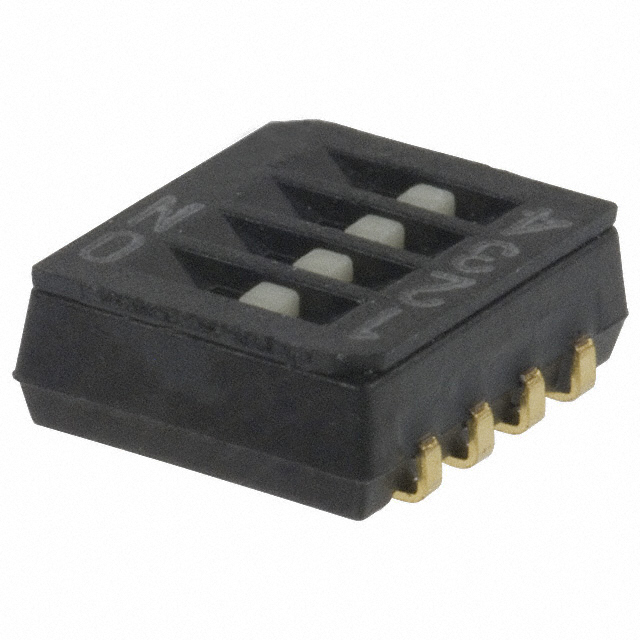

Nidec Components Corporation CHS-04TA	2000 Steps	6.6 mm	0.26 in	Polyphenylene Sulfide (PPS)	Flush Recessed	SPST	J Lead	Tape Seal	6 V	Surface Mount	Copper Alloy	Slide (Standard)	0.098 in	2.5 mm	0.05 "	1.27 mm	Half	4	Gold	85 °C	-40 C	100 mA
Nidec Components Corporation CHS-04TA1	2000 Steps	6.6 mm	0.26 in	Polyphenylene Sulfide (PPS)	Flush Recessed	SPST	J Lead		6 V	Surface Mount	Copper Alloy	Slide (Standard)	0.098 in	2.5 mm	0.05 "	1.27 mm	Half	4	Gold	85 °C	-40 C	100 mA
Nidec Components Corporation CHS-04TB1	2000 Steps	6.6 mm	0.26 in	Polyphenylene Sulfide (PPS)	Flush Recessed	SPST	Gull Wing		6 V	Surface Mount	Copper Alloy	Slide (Standard)	0.098 in	2.5 mm	0.05 "	1.27 mm	Half	4	Gold	85 °C	-40 C	100 mA

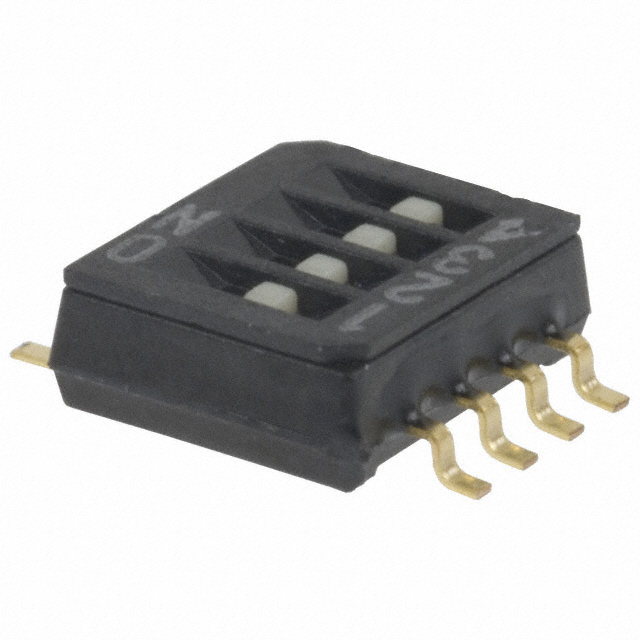

Nidec Components Corporation CHS-04TB	2000 Steps	6.6 mm	0.26 in	Polyphenylene Sulfide (PPS)	Flush Recessed	SPST	Gull Wing	Tape Seal	6 V	Surface Mount	Copper Alloy	Slide (Standard)	0.098 in	2.5 mm	0.05 "	1.27 mm	Half	4	Gold	85 °C	-40 C	100 mA
