SSI-LXR1612 Series

Catalog

LED 3MM FLUSH SUP RED DIFF PNLMT

Part	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Transparency	Wavelength - Peak	Lens Size	Lens Size	Voltage	Current	Panel Cutout Shape	Lens Color	Lamp Color	Viewing Angle	Type	Lens Style	Millicandela Rating	Termination Style

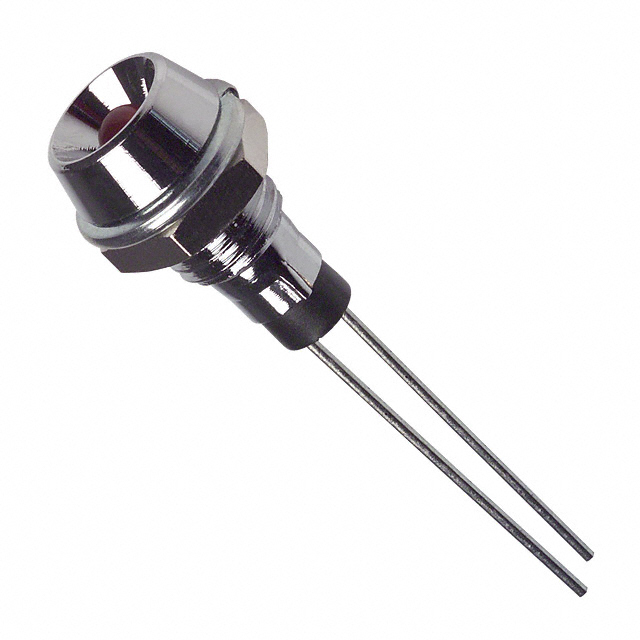

Lumex Opto/Components Inc. SSI-LXR1612SRD	6.1 mm	0.24 in	Diffused	660 nm	3 mm	T-1	1.8 V	30 mA	Round	Red	Red	30 °	LED	Round with Flat Top	80 mcd
Lumex Opto/Components Inc. SSI-LXR1612GD-150	6.1 mm	0.24 in	Diffused	565 nm	3 mm	T-1	2.2 V	25 mA	Round	Green	Green	60 °	LED	Round with Flat Top	30 mcd

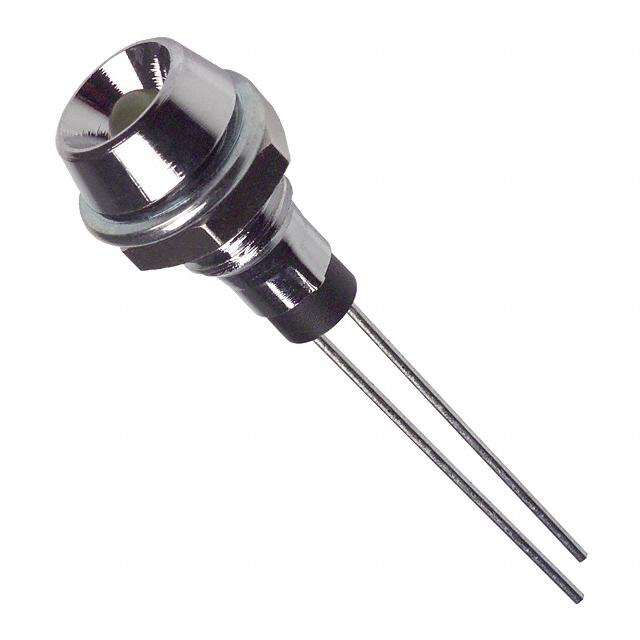

Lumex Opto/Components Inc. SSI-LXR1612YD	6.1 mm	0.24 in	Diffused	585 nm	3 mm	T-1	2.1 V	30 mA	Round	Yellow	Yellow	60 °	LED	Round with Flat Top	30 mcd
Lumex Opto/Components Inc. SSI-LXR1612GD-250			Diffused	565 nm	3 mm	T-1	2.2 V	20 mA	Round	Green	Green	60 °	LED	Round with Domed Top	30 mcd	Wire Leads
Lumex Opto/Components Inc. SSI-LXR1612ID	6.1 mm	0.24 in	Diffused	635 nm	3 mm	T-1	2 V	30 mA	Round	Red	Red	60 °	LED	Round with Flat Top	30 mcd
Lumex Opto/Components Inc. SSI-LXR1612GD	6.1 mm	0.24 in	Diffused	565 nm	3 mm	T-1	2.2 V	25 mA	Round	Green	Green	60 °	LED	Round with Flat Top	30 mcd
Lumex Opto/Components Inc. SSI-LXR1612ID-150			Diffused	635 nm	3 mm	T-1	2 V	30 mA	Round	Red	Red	60 °	LED	Round with Domed Top	30 mcd	Wire Leads - 6.000" (152.40mm)
Lumex Opto/Components Inc. SSI-LXR1612SRD12V6
Lumex Opto/Components Inc. SSI-LXR1612SOD-150			Diffused	610 nm	3 mm	T-1	2 V	20 mA	Round	Orange	Orange	60 °	LED	Round with Domed Top	900 mcd
