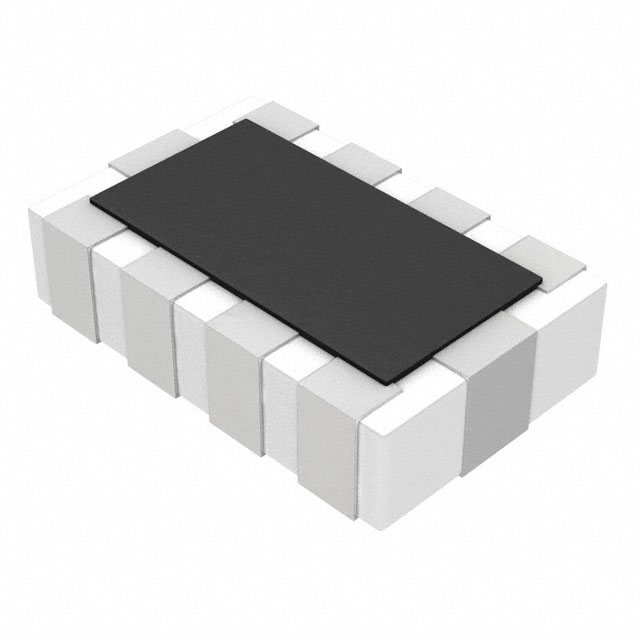

EZA-CT Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FILTER RC 1 KOHM/22PF SMD
| Part | Filter Order | Values | Type | Applications | Number of Channels | Technology | Height [z] | Height [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | ESD Protection | Resistance - Channel (Ohms) | Mounting Type | Voltage - Rated | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Resistance - Channel (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 1st | 1 kOhms 22 pF | Low Pass | Data Lines for Mobile Devices | 4 | RC | 0.026 in | 0.65 mm | 2 mm | 0.079 in | 0.049 in | 1.25 mm | 1k | Surface Mount | 12 VDC | 0805 | -25 °C | 85 °C | ||
Panasonic Industrial Automation Sales | 1st | 22 pF 47 Ohms | Low Pass | Data Lines for Mobile Devices | 4 | RC | 0.026 in | 0.65 mm | 2 mm | 0.079 in | 0.049 in | 1.25 mm | Surface Mount | 12 VDC | 0805 | -25 °C | 85 °C | 47 Ohms | ||
Panasonic Industrial Automation Sales | 1st | 10 pF 47 Ohms | Low Pass | Data Lines for Mobile Devices | 4 | RC | 0.026 in | 0.65 mm | 2 mm | 0.079 in | 0.049 in | 1.25 mm | Surface Mount | 12 VDC | 0805 | -25 °C | 85 °C | 47 Ohms | ||
Panasonic Industrial Automation Sales | 1st | 10 pF 100 Ohms | Low Pass | Data Lines for Mobile Devices | 4 | RC | 0.026 in | 0.65 mm | 2 mm | 0.079 in | 0.049 in | 1.25 mm | Surface Mount | 12 VDC | 0805 | -25 °C | 85 °C | 100 Ohms |
