S-1335 Series
Manufacturer: ABLIC Inc.
Beta
⌘K

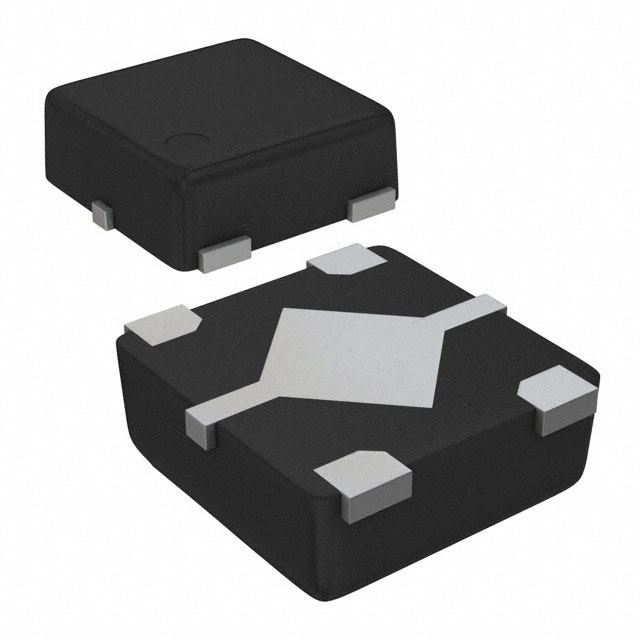

IC REG LINEAR 150MA HSNT4-B
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Protection Features | Supplier Device Package | Control Features | Current - Quiescent (Iq) | Mounting Type | Voltage - Input (Max) [Max] | Current - Output | Number of Regulators | Package / Case | Output Configuration | Voltage Dropout (Max) [Max] | PSRR [Max] | PSRR [Min] | Voltage - Output (Min/Fixed) | Current - Supply (Max) [Max] | Voltage Dropout (Max) | Voltage - Output (Min/Fixed) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ABLIC Inc. | 85 C | -40 ¯C | Overcurrent Soft-Start | HSNT-4-B | Enable | 54 µA | Surface Mount | 5.5 V | 150 mA | 1 | 4-SMD Flat Leads Exposed Pad | Positive | |||||||
ABLIC Inc. | 85 C | -40 ¯C | Overcurrent Soft-Start | HSNT-4-B | Enable | 1 µA | Surface Mount | 5.5 V | 150 mA | 1 | 4-SMD Flat Leads Exposed Pad | Positive | 0.127 V | 80 dB | 70 dB | 2.4 V | 54 µA | ||
ABLIC Inc. | 85 C | -40 ¯C | Overcurrent Soft-Start | HSNT-4-B | Enable | 1 µA | Surface Mount | 5.5 V | 150 mA | 1 | 4-SMD Flat Leads Exposed Pad | Positive | 0.127 V | 80 dB | 70 dB | 2.3 V | 54 µA | ||
 ABLIC Inc. | 85 C | -40 ¯C | Overcurrent Soft-Start | SOT-23-5 | Enable | 1 µA | Surface Mount | 5.5 V | 150 mA | 1 | SC-74A SOT-753 | Positive | 0.127 V | 80 dB | 70 dB | 2.1 V | 54 µA | ||
 ABLIC Inc. | 85 C | -40 ¯C | Overcurrent Soft-Start | HSNT-4-B | Enable | 1 µA | Surface Mount | 5.5 V | 150 mA | 1 | 4-SMD Flat Leads Exposed Pad | Positive | 80 dB | 70 dB | 1.2 V | 54 µA | 0.224 V | ||
 ABLIC Inc. | 85 C | -40 ¯C | Overcurrent Soft-Start | SC-82AB | Enable | 1 µA | Surface Mount | 5.5 V | 150 mA | 1 | SC-82A SOT-343 | Positive | 80 dB | 70 dB | 54 µA | 0.14 V | 1.85 V | ||
 ABLIC Inc. | 85 C | -40 ¯C | Overcurrent Soft-Start | HSNT-4-B | Enable | 1 µA | Surface Mount | 5.5 V | 150 mA | 1 | 4-SMD Flat Leads Exposed Pad | Positive | 80 dB | 70 dB | 1.2 V | 54 µA | 0.224 V | ||
ABLIC Inc. | 85 C | -40 ¯C | Overcurrent Soft-Start | HSNT-4-B | Enable | 1 µA | Surface Mount | 5.5 V | 150 mA | 1 | 4-SMD Flat Leads Exposed Pad | Positive | 0.103 V | 80 dB | 65 dB | 3.1 V | 54 µA | ||
ABLIC Inc. | 85 C | -40 ¯C | Overcurrent Soft-Start | SC-82AB | Enable | 1 µA | Surface Mount | 5.5 V | 150 mA | 1 | SC-82A SOT-343 | Positive | 80 dB | 70 dB | 54 µA | 0.14 V | 1.9 V | ||
ABLIC Inc. | 85 C | -40 ¯C | Overcurrent Soft-Start | HSNT-4-B | Enable | 1 µA | Surface Mount | 5.5 V | 150 mA | 1 | 4-SMD Flat Leads Exposed Pad | Positive | 0.35 V | 80 dB | 70 dB | 1 V | 54 µA |
