1971905 Series

Catalog

CONN HOUSING PL 6 POS 3.3MM CRIMP ST CABLE MOUNT YELLOW BAG

Part	Note	Connector Type	Contact Termination	Number of Positions	Row Spacing	Row Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Color	Contact Type	Insulation Material	Mounting Type	Pitch	Pitch	Fastening Type
TE Connectivity AMP Connectors 4-1971905-3	Contacts Not Included	Plug	Crimp	6	5.2 mm	0.205 in	-30 ░C	105 ░C	2	Yellow	Female Socket	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.13 in	3.3 mm	Latch Lock

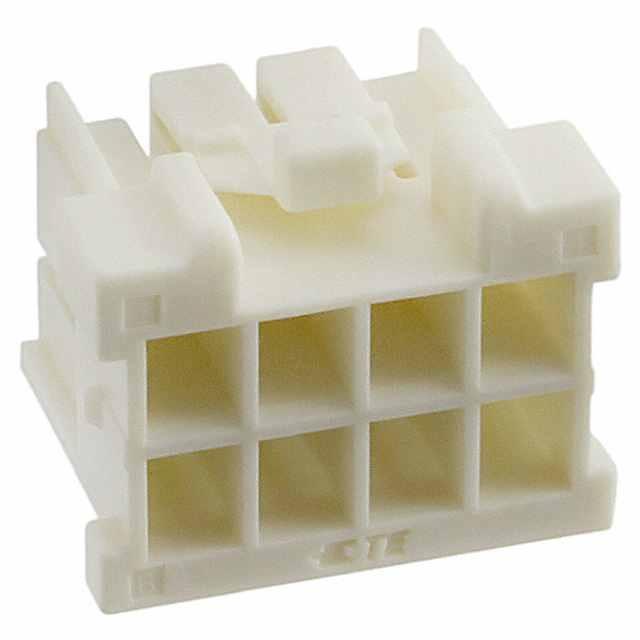

TE Connectivity AMP Connectors 1-1971905-4	Contacts Not Included	Plug	Crimp	8	5.2 mm	0.205 in	-30 ░C	105 ░C	2	Natural	Female Socket	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.13 in	3.3 mm	Latch Lock

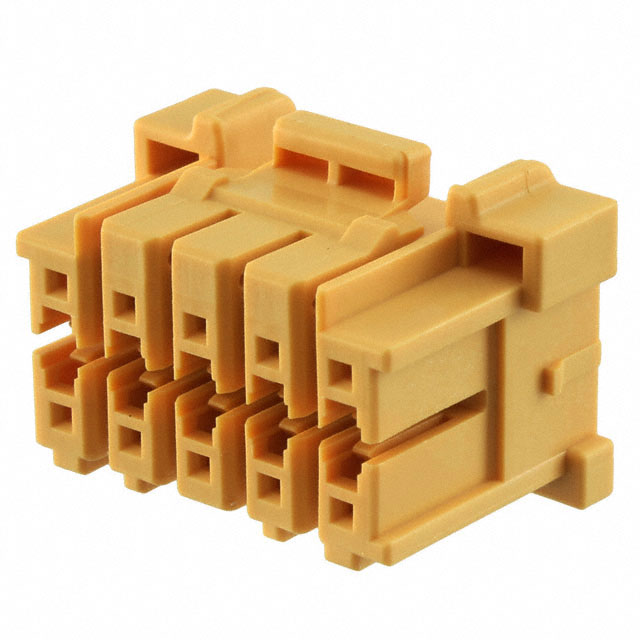

TE Connectivity AMP Connectors 4-1971905-5	Contacts Not Included	Plug	Crimp	10	5.2 mm	0.205 in	-30 ░C	105 ░C	2	Yellow	Female Socket	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.13 in	3.3 mm	Latch Lock
