83654 Series
Manufacturer: Belden Inc.
Beta
⌘K

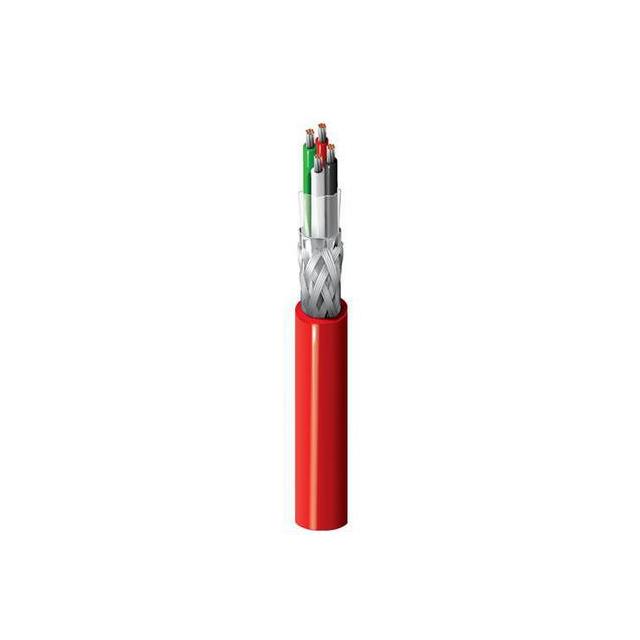

CABLE 4COND 18AWG RED SHLD
| Part | Shield Material | Shield Coverage | Voltage | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Jacket (Insulation) Material | Cable Type | Conductor Material | Jacket Color | Number of Conductors | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Usage | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 300 VDC | UL Style CMP | 0.014 in | 0.356 mm | 30 AWG | 19 | 0.195 " | 4.95 mm | 152.4 m | 500 ft | Fluorinated Ethylene-Propylene (FEP) Plenum | Multi-Conductor | Copper Tinned | Red | 4 | 18 AWG | -70 °C | 200 °C | Braid Foil | Audio Control Instrumentation | Fluorinated Ethylene-Propylene (FEP) |
Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 300 VDC | UL Style CMP | 0.014 in | 0.356 mm | 30 AWG | 19 | 0.195 " | 4.95 mm | Fluorinated Ethylene-Propylene (FEP) Plenum | Multi-Conductor | Copper Tinned | Red | 4 | 18 AWG | -70 °C | 200 °C | Braid Foil | Audio Control Instrumentation | Fluorinated Ethylene-Propylene (FEP) |
