AWH 30G Series

Catalog

CONN HEADER VERT 30POS 2.54MM

Part	Contact Shape	Current Rating (Amps)	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Features	Shrouding	Fastening Type	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Material	Insulation Height [z]	Insulation Height [z]	Contact Type	Number of Rows	Termination	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Connector Type	Style	Insulation Material	Material Flammability Rating	Number of Positions Loaded	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Wire Type	Cable Termination	Color	Row Spacing [x]	Row Spacing	Contact Finish

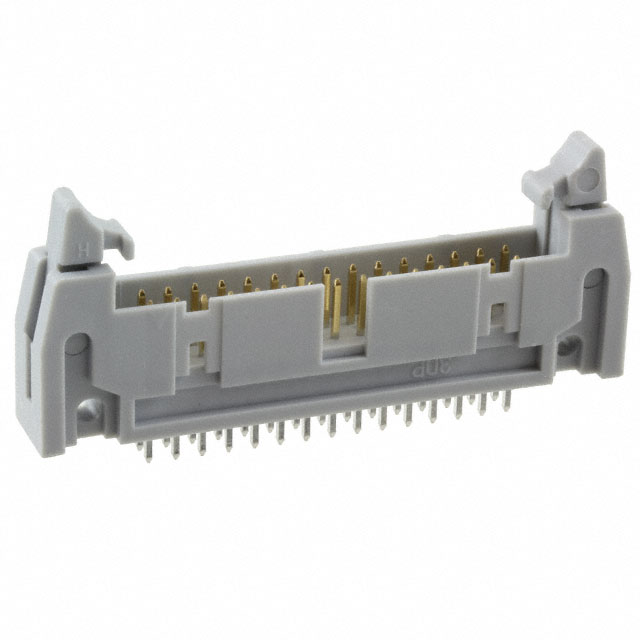

Assmann WSW Components AWH 30G-0222-T	Square	3 A	Gray	2.54 mm	0.1 in	Gold	Keying Slot	Shrouded - 4 Wall	Latch Lock/Eject Hooks Short	0.13 in	3.3 mm	Through Hole	Brass	17 mm	0.669 "	Male Pin	2	Solder	0.1 in	2.54 mm	Flash	Tin	Header	Board to Cable/Wire	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	All	30	-40 °C	105 ░C

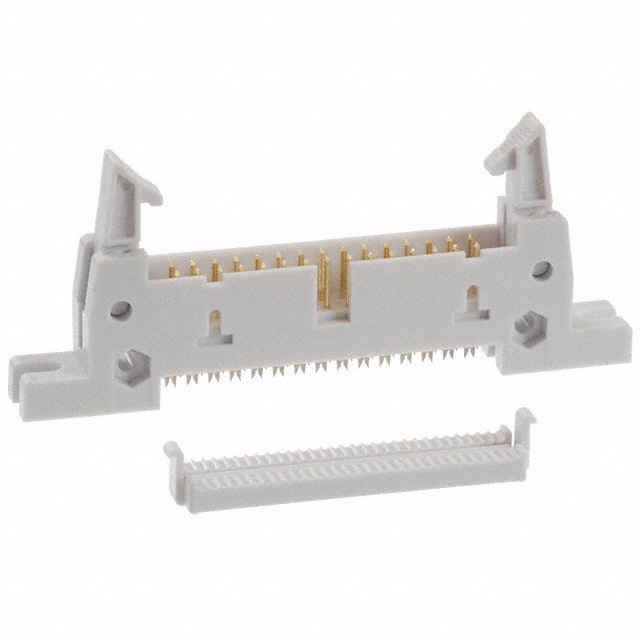

Assmann WSW Components AWH30G-E232-IDC-R							Feed Through		Latch Lock/Eject Hooks Long							Male Pin	2						Header					30			2.54 mm	0.1 in	Ribbon Cable	IDC	Gray	0.1 in	2.54 mm	Gold

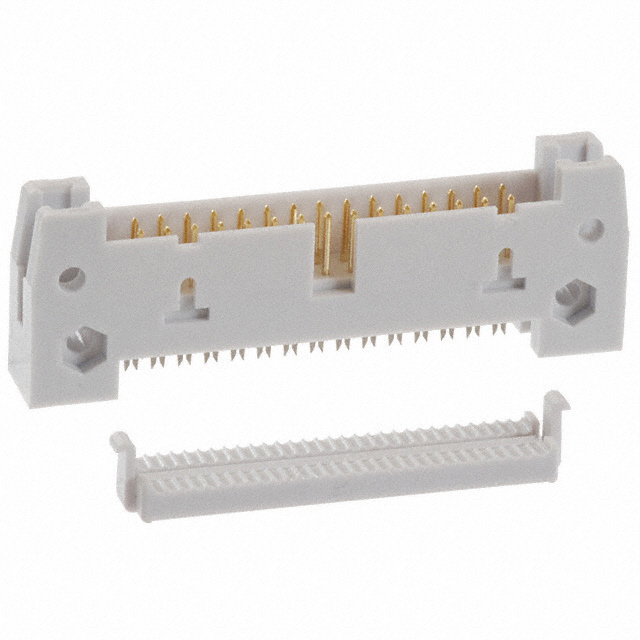

Assmann WSW Components AWH30G-0202-IDC-R							Feed Through					Free Hanging (In-Line)				Male Pin	2						Header					30			2.54 mm	0.1 in	Ribbon Cable	IDC	Gray	0.1 in	2.54 mm	Gold
Assmann WSW Components AWH 30G-0232-IDC							Feed Through		Latch Lock/Eject Hooks Long			Free Hanging (In-Line)				Male Pin	2						Header					30			2.54 mm	0.1 in	Ribbon Cable	IDC	Gray	0.1 in	2.54 mm	Gold

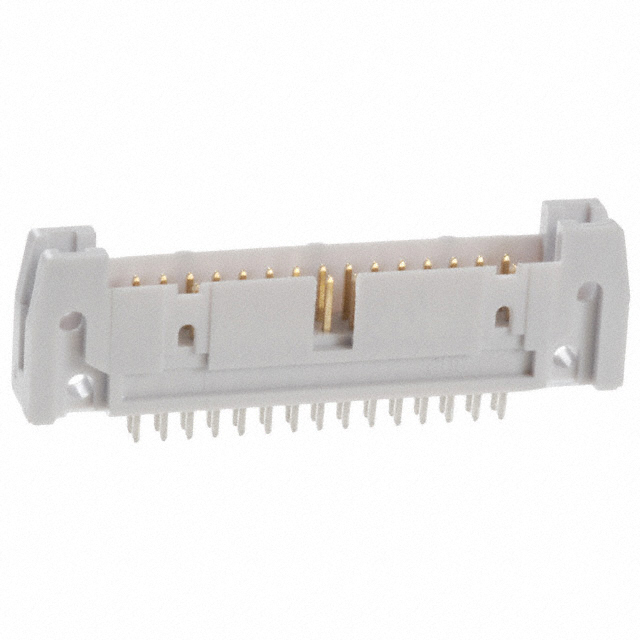

Assmann WSW Components AWH30G-0202-T-R	Square	3 A	Gray	2.54 mm	0.1 in	Gold	Keying Slot	Shrouded - 4 Wall	Push-Pull	0.13 in	3.3 mm	Through Hole	Brass	17 mm	0.669 "	Male Pin	2	Solder	0.1 in	2.54 mm	Flash	Tin	Header	Board to Cable/Wire	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	All	30	-40 °C	105 ░C

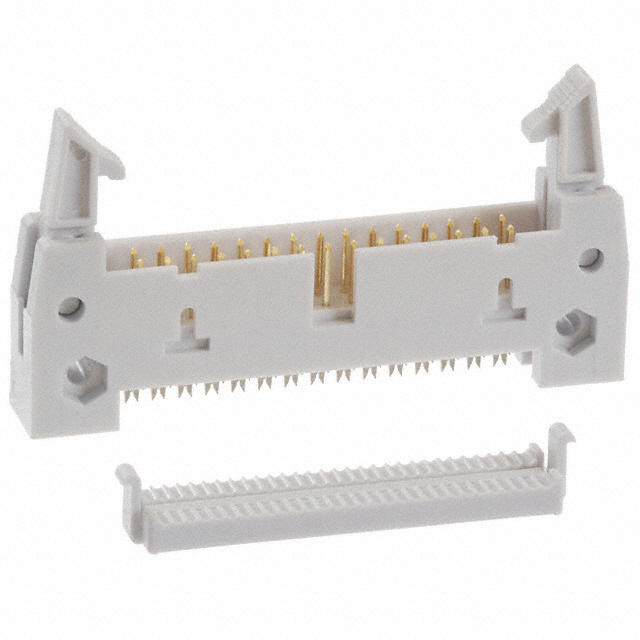

Assmann WSW Components AWH30G-0232-IDC-R							Feed Through		Latch Lock/Eject Hooks Long			Free Hanging (In-Line)				Male Pin	2						Header					30			2.54 mm	0.1 in	Ribbon Cable	IDC	Gray	0.1 in	2.54 mm	Gold
Assmann WSW Components AWH 30G-E222-IDC							Feed Through		Latch Lock/Eject Hooks Short							Male Pin	2						Header					30			2.54 mm	0.1 in	Ribbon Cable	IDC	Gray	0.1 in	2.54 mm	Gold
