RITS Plug Connector Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

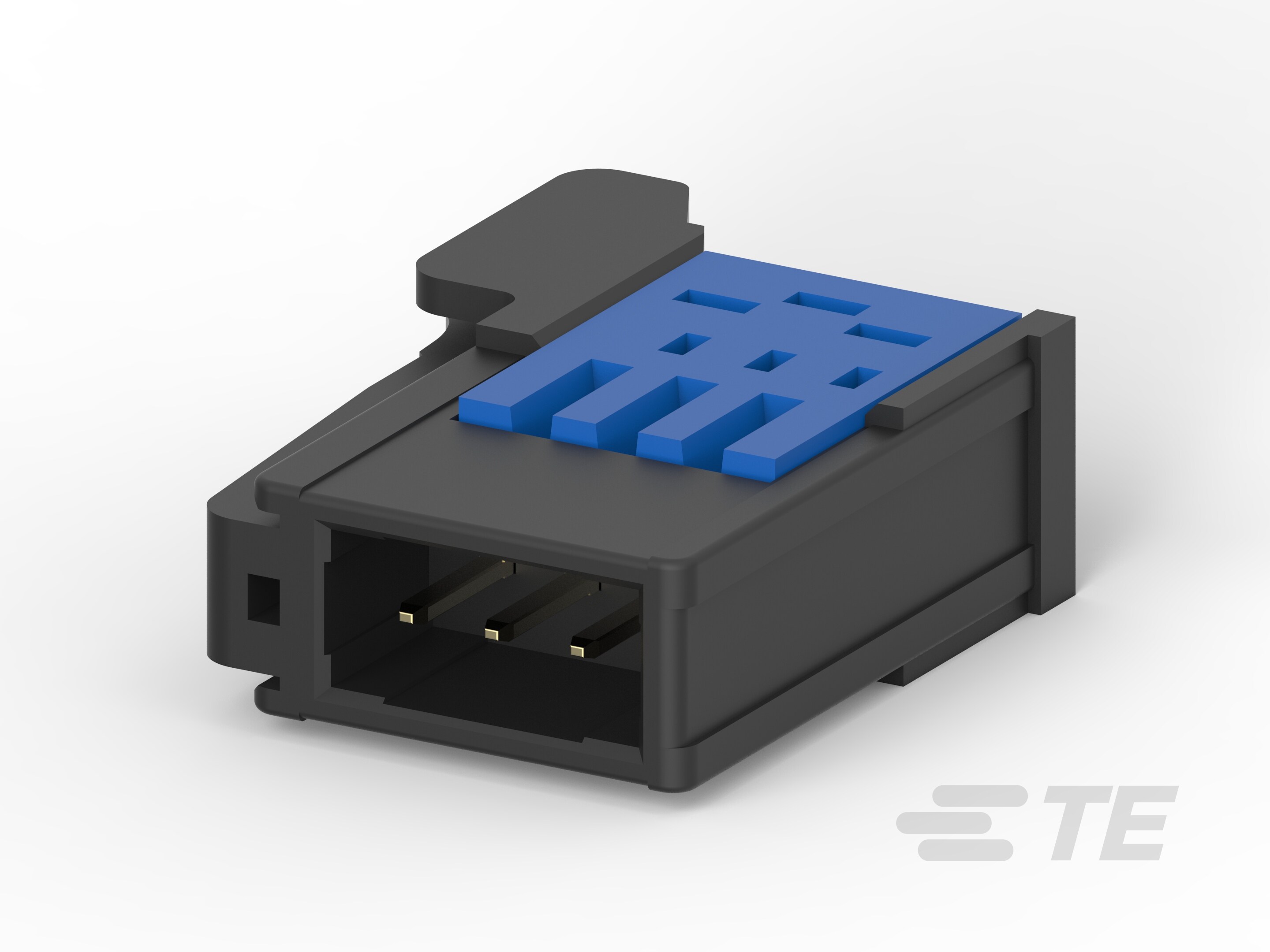

WIRE-TO-BOARD CONNECTOR, BLUE, RITS SERIES, IDC / IDT, PLUG, 3, 4 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES
| Part | Connector Type | Wire Gauge [Min] | Wire Gauge [Max] | Cable Termination | Pitch [x] | Pitch [x] | Contact Type | Mounting Type | Contact Finish | Color | Fastening Type | Wire Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Plug | 16 AWG | 18 AWG | IDC | 0.079 in | 2 mm | Male Pin | Free Hanging (In-Line) | Gold | Black | Latch Lock | Discrete | 0.203 çm | 8 µin | 1 | |
 TE Connectivity AMP Connectors | Plug | 16 AWG | 18 AWG | IDC | 0.079 in | 2 mm | Male Pin | Free Hanging (In-Line) | Gold | Black | Latch Lock | Discrete | 0.203 çm | 8 µin | 1 | 7 |
 TE Connectivity AMP Connectors | Plug | 14 AWG | 16 AWG | IDC | 0.079 in | 2 mm | Male Pin | Free Hanging (In-Line) | Gold | Black | Latch Lock | Discrete | 0.203 çm | 8 µin | 1 | 4 |
 TE Connectivity AMP Connectors | Plug | 17 AWG | 18 AWG | IDC | 0.079 in | 2 mm | Male Pin | Free Hanging (In-Line) | Gold | Black | Latch Lock | Discrete | 0.203 çm | 8 µin | 1 | 8 |
 TE Connectivity AMP Connectors | Plug | 19 AWG | 23 AWG | IDC | 0.079 in | 2 mm | Male Pin | Free Hanging (In-Line) | Gold | Black | Latch Lock | Discrete | 0.203 çm | 8 µin | 1 | 7 |
 TE Connectivity AMP Connectors | Plug | 17.5 AWG | 19 AWG | IDC | 0.079 in | 2 mm | Male Pin | Free Hanging (In-Line) | Gold | Black | Latch Lock | Discrete | 0.203 çm | 8 µin | 1 | 6 |
 TE Connectivity AMP Connectors | Plug | 14 AWG | 16 AWG | IDC | 0.079 in | 2 mm | Male Pin | Free Hanging (In-Line) | Gold | Black | Latch Lock | Discrete | 0.203 çm | 8 µin | 1 | |
 TE Connectivity AMP Connectors | Plug | 16 AWG | 18 AWG | IDC | 0.079 in | 2 mm | Male Pin | Free Hanging (In-Line) | Gold | Black | Latch Lock | Discrete | 0.203 çm | 8 µin | 1 | 8 |
 TE Connectivity AMP Connectors | Plug | 17.5 AWG | 19 AWG | IDC | 0.079 in | 2 mm | Male Pin | Free Hanging (In-Line) | Gold | Black | Latch Lock | Discrete | 0.203 çm | 8 µin | 1 | 4 |
 TE Connectivity AMP Connectors | Plug | 19 AWG | 23 AWG | IDC | 0.079 in | 2 mm | Male Pin | Free Hanging (In-Line) | Gold | Black | Latch Lock | Discrete | 0.203 çm | 8 µin | 1 | 4 |
