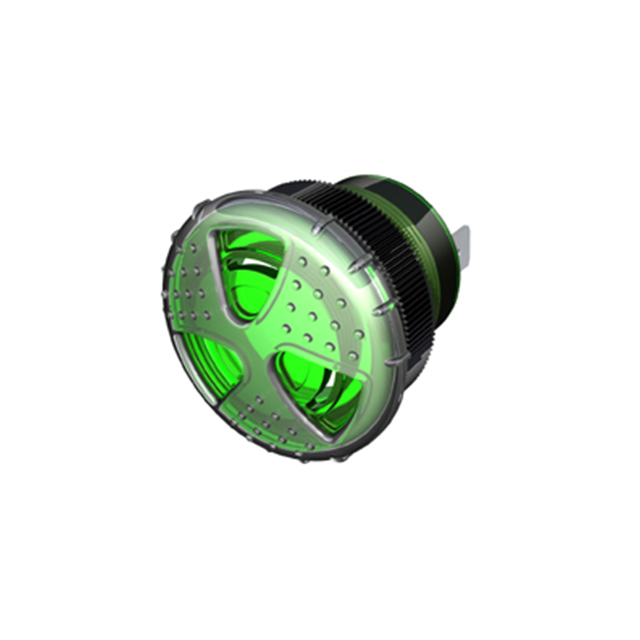

TLHO-V88G Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER 35.81MM PNL MNT
| Part | Sound Pressure Level (SPL) | Termination | Termination | Termination | Frequency | Mounting Type | Port Location | Approval Agency | Input Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Ingress Protection | Driver Circuitry | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Mode | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Voltage Range [Max] | Voltage Range [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | 103 dB | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | 2.9 kHz | Panel Mount | Top | UL UR | DC | 1.25 " | 31.75 mm | IP68 - Dust Tight Waterproof | Indicator Internally Driven | 1.41 in | 35.81 mm | Whooping | 50 mA | 110 mA | 30 V | 9 V |
 Floyd Bell Inc | 103 dB | 0.25 " | Quick Connect Tab | 6.35 mm | 2.9 kHz | Panel Mount | Top | UL UR | DC | 1.25 " | 31.75 mm | IP68 - Dust Tight Waterproof | Indicator Internally Driven | 1.41 in | 35.81 mm | Whooping | 50 mA | 110 mA | 30 V | 9 V |
