2842243 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

14P,2MM,SHRD HDR,DRVT,SMD,SN,TB

Part	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]	Style	Fastening Type	Mounting Type	Contact Type	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Shape	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Finish - Post	Current Rating (Amps)	Voltage Rating	Features	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Connector Type	Material Flammability Rating	Contact Material	Number of Positions
TE Connectivity Raychem Cable Protection 1-2842243-4	Solder	0.079 in	2 mm	14	-40 °C	105 ░C	0.142 in	3.6 mm	6.4 mm	0.252 in	Board to Board Cable	Detent Lock	Surface Mount	Male Pin	All	2 çm	78.7 çin	2	Square	Shrouded - 4 Wall	78.7 µin	2 µm	Black	Tin	2 A	125 VAC	Pick and Place	0.079 in	2 mm	Thermoplastic	Header	UL94 V-0	Copper Alloy
TE Connectivity Raychem Cable Protection 4-2842243-0	Solder	0.079 in	2 mm	40	-40 °C	105 ░C	0.142 in	3.6 mm	6.4 mm	0.252 in	Board to Board Cable	Detent Lock	Surface Mount	Male Pin	All	2 çm	78.7 çin	2	Square	Shrouded - 4 Wall	78.7 µin	2 µm	Black	Tin	2 A	125 VAC	Pick and Place	0.079 in	2 mm	Thermoplastic	Header	UL94 V-0	Copper Alloy
TE Connectivity Raychem Cable Protection 3-2842243-0	Solder	0.079 in	2 mm	30	-40 °C	105 ░C	0.142 in	3.6 mm	6.4 mm	0.252 in	Board to Board Cable	Detent Lock	Surface Mount	Male Pin	All	2 çm	78.7 çin	2	Square	Shrouded - 4 Wall	78.7 µin	2 µm	Black	Tin	2 A	125 VAC	Pick and Place	0.079 in	2 mm	Thermoplastic	Header	UL94 V-0	Copper Alloy
TE Connectivity Raychem Cable Protection 4-2842243-4	Solder	0.079 in	2 mm	44	-40 °C	105 ░C	0.142 in	3.6 mm	6.4 mm	0.252 in	Board to Board Cable	Detent Lock	Surface Mount	Male Pin	All	2 çm	78.7 çin	2	Square	Shrouded - 4 Wall	78.7 µin	2 µm	Black	Tin	2 A	125 VAC	Pick and Place	0.079 in	2 mm	Thermoplastic	Header	UL94 V-0	Copper Alloy

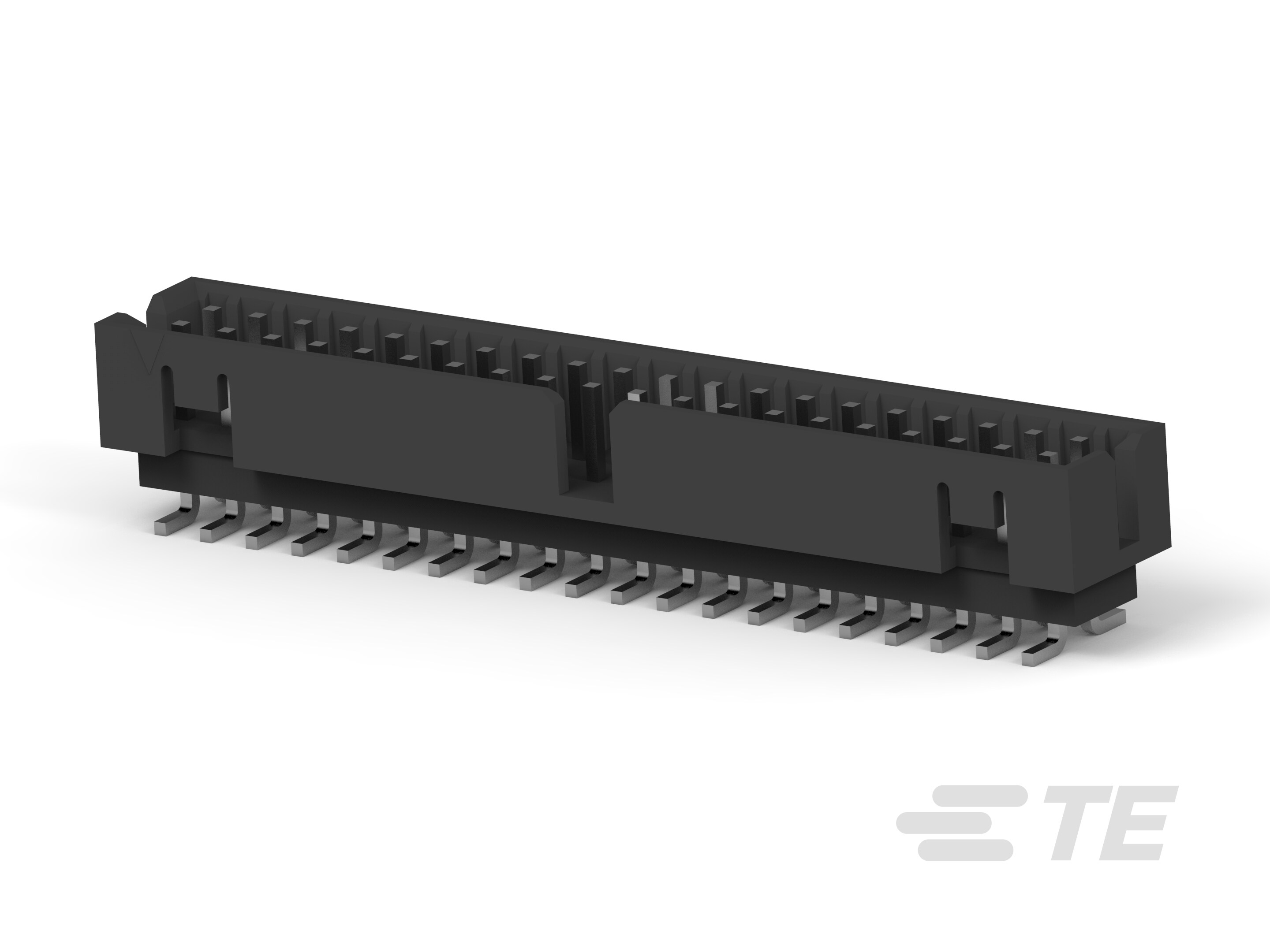

TE Connectivity Raychem Cable Protection 5-2842243-0	Solder	0.079 in	2 mm	50	-40 °C	105 ░C	0.142 in	3.6 mm	6.4 mm	0.252 in	Board to Board Cable	Detent Lock	Surface Mount	Male Pin	All	2 çm	78.7 çin	2	Square	Shrouded - 4 Wall	78.7 µin	2 µm	Black	Tin	2 A	125 VAC	Pick and Place	0.079 in	2 mm	Thermoplastic	Header	UL94 V-0	Copper Alloy
TE Connectivity Raychem Cable Protection 2-2842243-6	Solder	0.079 in	2 mm	26	-40 °C	105 ░C	0.142 in	3.6 mm	6.4 mm	0.252 in	Board to Board Cable	Detent Lock	Surface Mount	Male Pin	All	2 çm	78.7 çin	2	Square	Shrouded - 4 Wall	78.7 µin	2 µm	Black	Tin	2 A	125 VAC	Pick and Place	0.079 in	2 mm	Thermoplastic	Header	UL94 V-0	Copper Alloy
TE Connectivity Raychem Cable Protection 2-2842243-4	Solder	0.079 in	2 mm	24	-40 °C	105 ░C	0.142 in	3.6 mm	6.4 mm	0.252 in	Board to Board Cable	Detent Lock	Surface Mount	Male Pin	All	2 çm	78.7 çin	2	Square	Shrouded - 4 Wall	78.7 µin	2 µm	Black	Tin	2 A	125 VAC	Pick and Place	0.079 in	2 mm	Thermoplastic	Header	UL94 V-0	Copper Alloy
TE Connectivity Raychem Cable Protection 3-2842243-4	Solder	0.079 in	2 mm	34	-40 °C	105 ░C	0.142 in	3.6 mm	6.4 mm	0.252 in	Board to Board Cable	Detent Lock	Surface Mount	Male Pin	All	2 çm	78.7 çin	2	Square	Shrouded - 4 Wall	78.7 µin	2 µm	Black	Tin	2 A	125 VAC	Pick and Place	0.079 in	2 mm	Thermoplastic	Header	UL94 V-0	Copper Alloy
TE Connectivity Raychem Cable Protection 1-2842243-6	Solder	0.079 in	2 mm		-40 °C	105 ░C	0.142 in	3.6 mm	6.4 mm	0.252 in	Board to Board Cable	Detent Lock	Surface Mount	Male Pin	All	2 çm	78.7 çin	2	Square	Shrouded - 4 Wall	78.7 µin	2 µm	Black	Tin	2 A	125 VAC	Pick and Place	0.079 in	2 mm	Thermoplastic	Header	UL94 V-0	Copper Alloy	16
TE Connectivity Raychem Cable Protection 2-2842243-0	Solder	0.079 in	2 mm	20	-40 °C	105 ░C	0.142 in	3.6 mm	6.4 mm	0.252 in	Board to Board Cable	Detent Lock	Surface Mount	Male Pin	All	2 çm	78.7 çin	2	Square	Shrouded - 4 Wall	78.7 µin	2 µm	Black	Tin	2 A	125 VAC	Pick and Place	0.079 in	2 mm	Thermoplastic	Header	UL94 V-0	Copper Alloy
