887-035 Series
Manufacturer: EDAC Inc.
Beta
⌘K

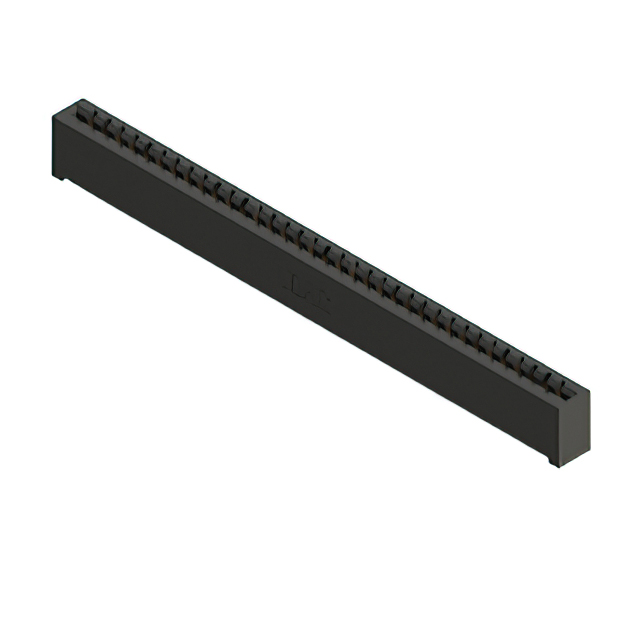

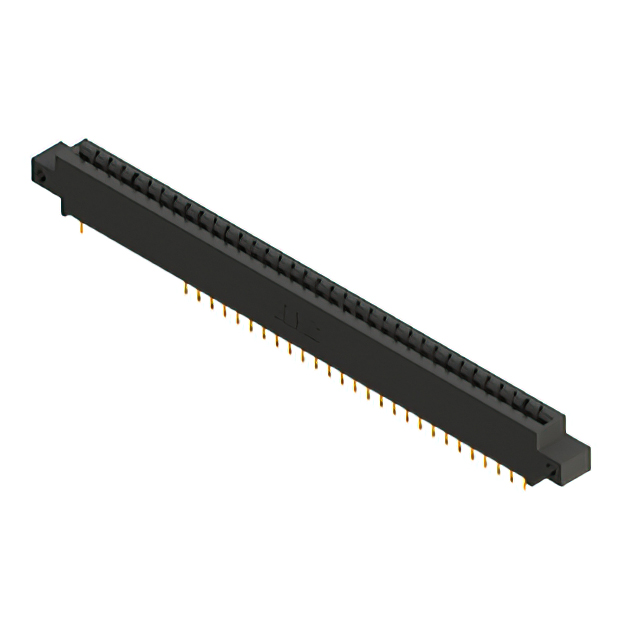

CONN EDGE SGL FMALE 35POS 0.156
| Part | Material - Insulation | Termination Rows | Number of Rows | Mounting Type | Color | Card Thickness [Max] | Card Thickness [Min] | Card Type | Contact Finish | Number of Positions/Bay/Row | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Termination | Gender | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Pitch | Pitch | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 1 | Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Gold | 35 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 0.25 Ám | 10 Áin | Single | Solder | Female | 35 | 125 °C | -40 C | Copper Alloy | 3.96 mm | 0.156 in | Cantilever |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 1 | Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Gold | 35 | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Single | Wire Wrap | Female | 35 | 125 °C | -40 C | Copper Alloy | 3.96 mm | 0.156 in | Cantilever | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 1 | Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Gold | 35 | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Single | Solder | Female | 35 | 125 °C | -40 C | Copper Alloy | 3.96 mm | 0.156 in | Cantilever | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 1 | Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Gold | 35 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 0.25 Ám | 10 Áin | Single | Solder | Female | 35 | 125 °C | -40 C | Copper Alloy | 3.96 mm | 0.156 in | Cantilever |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 1 | Right Angle Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Gold | 35 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | Single | Solder | Female | 35 | 125 °C | -40 C | Copper Alloy | 3.96 mm | 0.156 in | Cantilever |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 1 | Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Gold | 35 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 0.25 Ám | 10 Áin | Single | Solder | Female | 35 | 125 °C | -40 C | Copper Alloy | 3.96 mm | 0.156 in | Cantilever |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 1 | Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Gold | 35 | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Single | Wire Wrap | Female | 35 | 125 °C | -40 C | Copper Alloy | 3.96 mm | 0.156 in | Cantilever | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 1 | Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Gold | 35 | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | Single | Solder | Female | 35 | 125 °C | -40 C | Copper Alloy | 3.96 mm | 0.156 in | Cantilever |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 1 | Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Gold | 35 | 0.25 Ám | 10 Áin | Single | Wire Wrap | Female | 35 | 125 °C | -40 C | Copper Alloy | 3.96 mm | 0.156 in | Cantilever | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 1 | Through Hole | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Gold | 35 | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Single | Wire Wrap | Female | 35 | 125 °C | -40 C | Copper Alloy | 3.96 mm | 0.156 in | Cantilever |
