BD65520MUV Series

High-efficiency 36V Withstand Voltage Stepping Motor Driver

Catalog

High-efficiency 36V Withstand Voltage Stepping Motor Driver

Part	Output Configuration	Technology	Motor Type - Stepper	Supplier Device Package	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Motor Type - AC, DC	Current - Output	Interface	Voltage - Load [Max]	Voltage - Load [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Function

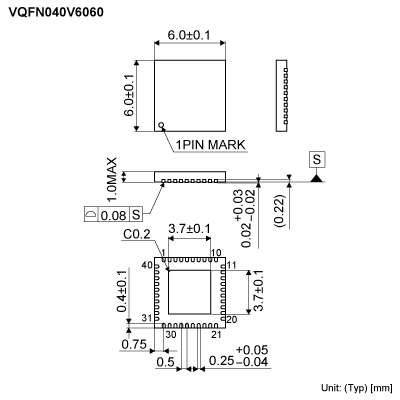

Rohm Semiconductor BD65520MUV-E2	Half Bridge (4)	DMOS	Bipolar	VQFN040V6060	Surface Mount	28 V	8 V	Brushless DC (BLDC)	2.5 A	SPI	28 V	8 V	40-VFQFN Exposed Pad	85 °C	-25 °C	Printer	Driver - Fully Integrated Control and Power Stage

Catalog

High-efficiency 36V Withstand Voltage Stepping Motor Driver

Description

BD65520MUV is a 36V power supply rated, 2.0A output current rated, low-consumption bipolar PWM constant current driven High-efficiency Driver. The input interface adopts the CLK-IN drive system, and the excitation mode supports FULL STEP to 1/32 STEP mode via a built-in DAC. FAST / SLOW DECAY of current decay mode ratio linear variable freely. Pin settings and detailed settings by SPI are set to make an optimum current control possible according to the load of every motor for a High-efficiency Drive. In addition, the power supply may also be driven by a single system, contributing to a simple set design.
