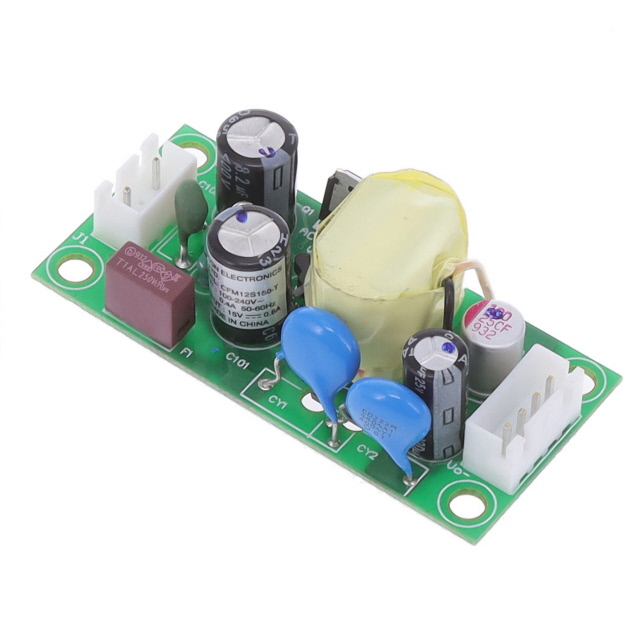

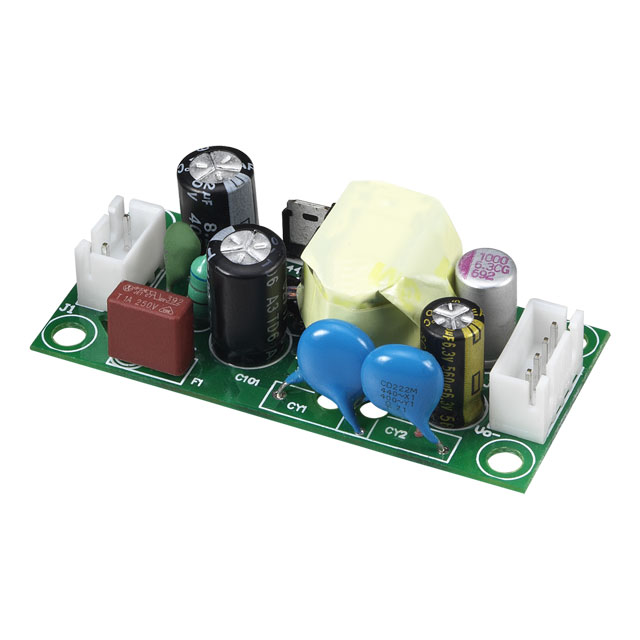

CFM12 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
AC/DC CONVERTER 24V 12W
| Part | Applications | Mounting Type | Approval Agency | Current - Output 1 | Type | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Efficiency | Voltage - Output 1 | Features | Voltage - Isolation | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | Household Appliances ITE (Commercial) | Chassis Mount | CE cURus FCC NEMKO | 500 mA | Open Frame | 264 VAC | 90 VAC | 12 W | 25.4 mm | 1 " | 54.6 mm | 0.68 in | 17.3 mm | 2.15 " | 87 % | 24 V | Universal Input | 3000 V | 1 | ||
Cincon Electronics Co. LTD | Household Appliances ITE (Commercial) | Chassis Mount | CE cURus FCC NEMKO | 1 A | Open Frame | 264 VAC | 90 VAC | 12 W | 25.4 mm | 1 " | 54.6 mm | 0.68 in | 17.3 mm | 2.15 " | 85 % | 12 V | Universal Input | 3000 V | 1 | ||
 Cincon Electronics Co. LTD | ITE (Commercial) | Chassis Mount | CE cURus FCC NEMKO | Open Frame | 264 VAC | 90 VAC | 12 W | 25.4 mm | 1 " | 54.6 mm | 0.68 in | 17.3 mm | 2.15 " | 85 % | 15 V | Universal Input | 3000 V | 1 | 75 °C | -40 °C | |
Cincon Electronics Co. LTD | Household Appliances ITE (Commercial) | Chassis Mount | CE cURus FCC NEMKO | 1.34 A | Open Frame | 264 VAC | 90 VAC | 12 W | 25.4 mm | 1 " | 54.6 mm | 0.68 in | 17.3 mm | 2.15 " | 85 % | 9 V | Universal Input | 3000 V | 1 |
