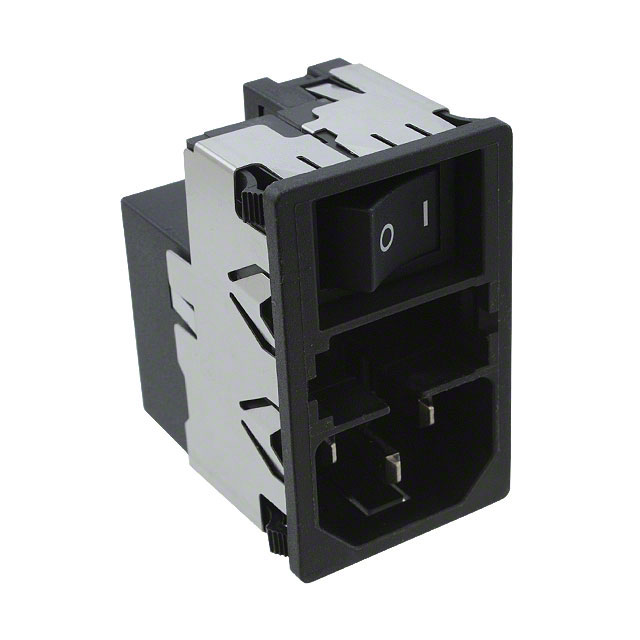

KMF1.1161 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
KMF PEM WITH FILTER 6A ROHS COMPLIANT: YES
| Part | Fuse Holder, Drawer | Ingress Protection | Current Rating - Appliance Inlet | Accomodates a Fuse | Material Flammability Rating | Current Rating - Filter | Filter Type | Voltage Rating - Appliance Inlet | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Connector Type | Mounting Type | Termination | Termination | Termination | Approval Agency | Connector Style | Switch Features | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Drawer Sold Separate | IP40 | 10 A | UL94 V-0 | 6 A | Filtered (EMI RFI) - Commercial | 250 VAC | 2.5 mm | 0.039 in | 0.098 in | 1 mm | Receptacle Male Blades - Module | Panel Mount Snap-In | 0.189 " | 4.8 mm | Quick Connect | CCC cULus ENEC | IEC 320-C14 | Switch On-Off | 28.8 mm | 47.8 mm | Shielded |
