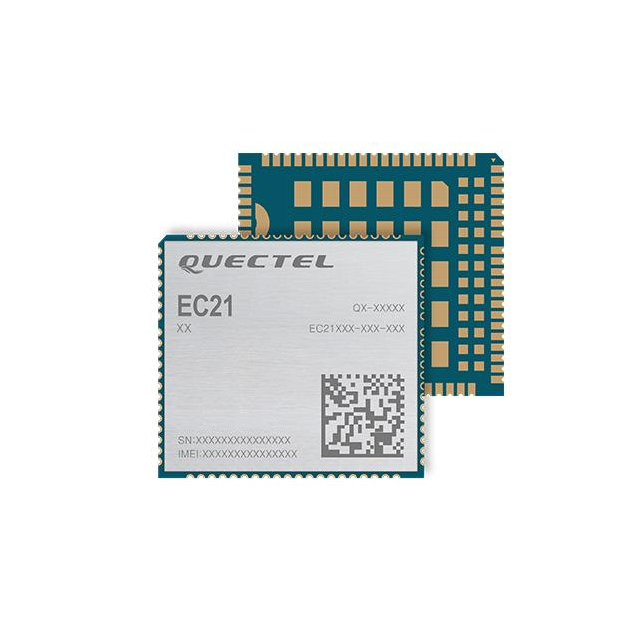

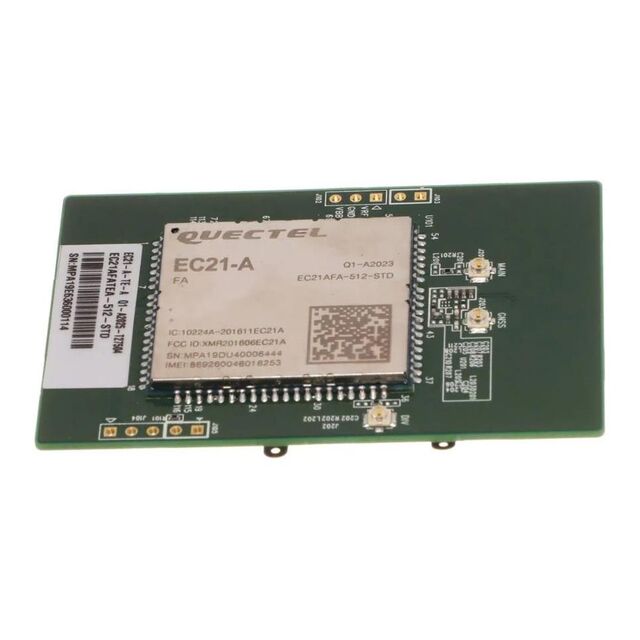

EC21 Series
Manufacturer: Quectel
Beta
⌘K
RF TXRX MOD CEL/NAV CARD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Receiving | Mounting Type | Current - Transmitting [x] | Package / Case | Serial Interfaces | Data Rate | Protocol | RF Family/Standard | Antenna Type | Utilized IC / Part | Current - Transmitting | Sensitivity | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Quectel | 75 ░C | -35 °C | 3.6 V | 3 V | 32 mA | Card Edge | 32 mA | Module | I2C PCM UART USB | 10 Mbps | BeiDou Galileo GLONASS GNSS GPS LTE | Cellular Navigation | Antenna Not Included | MDM9307-0 | |||
Quectel | 80 °C | -40 C | 3.6 V | 3 V | 34 mA | Card Edge | Module | UART USB | 10 Mbps | LTE WCDMA | Cellular | Antenna Not Included | MDM9207-1 | 34 mA | -102 dBm | 33 dBm | |
 Quectel | 85 °C | -40 C | 4.3 V | 3.3 V | 34 mA | Surface Mount | Module | UART USB | 10 Mbps | GSM LTE WCDMA | Cellular | Antenna Not Included | 34 mA | -102 dBm | 33 dBm | ||
 Quectel | 80 °C | -40 C | 3.6 V | 3 V | 34 mA | Card Edge | Module | UART USB | 10 Mbps | LTE | Cellular | Antenna Not Included | MDM9307-0 | 34 mA | -102 dBm | 33 dBm | |
Quectel | 75 ░C | -35 °C | 3.6 V | 3 V | 22 mA | Card Edge | Module | I2C PCM UART USB | 42 Mbps | BeiDou EDGE Galileo GLONASS GNSS GPS GSM LTE UMTS WCDMA | Cellular Navigation | Antenna Not Included | 22 mA | ||||
Quectel | 75 ░C | -35 °C | 3.6 V | 3 V | 23 mA | Card Edge | Module | I2C PCM UART USB | 42 Mbps | BeiDou EDGE Galileo GLONASS GNSS GPS GSM LTE UMTS WCDMA | Cellular Navigation | Antenna Not Included | MDM9207-1 | 23 mA | |||
Quectel | 80 °C | -40 C | 3.6 V | 3 V | 34 mA | Card Edge | Module | UART USB | 10 Mbps | LTE WCDMA | Cellular | Antenna Not Included | MDM9207-1 | 34 mA | -102 dBm | 33 dBm | |
 Quectel | 80 °C | -40 C | 3.6 V | 3 V | 34 mA | Card Edge | Module | UART USB | 10 Mbps | LTE WCDMA | Cellular | Antenna Not Included | 34 mA | -102 dBm | 33 dBm | ||
Quectel | 80 °C | -40 C | 3.6 V | 3 V | 34 mA | Card Edge | Module | UART USB | 10 Mbps | GSM LTE WCDMA | Cellular | Antenna Not Included | MDM9207-1 | 34 mA | -102 dBm | 33 dBm | |
Quectel | 75 ░C | -35 °C | 3.6 V | 3 V | 32 mA | Card Edge | 32 mA | Module | I2C PCM UART USB | 42 Mbps | BeiDou Galileo GLONASS GNSS GPS LTE UMTS WCDMA | Cellular Navigation | Antenna Not Included | MDM9207-1 |
