GST36B12 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

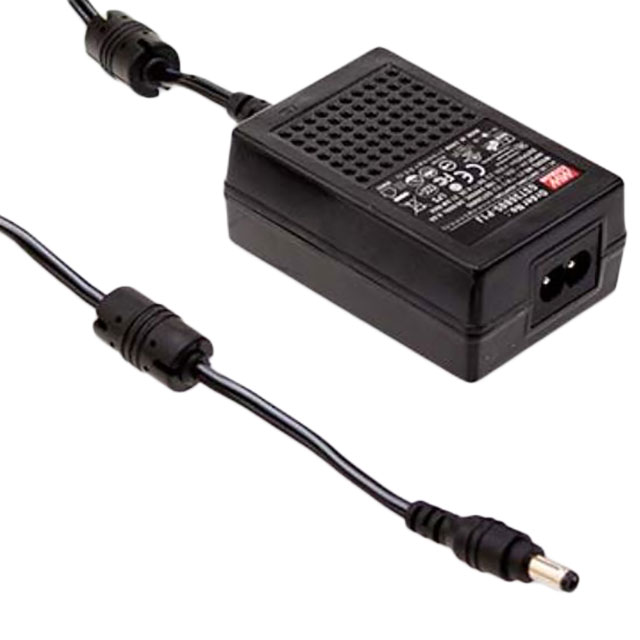

AC/DC DESKTOP ADAPTER 12V 36W
| Part | Applications | Polarization | Cord Length | Cord Length | Efficiency | Output Connector [diameter] | Output Connector | Output Connector [x] | Current - Output (Max) [Max] | Input Type | Input Connector | Power (Watts) | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Form | Region Utilized | Voltage - Output | No Load Power Consumption | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | Positive Center | 1 m | 39.4 in | Level VI | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | 3 A | Cord (Sold Separately) | IEC 320-C8 | 36 W | 33 mm | 1.3 in | 3.11 in | 79 mm | 54 mm | 2.13 in | Desktop (Class II) | International | 12 V | 75 mW | -30 ░C | 70 °C | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM |
