960210 Series
Manufacturer: 3M (TC)
Beta
⌘K

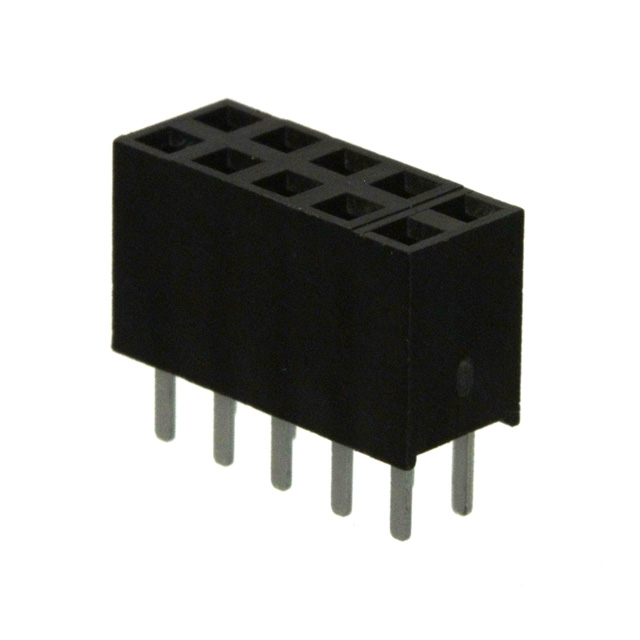

CONN RCPT 10POS 0.1 GOLD PCB
| Part | Insulation Material | Contact Finish - Post | Insulation Color | Fastening Type | Termination | Contact Finish - Mating | Connector Type | Contact Material | Number of Positions | Voltage Rating | Number of Rows | Current Rating (Amps) | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Shape | Material Flammability Rating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M (TC) | Thermoplastic | Tin | Black | Push-Pull | Solder | Gold | Receptacle | Copper Alloy | 10 | 1000 VDC | 2 | 2 A | 0.28 in | 7.1 mm | -25 °C | 105 ░C | Female Socket | 0.118 in | 3 mm | All | 1.02 Ám | 40 Áin | Through Hole | 0.1 in | 2.54 mm | Square | UL94 V-0 | 2.54 mm | 0.1 in | Flash |
3M (TC) | Thermoplastic | Tin | Black | Push-Pull | Solder | Gold | Receptacle | Copper Alloy | 10 | 1000 VDC | 2 | 2 A | 0.335 " | 8.51 mm | -25 °C | 105 ░C | Female Socket | 0.138 in | 3.5 mm | All | 1.02 Ám | 40 Áin | Through Hole | 0.1 in | 2.54 mm | Square | UL94 V-0 | 2.54 mm | 0.1 in | Flash |
