ANT-421 Series

Catalog

GPRS/GSM ANTENNA

Part	Frequency Range [Min]	Frequency Range [Max]	Height (Max) [z]	Height (Max) [z]	Gain	Mounting Type	Number of Bands	Antenna Type	RF Family/Standard	Frequency (Center/Band)	Applications	Frequency Group

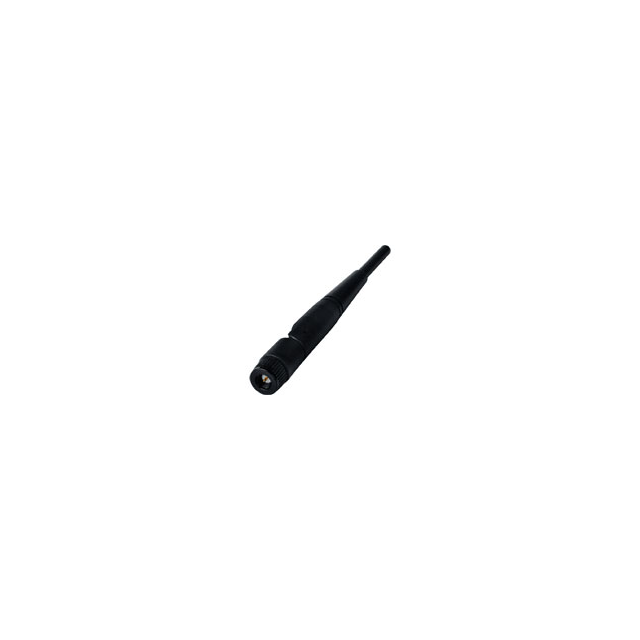

ICP DAS USA INC ANT-421-02	1.71 GHz 824 MHz	2.17 GHz 960 MHz	136 mm	5.354 in	-9 dBi 1.7 dBi	Connector Mount	2	Tilt Whip	Cellular	1.94 GHz 892 MHz	GPRS GSM

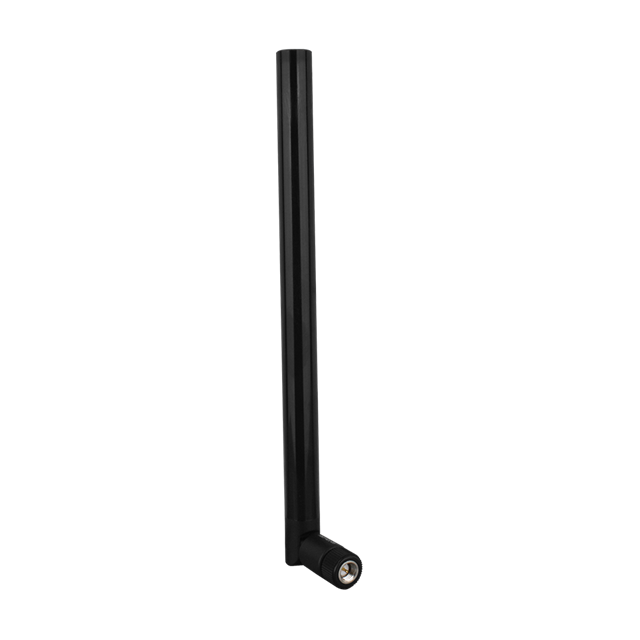

ICP DAS USA INC ANT-421-05	1.71 GHz 698 MHz 2310 MHz	2.11 GHz 2.69 GHz 960 MHz				Connector Mount	7	Tilt Whip	Cellular	1.8 GHz 1.9 GHz 2.1 GHz 2.6 GHz 800 MHz 850 MHz 900 MHz	GPRS GSM LTE WCDMA	Wide Band
