5502UE Series
Manufacturer: Belden Inc.
Beta
⌘K

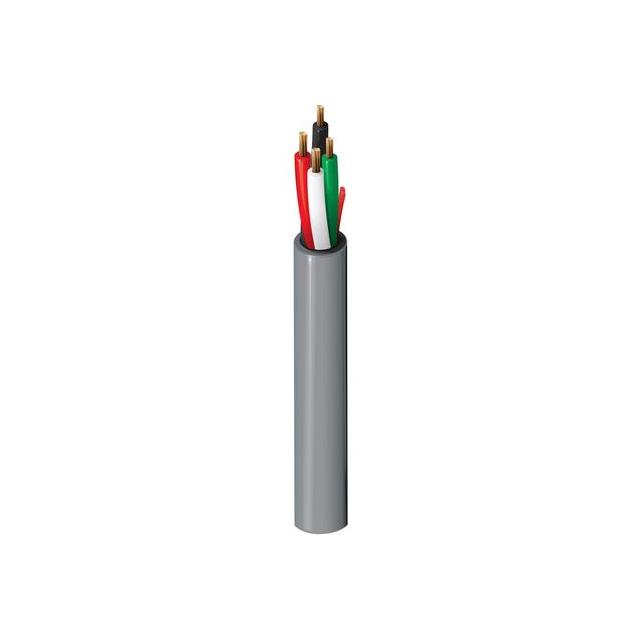

CABLE 4COND 22AWG WHITE
| Part | Ratings | Jacket (Insulation) Material | Features | Conductor Insulation | Voltage | Jacket Color | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Cable Type | Wire Gauge | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Number of Conductors | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | UL Style CMR | Poly-Vinyl Chloride (PVC) Riser | Rip Cord | Polypropylene (PP) | 300 VDC | White | 304.8 m | 1000 ft | 30 AWG | 7 | Security Sound | Multi-Conductor | 22 AWG | 0.141 " | 3.58 mm | 4 | Copper Bare | 0.017 " | 0.432 mm |
Belden Inc. | UL Style CMR | Poly-Vinyl Chloride (PVC) Riser | Rip Cord | Polypropylene (PP) | 300 VDC | White | 304.8 m | 1000 ft | 30 AWG | 7 | Security Sound | Multi-Conductor | 22 AWG | 0.141 " | 3.58 mm | 4 | Copper Bare | 0.017 " | 0.432 mm |
 Belden Inc. | UL Style CMR | Poly-Vinyl Chloride (PVC) Riser | Rip Cord | Polypropylene (PP) | 300 VDC | Gray | 304.8 m | 1000 ft | 30 AWG | 7 | Security Sound | Multi-Conductor | 22 AWG | 0.141 " | 3.58 mm | 4 | Copper Bare | 0.017 " | 0.432 mm |
Belden Inc. | UL Style CMR | Poly-Vinyl Chloride (PVC) Riser | Rip Cord | Polypropylene (PP) | 300 VDC | Gray | 304.8 m | 1000 ft | 30 AWG | 7 | Security Sound | Multi-Conductor | 22 AWG | 0.141 " | 3.58 mm | 4 | Copper Bare | 0.017 " | 0.432 mm |
Belden Inc. | UL Style CMR | Poly-Vinyl Chloride (PVC) Riser | Rip Cord | Polypropylene (PP) | 300 VDC | Gray | 152.4 m | 500 ft | 30 AWG | 7 | Security Sound | Multi-Conductor | 22 AWG | 0.141 " | 3.58 mm | 4 | Copper Bare | 0.017 " | 0.432 mm |
