V7-1Z2 Series

Catalog

SWITCH SNAP ACT SPST-NO 25A 277V

Part	Voltage Rating - AC	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Pretravel	Pretravel	Electrical Life	Overtravel [custom]	Overtravel [custom]	Switch Function	Actuator Type	Operating Position	Operating Position	Termination Style	Release Force	Differential Travel [x]	Differential Travel [x]	Operating Force	Circuit	Mounting Type	Operating Force [Min]	Operating Force [Max]
Honeywell Sensing and Productivity Solutions V7-1Z20E9	277 V	25 A	85 °C	-40 C	10000000 Cycles	1.2 mm	0.047 in	100000 Cycles	1.27 mm	0.05 "	Off-Mom	Round (Pin Plunger)	14.7 mm	0.579 in	Quick Connect - 0.250" (6.3mm)	20 gf	0.01 in	0.25 mm	225 gf	SPST-NO	Chassis Mount

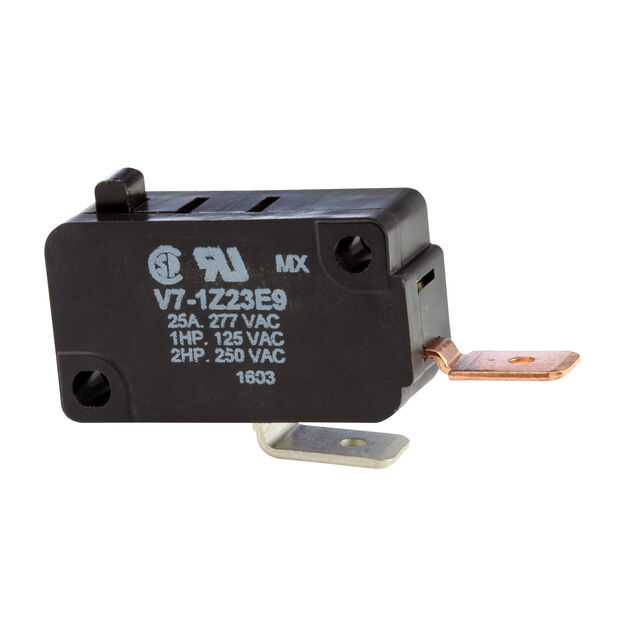

Honeywell Sensing and Productivity Solutions V7-1Z23E9	277 V	25 A	150 °C	-40 C	10000000 Cycles	1.2 mm	0.047 in	100000 Cycles	1.27 mm	0.05 "	Off-Mom	Round (Pin Plunger)	14.7 mm	0.579 in	Quick Connect - 0.250" (6.3mm)	55 gf	0.01 in	0.25 mm		SPST-NO	Chassis Mount	125 gf	225 gf
Honeywell Sensing and Productivity Solutions V7-1Z29D94	277 V	25 A	85 °C	-40 C	10000000 Cycles	1.2 mm	0.047 in	100000 Cycles	1.27 mm	0.05 "	Off-Mom	Round (Pin Plunger)	14.7 mm	0.579 in	Quick Connect - 0.250" (6.3mm)	20 gf	0.01 in	0.25 mm	225 gf	SPST-NO	Chassis Mount
