L1MC Series

Manufacturer: Lumileds

Catalog

LED MODULE 625NM/535NM/480NM 4 LEDS SMD T/R

Part	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Color	Viewing Angle [custom]	Viewing Angle [custom]	Viewing Angle [custom]	Wavelength [custom]	Wavelength [custom]	Wavelength [custom]	Current - Test	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [custom]	Package / Case	Package / Case	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength	Mounting Type	Viewing Angle [custom]	Lumens/Watt @ Current - Test [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature [custom]	Temperature - Test	Viewing Angle	Lumens/Watt @ Current - Test	Lumens/Watt @ Current - Test	Lumens/Watt @ Current - Test	Lumens/Watt @ Current - Test	Lumens/Watt @ Current - Test	Wavelength [custom]
Lumileds L1MC-RGB5080500MP0	240 mA	250 mA	240 mA	Blue Blue Green Green Red Red White	120 °	134 °	130 °	473 nm	528 nm	622 nm	120 mA	2.1 V 3 V 3 V 3.15 V	18 lm	12 lm	38 lm	101 lm/W	33 lm/W	71 lm/W	5052	0.7 mm	0.028 "	240 mA	2020	5250 Metric	120 mA	120 mA	120 mA	120 mA	473 nm 528 nm 622 nm 5000 K	Surface Mount	120 °	158 lm/W	5 mm	5.18 mm	0.197 "	0.204 in	57 lm	25 °C
Lumileds L1MC-RGB0028000MP0	60 mA	60 mA	60 mA	Blue Green Red				470 nm	525 nm	622 nm	20 mA	2.03 V 2.73 V 2.81 V	3 lm	2 lm	9 lm	165 lm/W	36 lm/W	74 lm/W		1.85 mm	0.073 in		6-PLCC							Surface Mount			2.8 mm	3.2 mm	0.11 "	0.126 "		25 °C	120 °
Lumileds L1MC-RGB4080500MP0	240 mA	250 mA	240 mA	Blue Blue Green Green Red Red White - Neutral (RGBW)	120 °	134 °	130 °	473 nm	528 nm	622 nm	120 mA	2.1 V 3 V 3 V 3.15 V	18 lm	12 lm	38 lm	101 lm/W	33 lm/W	71 lm/W	5052	0.7 mm	0.028 "	240 mA	2020	5250 Metric	120 mA	120 mA	120 mA	120 mA	473 nm 528 nm 622 nm 4000 K	Surface Mount	120 °	158 lm/W	5 mm	5.18 mm	0.197 "	0.204 in	57 lm	25 °C
Lumileds L1MC-RGB2780500MP0	240 mA	250 mA	240 mA	Blue Blue Green Green Red Red White	120 °	134 °	130 °	473 nm	528 nm	622 nm	120 mA	2.1 V 3 V 3 V 3.15 V	18 lm	12 lm	38 lm	101 lm/W	33 lm/W	71 lm/W	5052	0.7 mm	0.028 "	240 mA	2020	5250 Metric	120 mA	120 mA	120 mA	120 mA	473 nm 528 nm 622 nm 2700 K	Surface Mount	120 °		5 mm	5.18 mm	0.197 "	0.204 in	52 lm	25 °C		101 lm/W	71 lm/W	33 lm/W	144 lm/W
Lumileds L1MC-RGB2290500MP0	240 mA	250 mA	240 mA	Blue Blue Green Green Red Red White	120 °	134 °	130 °	473 nm	528 nm	622 nm	120 mA	2.1 V 3 V 3 V 3.15 V	18 lm	12 lm	38 lm	101 lm/W	33 lm/W	71 lm/W	5052	0.7 mm	0.028 "	240 mA	2020	5250 Metric	120 mA	120 mA	120 mA	120 mA	473 nm 528 nm 622 nm 2200 K	Surface Mount	120 °		5 mm	5.18 mm	0.197 "	0.204 in	40 lm	25 °C						33 lm/W 71 lm/W 101 lm/W 111 lm/W
Lumileds L1MC-RGB0035000MP0				Blue Green Red							20 mA	2.1 V 2.8 V 3 V											6-SMD No Lead						472 nm 528 nm 622 nm	Surface Mount			3.5 mm	3.7 mm	0.138 in	0.146 in		25 °C	102 °

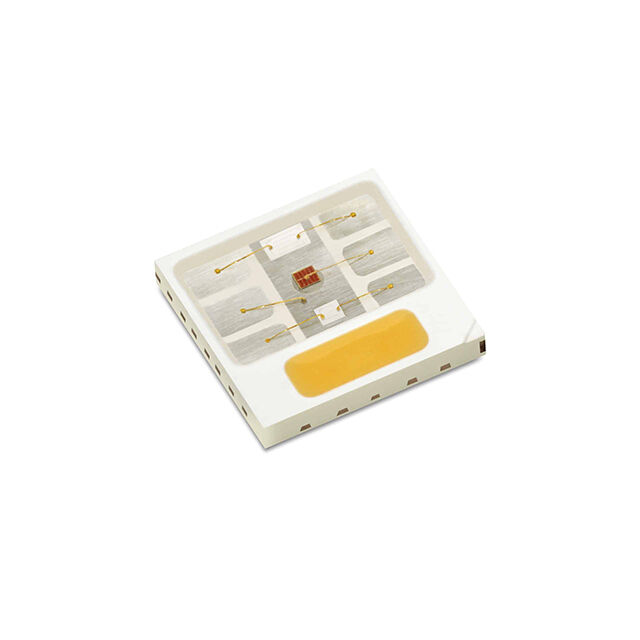

Lumileds L1MC-RGU4080500MP0	240 mA	250 mA	240 mA	Blue Blue Green Green Red Red White - Neutral (RGBW)	120 °	134 °	130 °				120 mA	2.1 V 3 V 3 V 3.15 V	18 lm	8 lm	38 lm	101 lm/W	22 lm/W	71 lm/W	5052	0.7 mm	0.028 "	240 mA	2020	5250 Metric	120 mA	120 mA	120 mA	120 mA	463 nm 528 nm 622 nm 4000 K	Surface Mount	120 °		5 mm	5.18 mm	0.197 "	0.204 in	59 lm	25 °C						22 lm/W 71 lm/W 101 lm/W 164 lm/W
Lumileds L1MC-RGB6570500MP0	240 mA	250 mA	240 mA	Blue Blue Green Green Red Red White	120 °	134 °	130 °	473 nm	528 nm	622 nm	120 mA	2.1 V 3 V 3 V 3.15 V	18 lm	12 lm	38 lm	101 lm/W 101 lm/W	33 lm/W 33 lm/W	71 lm/W 71 lm/W	5052	0.7 mm	0.028 "	240 mA	2020	5250 Metric	120 mA	120 mA	120 mA	120 mA		Surface Mount	120 °	164 lm/W	5 mm	5.18 mm	0.197 "	0.204 in	59 lm	25 °C							6500 K
Lumileds L1MC-RGB3080500MP0	240 mA	250 mA	240 mA	Blue Blue Green Green Red Red White	120 °	134 °	130 °	473 nm	528 nm	622 nm	120 mA	2.1 V 3 V 3 V 3.15 V	18 lm	12 lm	38 lm	101 lm/W	33 lm/W	71 lm/W	5052	0.7 mm	0.028 "	240 mA	2020	5250 Metric	120 mA	120 mA	120 mA	120 mA	473 nm 528 nm 622 nm 3000 K	Surface Mount	120 °		5 mm	5.18 mm	0.197 "	0.204 in	53 lm	25 °C		101 lm/W	71 lm/W	33 lm/W	147 lm/W
