FGG.0B Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 9P GOLD SLDR CUP

Part	Fastening Type	Shell Size - Insert	Material Flammability Rating	Shell Material	Connector Type	Shell Finish	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Material	Primary Material	Shielding	Orientation [custom]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Contact Finish - Mating	Mounting Type	Current Rating (Amps)	Ingress Protection	Color	Backshell Material, Plating	Number of Positions	Insert Material	Termination	Shell Size - Insert [custom]
LEMO FGG.0B.309.CLAD21	Push-Pull	309	UL94 V-0	Brass	Plug Male Pins	Chrome	Backshell	-55 C	250 °C	39.4 µin	1 µm	Brass	Metal	Shielded	G	2.2 mm	1.4 mm	0.055 in	0.087 "	Gold	Free Hanging (In-Line)	2 A	IP50 - Dust Protected	Silver	Brass Chrome	9	Polyetheretherketone (PEEK)
LEMO FGG.0B.304.CYCD32Z	Detent Lock Push-Pull	304	UL94 V-0	Brass	Plug Male Pins	Chrome	Backshell	-55 C	250 °C			Brass	Metal	Shielded	G	3.2 mm	2.2 mm	0.087 in	0.126 in	Gold	Free Hanging (In-Line)	7 A	IP50 - Dust Protected	Silver	Brass Chrome	4	Polyetheretherketone (PEEK)	Crimp

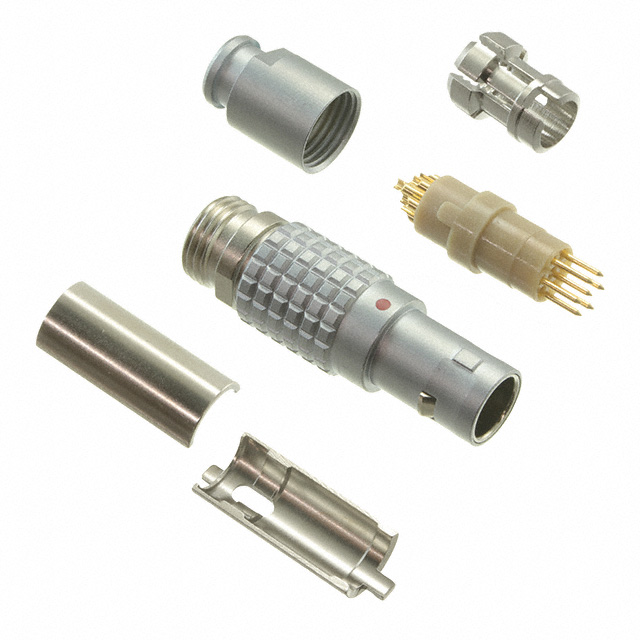

LEMO FGG.0B.307.CLAD21	Push-Pull		UL94 V-0	Brass	Plug Male Pins	Chrome	Backshell	-55 C	250 °C	39.4 µin	1 µm	Brass	Metal	Shielded	G	2.2 mm	1.4 mm	0.055 in	0.087 "	Gold	Free Hanging (In-Line)	2.5 A	IP50 - Dust Protected	Silver	Brass Chrome	7	Polyetheretherketone (PEEK)		307
