320574 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

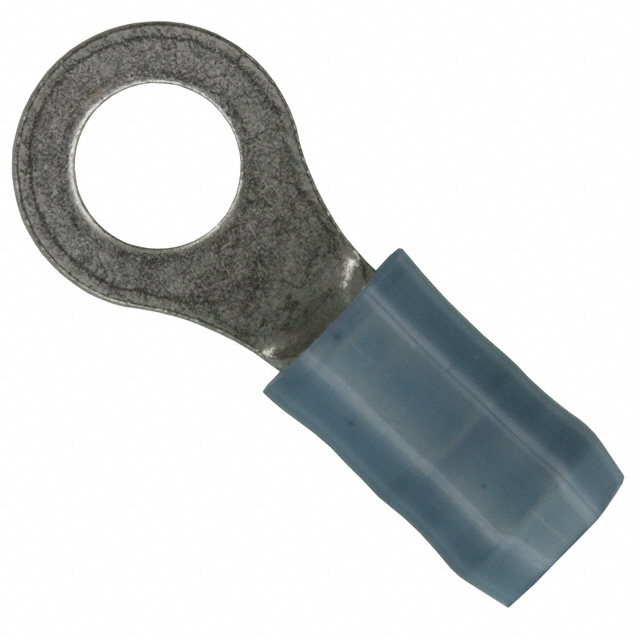

TERMINAL,PIDG R 16-14 10
| Part | Color | Contact Material | Width - Outer Edges [x] | Width - Outer Edges [x] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Termination | Length - Overall [x] | Length - Overall [x] | Mounting Type | Thickness | Thickness | Stud/Tab Size | Features | Contact Finish | Material - Insulation | Terminal Type | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Blue | Copper | 0.343 in | 8.71 mm | 0.105 in | 3.81 mm | 2.67 mm | 0.15 " | Crimp | 0.859 in | 21.82 mm | Free Hanging (In-Line) | 0.031 in | 0.79 mm | 10 Stud | Serrated Termination | Tin | Nylon Polyamide (PA) | Circular | Insulated |
