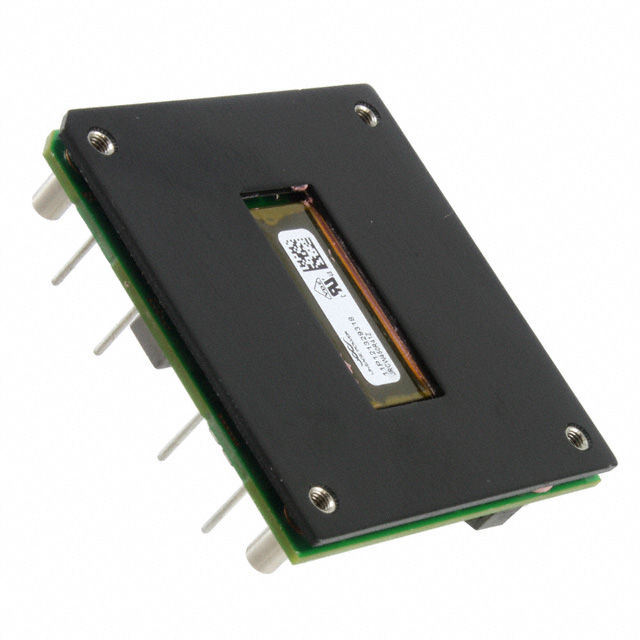

JRCW450 Series

Catalog

DC DC CONVERTER 32V 450W

Part	Package / Case	Voltage - Input (Max) [Max]	Features	Applications	Mounting Type	Control Features	Power (Watts)	Number of Outputs	Voltage - Output 1	Type	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Isolation	Current - Output (Max) [Max]
OmniOn Power™ JRCW450R841-TZ	9-DIP Module	75 V	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	Through Hole	Active Low Enable	450 W	1	32 V	Isolated Module	94.4 %	2.39 "	12.7 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	85 °C	-40 C	36 V	1.5 kV	14 A
OmniOn Power™ JRCW450R541Z	9-DIP Module	75 V	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	Through Hole	Active Low Enable	450 W	1	32 V	Isolated Module	94.4 %	2.39 "	12.7 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	85 °C	-40 C	36 V	1.5 kV	14 A
OmniOn Power™ JRCW450R41-TZ	9-DIP Module 1/2 Brick	75 V	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	Through Hole	Active Low Enable	450 W	1	32 V	Isolated Module	94 %	2.39 "	12.7 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	100 °C	-40 C	36 V	1.5 kV	14 A
OmniOn Power™ JRCW450U64-18Z	9-DIP Module	75 V	OCP OTP OVP Remote On/Off	ITE (Commercial)	Through Hole	Active High Enable	450 W	1	48 V	Isolated Module	94 %	2.27 "	12.7 mm	0.5 in	60.7 mm	57.7 mm	2.39 in	100 °C	-40 C	36 V	1.5 kV	9.4 A
OmniOn Power™ JRCW450R41-TZ	9-DIP Module 1/2 Brick	75 V	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	Through Hole	Active Low Enable	450 W	1	32 V	Isolated Module	94 %	2.39 "	12.7 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	100 °C	-40 C	36 V	1.5 kV	14 A
OmniOn Power™ JRCW450U641Z	9-DIP Module	75 V	OCP OTP OVP Remote On/Off	ITE (Commercial)	Through Hole	Active Low Enable	450 W	1	48 V	Isolated Module	94 %	2.27 "	12.7 mm	0.5 in	60.7 mm	57.7 mm	2.39 in	100 °C	-40 C	36 V	1.5 kV	9.4 A
OmniOn Power™ JRCW450R41Z	9-DIP Module 1/2 Brick	75 V	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	Through Hole	Active Low Enable	450 W	1	32 V	Isolated Module	94 %	2.39 "	12.7 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	100 °C	-40 C	36 V	1.5 kV	14 A
OmniOn Power™ JRCW450R41Z	9-DIP Module 1/2 Brick	75 V	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	Through Hole	Active Low Enable	450 W	1	32 V	Isolated Module	94 %	2.39 "	12.7 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	100 °C	-40 C	36 V	1.5 kV	14 A
OmniOn Power™ JRCW450R841-TZ	9-DIP Module	75 V	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	Through Hole	Active Low Enable	450 W	1	32 V	Isolated Module	94.4 %	2.39 "	12.7 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	85 °C	-40 C	36 V	1.5 kV	14 A
OmniOn Power™ JRCW450U641-18Z	9-DIP Module	75 V	OCP OTP OVP Remote On/Off	ITE (Commercial)	Through Hole	Active Low Enable	450 W	1	48 V	Isolated Module	94 %	2.27 "	12.7 mm	0.5 in	60.7 mm	57.7 mm	2.39 in	100 °C	-40 C	36 V	1.5 kV	9.4 A
