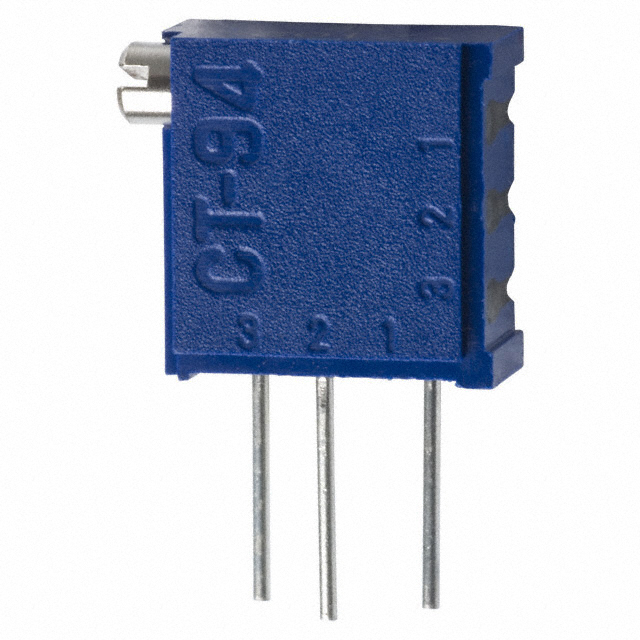

CT94EZ Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 100KOHM 0.5W PC PIN SIDE

Part	Number of Turns	Temperature Coefficient	Mounting Type	Resistance	Adjustment Type	Power (Watts)	Power (Watts)	Termination Style	Resistive Material	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Nidec Components Corporation CT-94EZ104	18	100 ppm/°C	Through Hole	100 kOhms	Side Adjustment	0.5 W	0.5 W	PC Pins	Cermet	10 %	9.6 mm	0.189 "	0.378 in	4.8 mm
Nidec Components Corporation CT-94EZ500	18	100 ppm/°C	Through Hole	50 Ohms	Side Adjustment	0.5 W	0.5 W	PC Pins	Cermet	10 %	9.6 mm	0.189 "	0.378 in	4.8 mm
Nidec Components Corporation CT-94EZ501	18	100 ppm/°C	Through Hole	0.5 kOhms	Side Adjustment	0.5 W	0.5 W	PC Pins	Cermet	10 %	9.6 mm	0.189 "	0.378 in	4.8 mm
Nidec Components Corporation CT-94EZ202	18	100 ppm/°C	Through Hole	2 kOhms	Side Adjustment	0.5 W	0.5 W	PC Pins	Cermet	10 %	9.6 mm	0.189 "	0.378 in	4.8 mm
Nidec Components Corporation CT-94EZ103	18	100 ppm/°C	Through Hole	10000 Ohms	Side Adjustment	0.5 W	0.5 W	PC Pins	Cermet	10 %	9.6 mm	0.189 "	0.378 in	4.8 mm
Nidec Components Corporation CT-94EZ100	18	250 ppm/°C	Through Hole	10 Ohms	Side Adjustment	0.5 W	0.5 W	PC Pins	Cermet	10 %	9.6 mm	0.189 "	0.378 in	4.8 mm
Nidec Components Corporation CT-94EZ502	18	100 ppm/°C	Through Hole	5 kOhms	Side Adjustment	0.5 W	0.5 W	PC Pins	Cermet	10 %	9.6 mm	0.189 "	0.378 in	4.8 mm
Nidec Components Corporation CT-94EZ102	18	100 ppm/°C	Through Hole	1000 Ohms	Side Adjustment	0.5 W	0.5 W	PC Pins	Cermet	10 %	9.6 mm	0.189 "	0.378 in	4.8 mm
Nidec Components Corporation CT-94EZ503	18	100 ppm/°C	Through Hole	50000 Ohms	Side Adjustment	0.5 W	0.5 W	PC Pins	Cermet	10 %	9.6 mm	0.189 "	0.378 in	4.8 mm
Nidec Components Corporation CT-94EZ203	18	100 ppm/°C	Through Hole	20 kOhms	Side Adjustment	0.5 W	0.5 W	PC Pins	Cermet	10 %	9.6 mm	0.189 "	0.378 in	4.8 mm
