845-067 Series
Manufacturer: EDAC Inc.
Beta
⌘K

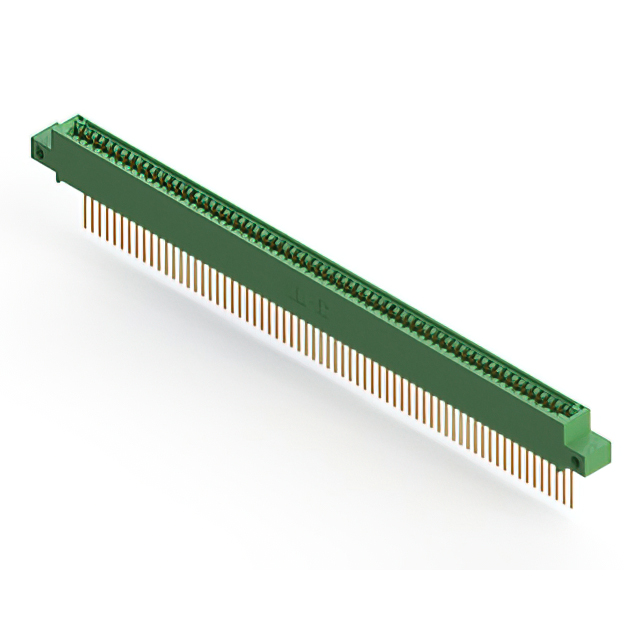

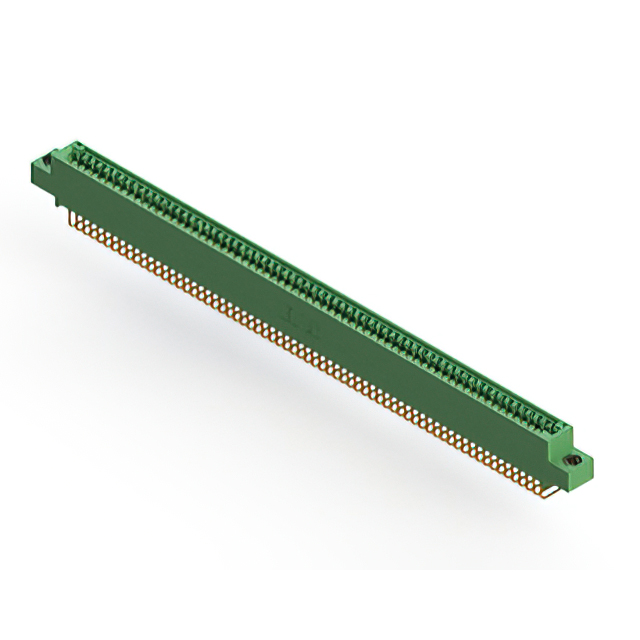

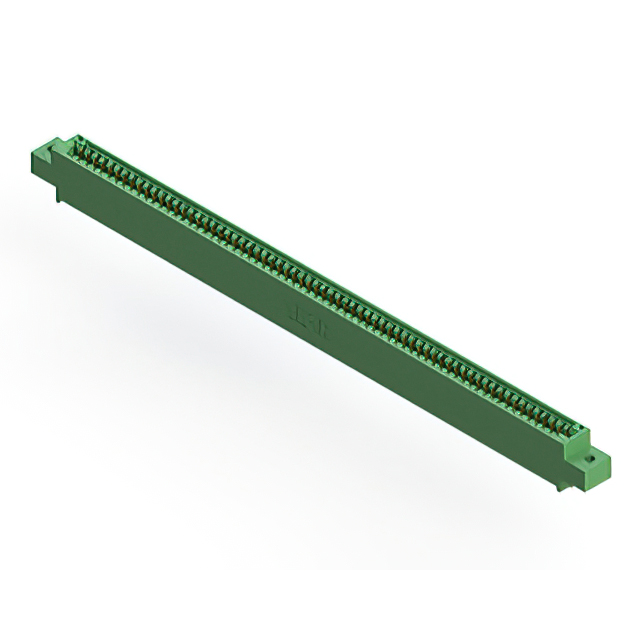

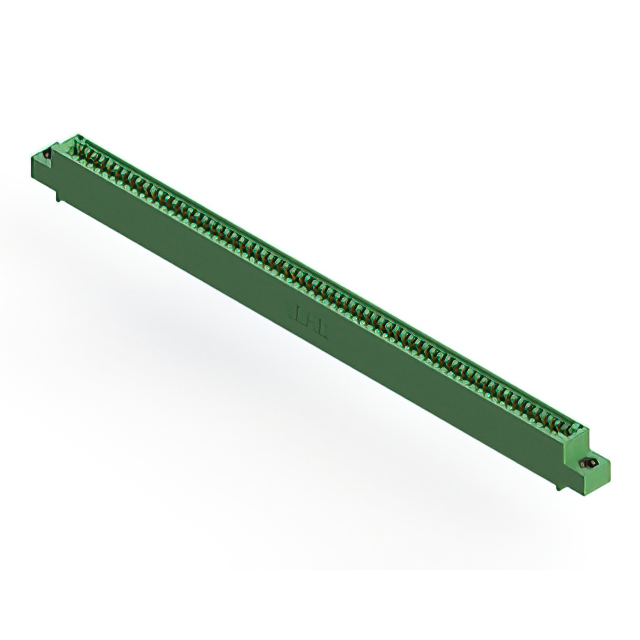

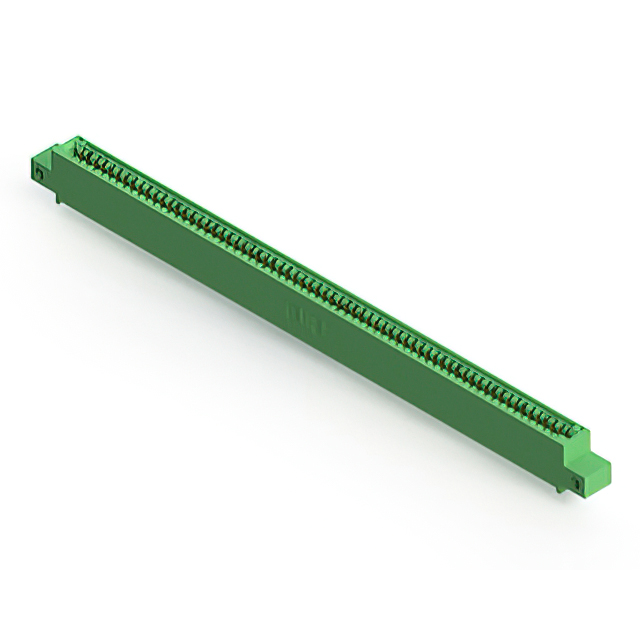

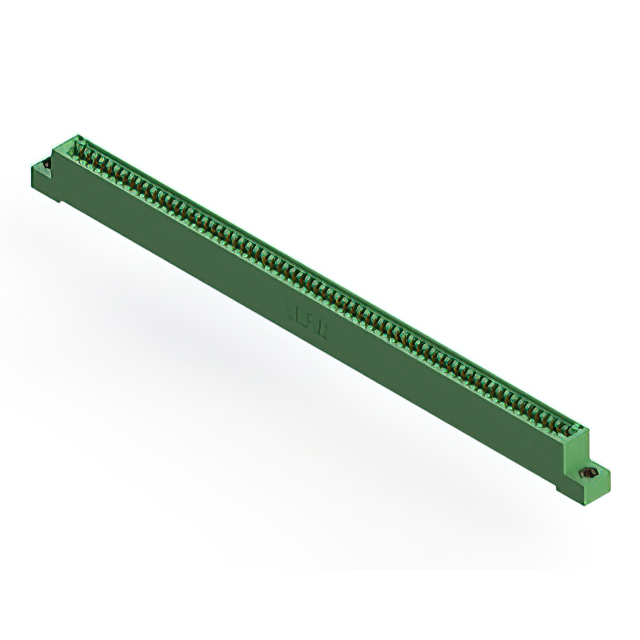

CONN EDGE SINGLE FML 67POS 0.100
| Part | Gender | Contact Material | Card Type | Number of Positions/Bay/Row | Contact Type | Color | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Termination Rows | Material - Insulation | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Number of Positions | Read Out | Termination | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Female | Copper Alloy | Non Specified - Single Edge | 67 | Cantilever | Green | Through Hole | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | 1 | Diallyl Phthalate (DAP) | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Gold | 67 | Single | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm |
 EDAC Inc. | Female | Copper Alloy | Non Specified - Single Edge | 67 | Cantilever | Green | Through Hole | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | 1 | Diallyl Phthalate (DAP) | 0.128 " | 3.25 mm | Gold | 67 | Single | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | |
 EDAC Inc. | Female | Copper Alloy | Non Specified - Single Edge | 67 | Cantilever | Green | Through Hole | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | 1 | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | Gold | 67 | Single | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | ||
 EDAC Inc. | Female | Copper Alloy | Non Specified - Single Edge | 67 | Cantilever | Green | Through Hole | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | 1 | Diallyl Phthalate (DAP) | M3 Threaded Insert Top Mount Opening | Gold | 67 | Single | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | ||
 EDAC Inc. | Female | Copper Alloy | Non Specified - Single Edge | 67 | Cantilever | Green | Through Hole | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | 1 | Diallyl Phthalate (DAP) | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Gold | 67 | Single | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm |
 EDAC Inc. | Female | Copper Alloy | Non Specified - Single Edge | 67 | Cantilever | Green | Right Angle Through Hole | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | 1 | Diallyl Phthalate (DAP) | M3 Threaded Insert Top Mount Opening | Gold | 67 | Single | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | ||
 EDAC Inc. | Female | Copper Alloy | Non Specified - Single Edge | 67 | Cantilever | Green | Through Hole | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | 1 | Diallyl Phthalate (DAP) | 0.128 " | 3.25 mm | Gold | 67 | Single | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | |
 EDAC Inc. | Female | Copper Alloy | Non Specified - Single Edge | 67 | Cantilever | Green | Through Hole | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | 1 | Diallyl Phthalate (DAP) | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Gold | 67 | Single | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm |
 EDAC Inc. | Female | Copper Alloy | Non Specified - Single Edge | 67 | Cantilever | Green | Through Hole | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | 1 | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | Gold | 67 | Single | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | ||
 EDAC Inc. | Female | Copper Alloy | Non Specified - Single Edge | 67 | Cantilever | Green | Through Hole | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | 1 | Diallyl Phthalate (DAP) | 0.156 " | 3.96 mm | Gold | 67 | Single | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm |
