32S156 Series
Manufacturer: Rosenberger
Beta
⌘K
ADAPT SMA PLUG - TNC JACK
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Material | Dielectric Material | Body Material | Mating Cycles | Center Contact Plating | Convert To (Adapter End) | Frequency - Max [Max] | Adapter Type | Convert From (Adapter End) | Conversion Type | Style | Mounting Type | Adapter Series | Impedance | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

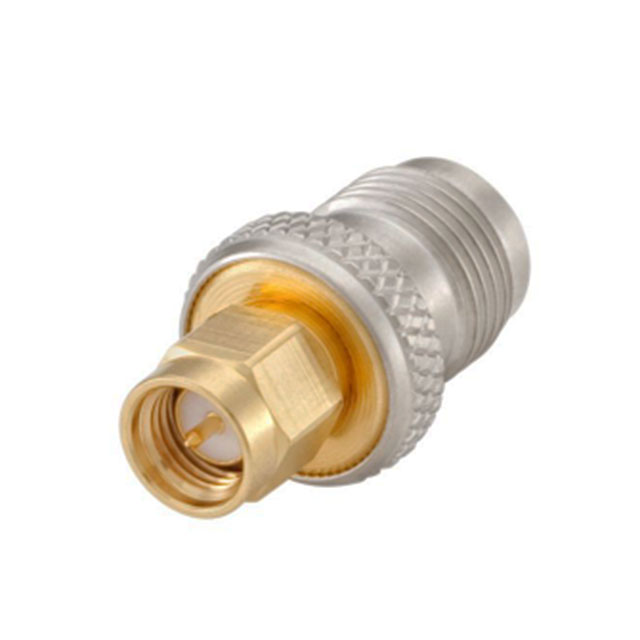

 Rosenberger | -65 ░C | 165 °C | Gold Nickel | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Beryllium Copper Brass | 500 | Gold | Female Socket TNC Jack | 10 GHz | Plug to Jack | Male Pin SMA Plug | Between Series | Straight | Free Hanging (In-Line) | SMA to TNC | 50 Ohms | |

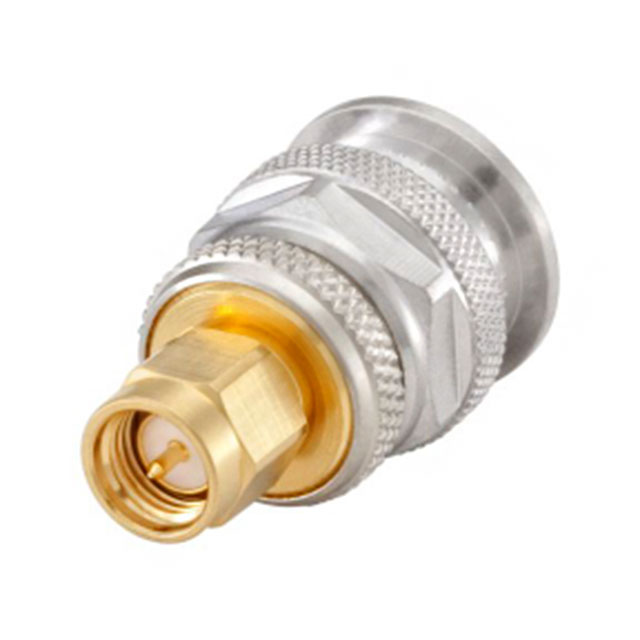

 Rosenberger | -65 ░C | 165 °C | Gold Nickel | Brass | Polytetrafluoroethylene (PTFE) | Beryllium Copper Brass | 500 | Gold | TNC Plug Male Pin | 10 GHz | Plug to Plug | Male Pin SMA Plug | Between Series | Straight | Free Hanging (In-Line) | SMA to TNC | 50 Ohms | Male to Male |
