DCDH Series

Catalog

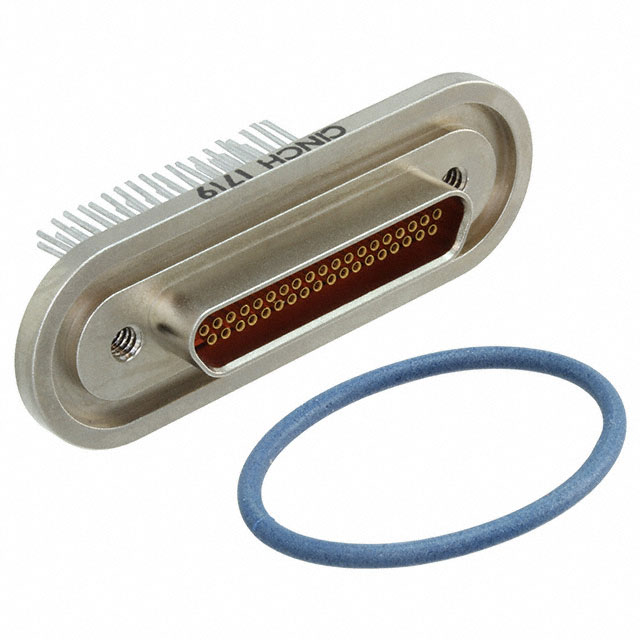

D-SUB MICRO-D CONNECTORS 37WAY SCKET 0.5INCH 24AWG SLD WIRE TAIL

Part	Contact Material	Wire Gauge	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Mounting Type	Connector Type	Contact Type	Connector Style	Termination	Current Rating (Amps)	Contact Finish	Flange Feature	Flange Feature	Material Flammability Rating	Number of Rows [custom]	Ingress Protection	Number of Positions	Number of Positions [custom]
Cinch Connectivity Solutions DCDH-37S4C40.5BN	Copper Alloy	24 AWG	Diallyl Phthalate (DAP) Glass Filled	-55 C	125 °C	50 µin	1.27 µm	Aluminum Alloy Electroless Nickel Plated	Panel Mount	Receptacle Female Sockets	Signal	D-Type Micro-D	Wire Leads	3 A	Gold	Housing/Shell	4-40	UL94 V-0	2	Harsh Environment	37
Cinch Connectivity Solutions DCDH-9P4C40.5BN	Copper Alloy	24 AWG	Diallyl Phthalate (DAP) Glass Filled	-55 C	125 °C	50 µin	1.27 µm	Aluminum Alloy Electroless Nickel Plated	Panel Mount	Plug Male Pins	Signal	D-Type Micro-D	Wire Leads	3 A	Gold	Housing/Shell	4-40	UL94 V-0	2	Harsh Environment	9
Cinch Connectivity Solutions DCDH-31S4C40.5BN	Copper Alloy	24 AWG	Diallyl Phthalate (DAP) Glass Filled	-55 C	125 °C	50 µin	1.27 µm	Aluminum Alloy Electroless Nickel Plated	Panel Mount	Receptacle Female Sockets	Signal	D-Type Micro-D	Wire Leads	3 A	Gold	Housing/Shell	4-40	UL94 V-0	2	Harsh Environment		31
Cinch Connectivity Solutions DCDH-25P4C40.5BN						50 µin	1.27 µm	Aluminum Alloy Electroless Nickel Plated	Panel Mount	Plug Male Pins	Signal	D-Type Micro-D	Wire Leads	3 A	Gold	Housing/Shell	4-40	UL94 V-0	2	Harsh Environment	25
