ANT-I Series
Manufacturer: OptiFuse
Beta
⌘K
FUSE AUTO 4A 32VDC BLADE MICRO
| Part | DC Cold Resistance | Package / Case | Voltage Rating - DC | Fuse Type | Response Time | Approval Agency | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

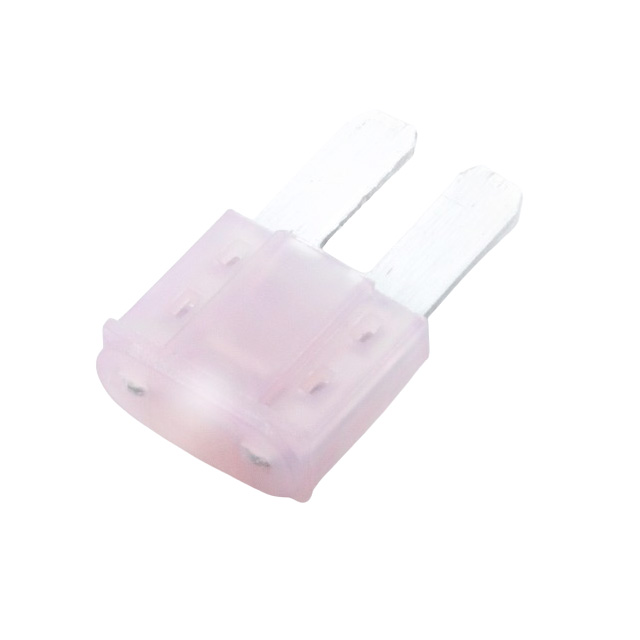

 OptiFuse | 0.023 Ohms | Blade Micro | 32 V | Automotive | Fast Blow | ISO SAE | Requires Holder | 0.358 " | 9.1 mm | 3.8 mm | 0.15 " | 0.311 " | 7.9 mm | 1 kA | 4 A | Pink |

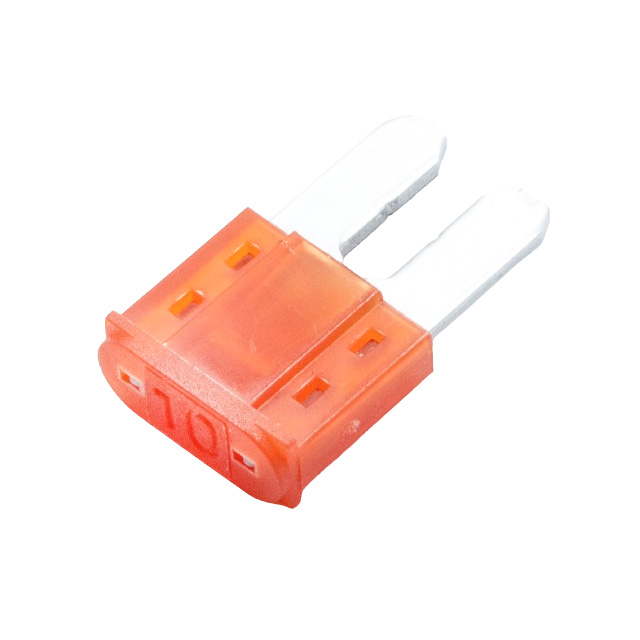

 OptiFuse | Blade Micro | 32 V | Automotive | Fast Blow | ISO SAE | Requires Holder | 0.358 " | 9.1 mm | 3.8 mm | 0.15 " | 0.311 " | 7.9 mm | 1 kA | 10 A | ||

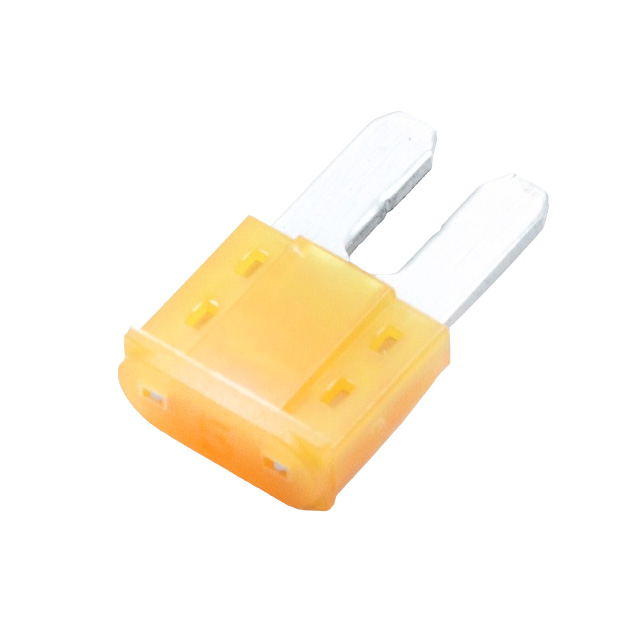

 OptiFuse | Blade Micro | 32 V | Automotive | Fast Blow | ISO SAE | Requires Holder | 0.358 " | 9.1 mm | 3.8 mm | 0.15 " | 0.311 " | 7.9 mm | 1 kA | 5 A | ||

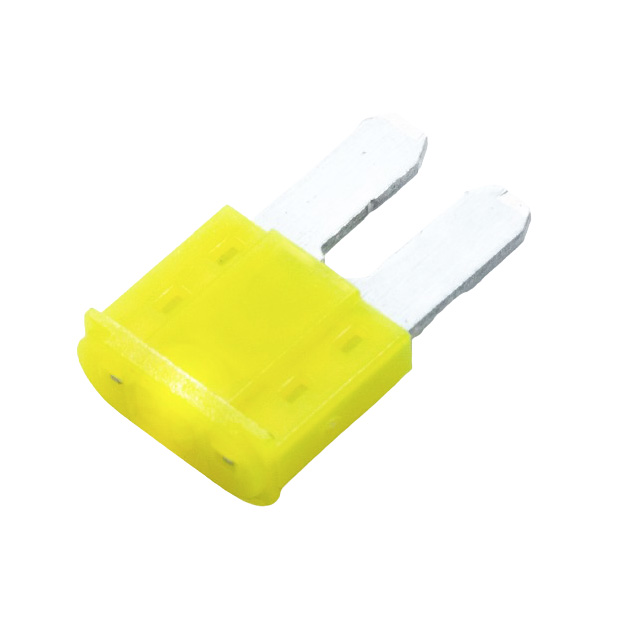

 OptiFuse | Blade Micro | 32 V | Automotive | Fast Blow | ISO SAE | Requires Holder | 0.358 " | 9.1 mm | 3.8 mm | 0.15 " | 0.311 " | 7.9 mm | 1 kA | 20 A | ||

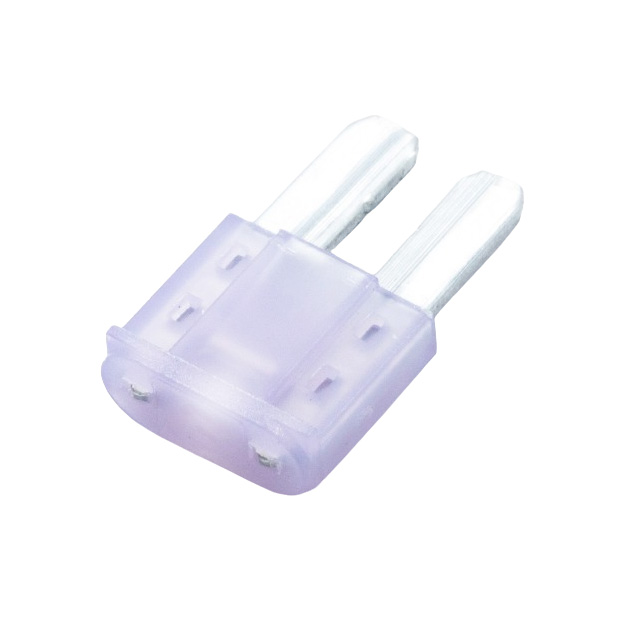

 OptiFuse | 0.31 Ohms | Blade Micro | 32 V | Automotive | Fast Blow | ISO SAE | Requires Holder | 0.358 " | 9.1 mm | 3.8 mm | 0.15 " | 0.311 " | 7.9 mm | 1 kA | 3 A | Violet |

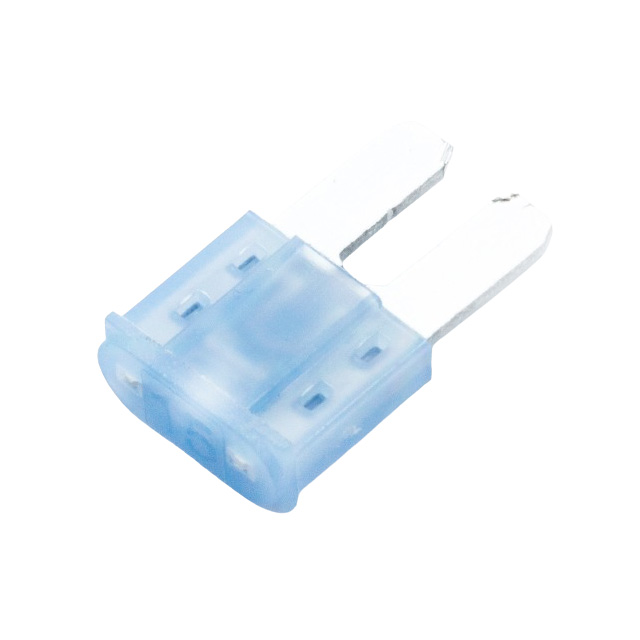

 OptiFuse | Blade Micro | 32 V | Automotive | Fast Blow | ISO SAE | Requires Holder | 0.358 " | 9.1 mm | 3.8 mm | 0.15 " | 0.311 " | 7.9 mm | 1 kA | 15 A | ||

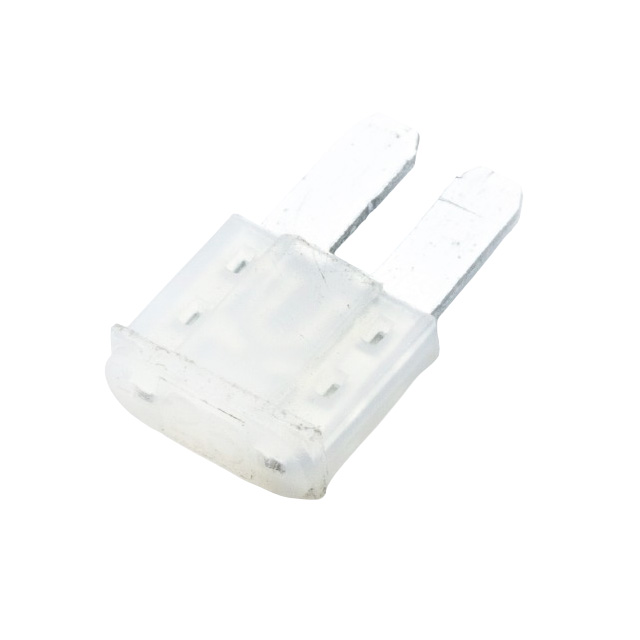

 OptiFuse | Blade Micro | 32 V | Automotive | Fast Blow | ISO SAE | Requires Holder | 0.358 " | 9.1 mm | 3.8 mm | 0.15 " | 0.311 " | 7.9 mm | 1 kA | 25 A |
